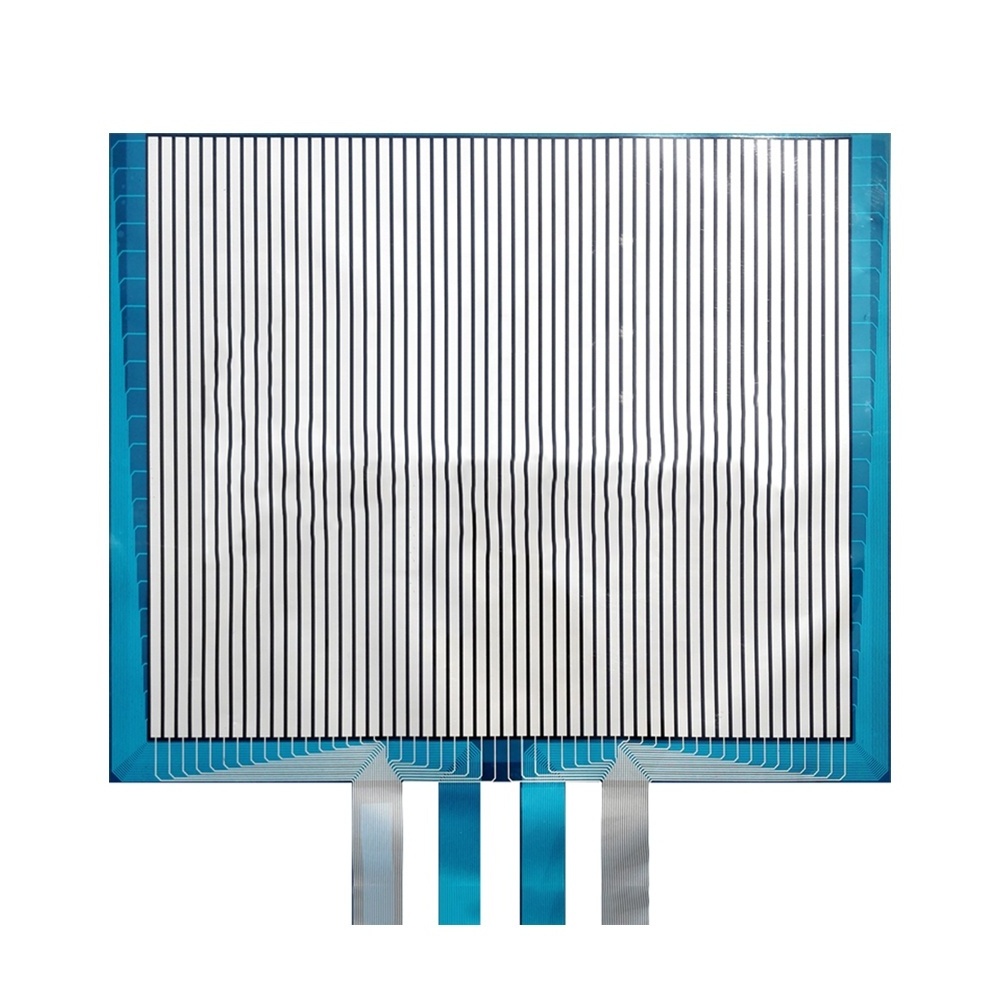

Taidacent FPC Interface Foot Force Distribution Foot Pressure Measurement Flexible Pressure Sensor Array Seat Pressure Sensor
Product Description
|
Size
|
30.5cm * 36.4cm
|
|
Interface
|
FPC
|
|
Leads
|
96
|
|
Rows and columns
|
52 rows and 44 columns
|
|
Induction unit
|
2288
|
|
Application
|
detection of foot, seat, mattress pressure distribution, etc ;
|
Induction zone
A. Number of sensing points: 2288 (44 rows * 52 columns)
B. Number of rows and columns: 44 rows (width) * 52 columns (length)
C, the size of the single-point sensing area is 5mm * 5mm
D. Row and column spacing between electrodes 2mm
Outer package
A. Package size: 40.5cm (width) * 40.5cm (length), including upper sealing edge, wire width and lead length.
B, the size of the sensing area: 30.5cm (width) * 36.4cm (length)
C. Number of signal lines: 96
D. Signal cable lead-out package length: 7cm
Sensor thickness
Thickness: <0.25mm
Signal line interface
A, FPC connection size: line width 0.6mm, line-to-line spacing 0.4mm
B, FPC interface reinforced board thickness: 0.3mm thickened board, length is 4cm
C, FPC interface outlet configuration: a total of 52 on the outside, divided into two groups (single group FPC is 26), with exposed contacts facing up
44 in the middle, divided into two groups (22 in a single group FPC), with the exposed contact side facing up
