Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
950*1400*1750mm
-
Weight:
-
500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
ice lolly filling and package machine
-
Capacity:
-
120-140 bags/min
-
Machine dimension:
-
950*1400*1750mm
-
Making bag size:
-
L:45-150mm,W:35-60mm
-
Power:
-
2.8Kw
-
Film width:
-
Maximum 480mm
-
Machine material:
-
Stainless Steel 304
-
Seal type:
-
4 sides seal/pillow seal
-
Controller:
-
PLC
Quick Details
-
Machinery Capacity:
-
20000BPH
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Water, Juice
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
950*1400*1750mm
-
Weight:
-
500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
ice lolly filling and package machine
-
Capacity:
-
120-140 bags/min
-
Machine dimension:
-
950*1400*1750mm
-
Making bag size:
-
L:45-150mm,W:35-60mm
-
Power:
-
2.8Kw
-
Film width:
-
Maximum 480mm
-
Machine material:
-
Stainless Steel 304
-
Seal type:
-
4 sides seal/pillow seal
-
Controller:
-
PLC

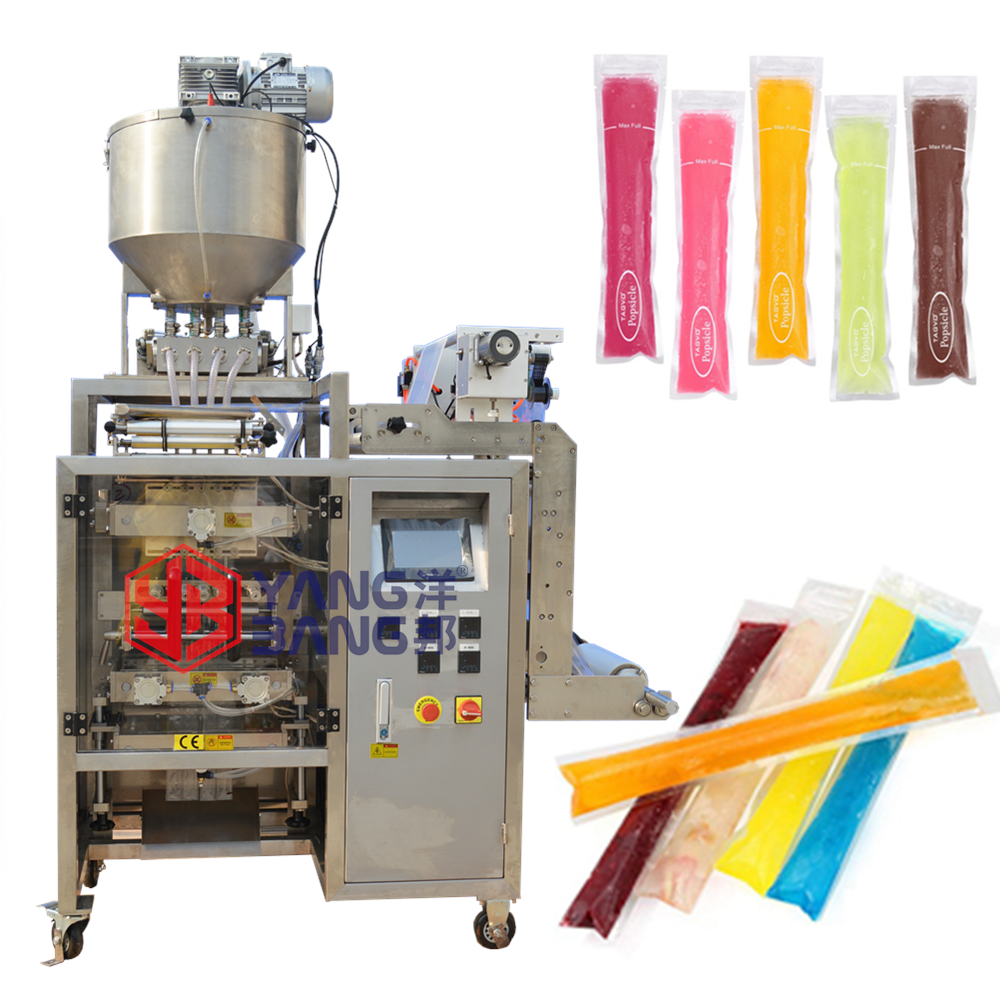

Automatic Ice Pop Plastic Tube Filling and Sealing Packing Machine Ice Lolly Tube Equipment Cheap Price for Sale // +86 13916983251
Machine Function:
1. The machine design adopts Japanese technology, perfect appearance and compact structure.
2. PLC control system, color touch screen, e asy to operat e .
3. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.
4. Perfect automatic alarming protective function, reduce the loss to minimum.
5. This machine matching with measuring device could finish all these work automatically: liquid heating and mixing → piston pump measuring → filling liquid→ counting → bag making → date coding →conveying finished bags .
6. Whole machine body and contact parts are made by 304 stainless steel.
|
Machine model |
YB-480Y-4 |
|
Filling lane number |
4 |
|
Packing speed |
80-140 bags/min |
|
Making bag size |
L: 50-250mm, W: 35-60mm |
|
Maximum film |
480mm |
|
Film thickness |
0.05-0.1mm |
|
Seal type |
4 sides seal |
|
Powder supply |
3.5KW/1N+PE/50HZ/AC220V |
|
Air consumption |
0.8Mpa 0.8m³/min |
|
Machine dimension |
L950*W1470*H1750mm |
|
Net weight |
400kg |
High quality Automatic 4 lanes ice lolly/ popsicle packing machine
Forming bags
Sealing and cutting bags:
Plastic film on machine
Compact structure and pneumstic sealing
