1.Max.printing speed:1200PCS/Hr
2.Power:220V
3.Air pressure:5-7bar
4.max.printing area: 260 MM (the length of circumference and cambered surface) * 200MM (width)
5.Max printing diameter : ￠85 MM
6.Max length of products: 250 MM
7.With CNC color -registration system
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOYSTAR
-
Dimensions(L*W*H):
-
800*700*1300MM
-
Weight:
-
220 KG
-
Certification:
-
CE certificate
-
Type:
-
Cylindrical screen printing machine
-
Application:
-
It is suitable for printing cosmetics,bottles,tubes and etc
-
Printing area:
-
260*200mm
-
Printing diameter:
-
85mm
-
Max length of products:
-
250mm
-
Function:
-
CNC color -registration system
-
Air pressure:
-
5-7bar
-
Max.printing speed:
-
1200PCS/Hr
-
Power:
-
220V
-
Brand:
-
Hoystar
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOYSTAR
-
Dimensions(L*W*H):
-
800*700*1300MM
-
Weight:
-
220 KG
-
Certification:
-
CE certificate
-
Type:
-
Cylindrical screen printing machine
-
Application:
-
It is suitable for printing cosmetics,bottles,tubes and etc
-
Printing area:
-
260*200mm
-
Printing diameter:
-
85mm
-
Max length of products:
-
250mm
-
Function:
-
CNC color -registration system
-
Air pressure:
-
5-7bar
-
Max.printing speed:
-
1200PCS/Hr
-
Power:
-
220V
-
Brand:
-
Hoystar
Products Description
Application

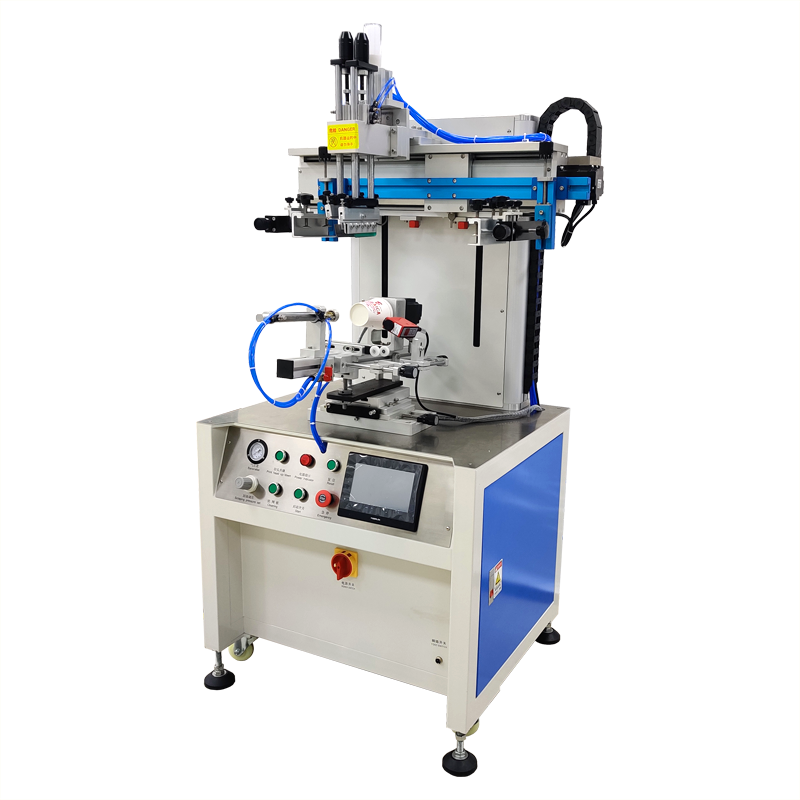

This screen printing machine is a medium size curved screen printer, it can print kinds of products which surface is round,such as bottles,plastic tubes,cups etc. It print fastly with steady quality and lower voice. it is with color-registration eye,so it can do color-registration easily and high precise . It is suitable for printing cosmetics, containers, food packages and other curved products surface
Function
1.mainly produce by Optoocular counterposition system/optical sensor, it is from German brand
2.PLC control system,servo motor.so that these feature will make color register more precision.
3.it can print hard bottle or soft tube.These bottle can color register without fixed point of bottle bottom.
4.with air injection function,like this,it can print the products which material is soft
5. it is with color-registration eye,so it can do color-registration easily and high precise
6.Accuracy or tolerance of the registry is 0.05mm.
2.PLC control system,servo motor.so that these feature will make color register more precision.
3.it can print hard bottle or soft tube.These bottle can color register without fixed point of bottle bottom.
4.with air injection function,like this,it can print the products which material is soft
5. it is with color-registration eye,so it can do color-registration easily and high precise
6.Accuracy or tolerance of the registry is 0.05mm.
Technical parameter
Details Images
CNC Registration eye
