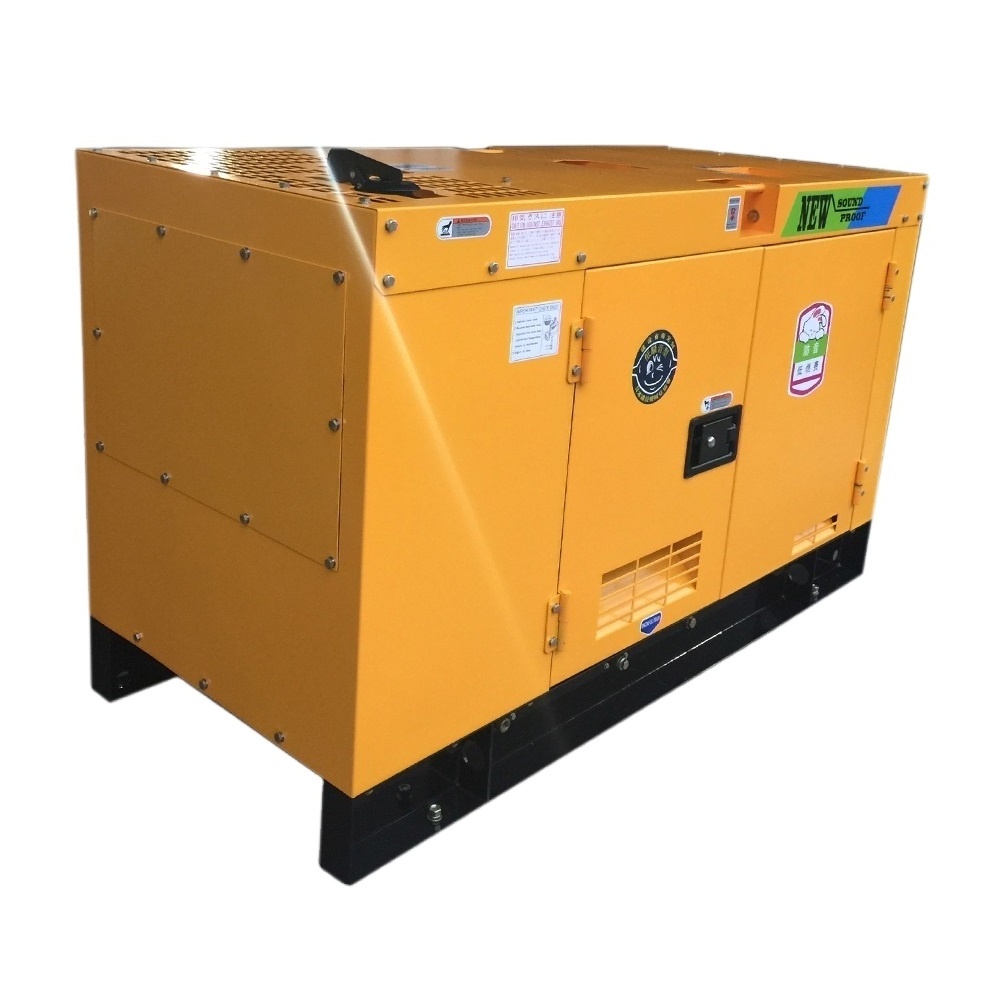

Three phase electric start soundproof canopy powered backup generators

1) Brand-new engine,w/start motor.

2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.

3) Auto control panel with LCD display.

4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.

5) Circuit Breaker,Exhaust Silencer.

6) Copper Radiator for 40℃ ambient temperature and double-deck cooling,with fan guard and front guard.

7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.

8) Skid-mounted bottom 8 hours fuel tank.

9) Extemal recessed emergency stop button for extra safety.

10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

40Kva Quanchai diesel generator

Genset Specification

Genset Model

BQ-40

Prime Power(Kw/Kva)

32\40

Frequency

50Hz

Structure type

Open or Soudproof

Dba"@7m

silent genset 55-78 dba @ 7m , open type75-98 dba @7m

Engine Model

4105D

Alternator Model

STG184J

Open type DimensionL*W*H(mm)

1900x700x900

Weight(Kg)

550

Silent type DimensionL*W*H(mm)

2000x900x1040

Weight(Kg)

650

Engine Detail

Manufacturer

Quanchai engine Co.,Ltd

Model

4105D

Engine speed

1500rpm

Engine power

…………Prime power

38KW(50Hz)

Type

vertical,4 cylinder,in-line,water-cooled,four-stroke

Aspiration

Naturally aspirated

Governor

electrical

Bore*Stroke

105*118mm

Displacement

4.087L

Alternator Detail

Model

STG184J

Output power(Kw/Kva)

32\40

Number of phase

3

Power factor(Cos Phi)

0.8

Number of Pole

4

Exciter type

Shunt

Insulation class

H

Voltage regulation

0.50%

Total haarmonics (TGH/THC)

4%

Wave form:Nema=TIF

50

Wave form:I.E.C=THF

2%

Bearing

single

Coupling

Direct
