Quick Details
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ellsen
-
Model Number:
-
JKL
-
Product name:
-
JKL model hand control 6ton cable pulling winch
-
Rated Loading Capacity:
-
1 ~ 10 ton or Customized
-
Wire rope capacity:
-
20 ~ 500m or Customized
-
Sling type:
-
Cable or wire rope
-
Control:
-
Remote switch
-
Motor:
-
China top brand motor
-
Color:
-
Yellow,Blue or Customized
-
Certification:
-
CE,ISO9001,OHSAS
-
Power supply:
-
220V/230V/240V/380V/415V/440V,50Hz/60Hz,Single or three phase
Quick Details
-
Power Source:
-
Electric
-
Application:
-
Crane,boat,construction building
-
Capacity:
-
10~100kN
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ellsen
-
Model Number:
-
JKL
-
Product name:
-
JKL model hand control 6ton cable pulling winch
-
Rated Loading Capacity:
-
1 ~ 10 ton or Customized
-
Wire rope capacity:
-
20 ~ 500m or Customized
-
Sling type:
-
Cable or wire rope
-
Control:
-
Remote switch
-
Motor:
-
China top brand motor
-
Color:
-
Yellow,Blue or Customized
-
Certification:
-
CE,ISO9001,OHSAS
-
Power supply:
-
220V/230V/240V/380V/415V/440V,50Hz/60Hz,Single or three phase

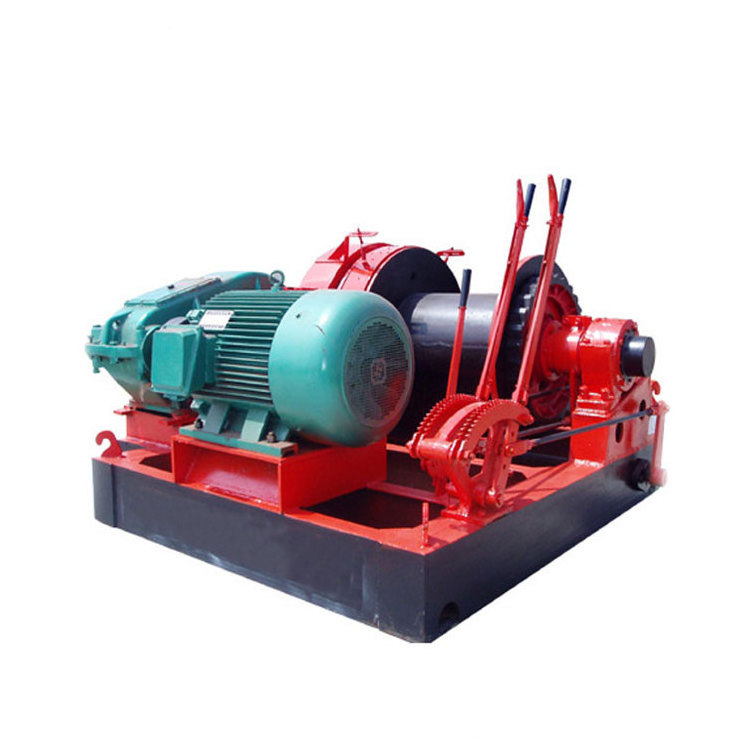

JKL model hand control 6ton cable pulling winch
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor type | Motor power | Overall Dimensions | Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| JKL2 | 20 | 30 | 150 | 13 | Y180L-6 | 15 | 1370 1650 1210 | 1200 |
| JKL3 | 30 | 30 | 200 | 15 | Y200L-6 | 22 | 1690 1740 1200 | 1800 |
| JKL5 | 50 | 30 | 250 | 21 | Y225S-6 | 37 | 2300 2100 1650 | 3000 |
| JKL6 | 60 | 36 | 250 | 24 | Y280S-6 | 45 | 2350 2100 1650 | 3200 |
| JKL8 | 80 | 29 | 250 | 26 | Y280M-6 | 55 | 2440 2500 1800 | 5500 |
| JKL10 | 100 | 29 | 250 | 28 | Y315S-6 | 75 | 2590 2540 1800 | 5800 |
| General description |
JKL series electric winch is a kind of fast speed humping lifting equipment.JKL electric winch also called pile winch ,widely used mine,construction factroy, used to vertical lifting.
Especially used in bridge dock construction base engineering freefall punching piling operation.
|
| Specific details |
1.Loading capacity:1~10 ton or customized design; 2.Wire rope capacity:20~500m or customzied design; 3.Working speed:20~36m/min or customized design; 4.Power supply:220~690V,50/60HZ,three phase or customized design . |
| Application |
1.Construction building; 2. Road and bridge construction ; 3.Factory,mines engineer,harbor,etc. |
| Advantage and feature |
1. Light aluminum shell ; 2. Electromagnetic brake ; 3. Electromagnetic contact or ; 4. 24V/36V transformer device ; 5. Hot forging with perfect strength chain; 6. Hook is constructed of anti-pull and heat-treated steel and heat-treated steel . |
| Warm tips |
Normally,we need your confirm below info.: 1.Loading capacity?(Ton/kN)2.Working speed?(m/min) 3.Wire rope length?(m) 4.Power supply? (220V/230V/380V/400V/415V/440V,single or three phase.Or customized design according to your demands) 5.Where does it used? 6.What does the winch use for? (For horizontally pulling or vertically lifting? ) 7.QTY?(set) 8.FOB or CIF price?(If CIF price,tell us your nearest destination port.) 9.Any other special demands? |
