Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
xindali
-
Model Number:
-
LW126-160
-
Max. Current:
-
100A
-
Mechanical Life:
-
10000 Cycles
-

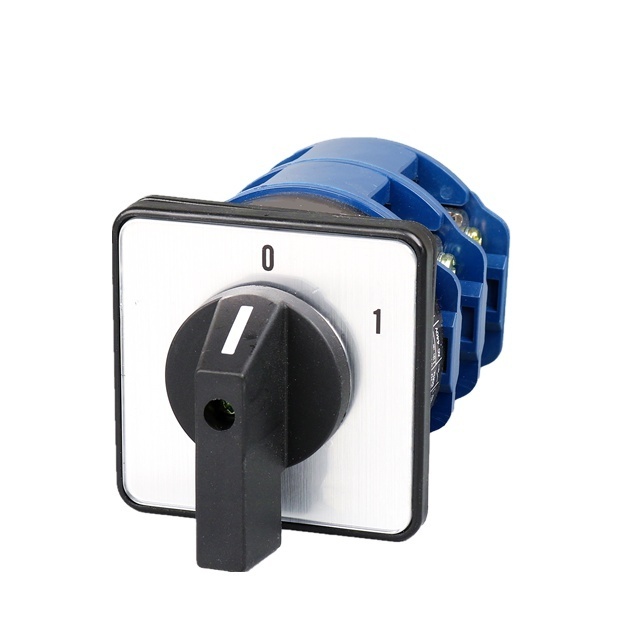

Product Name:
-
Rotary Selector Switch
-
Color:
-
Blue
-
Position:
-
1~12 Positions
-
Material:
-
Metal
-
Electrical life:
-
100000 Cycles
-
Certification:
-
CQC CE ROHS ISO9001
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
500V DC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
xindali
-
Model Number:
-
LW126-160
-
Max. Current:
-
100A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
Rotary Selector Switch
-
Color:
-
Blue
-
Position:
-
1~12 Positions
-
Material:
-
Metal
-
Electrical life:
-
100000 Cycles
-
Certification:
-
CQC CE ROHS ISO9001
Product Description
Product Application
Main switch are ON--OFF switches to isolated the power to a particular area of operation.According to ICE/EN6024 or VDE0113,all electrical equipments of industrial machines must be equipped with a main switch.This must permit disconnection of all the elecrical equipment during cleaning,maintenance and repair work,and other extended periods when is stationary.Main switch can be used for switching and controlling main circuits,motor ON-OFF and other special application circuits,such as illimination equipments,heating equipments and motors,Their high on-off ability ensure the work reliability of frequently making and breaking.
|
Specification
|
LW126-20
|
|
|
|
|||
|
|
LW126-20X
|
|
|
|
|||
|
|
LW126-20C
|
|
|
|
|||
|
Rated insulation voltage
|
660/690
|
|
|
|
|||
|
Rated working current
|
20
|
|
|
|
|||
|
Rated working voltage
|
24
|
110
|
240
|
440
|
|||
|
Rated working current
|
|
|
|
|
|||
|
AC-21A
|
/
|
/
|
20
|
20
|
|||
|
AC-23A
|
/
|
/
|
15
|
15
|
|||
|
AC-2
|
/
|
/
|
15
|
15
|
|||
|
AC-3
|
/
|
/
|
11
|
11
|
|||
|
AC-4
|
/
|
/
|
3.5
|
3.5
|
|||
|
AC-15
|
/
|
/
|
5
|
4
|
|||
|
DC-13
|
12
|
0.4
|
0.4
|
/
|
|||
|
Power
|
|
|
|
|
|||
|
AC-23A
|
/
|
/
|
3.7/2.5
|
7.5/3.7
|
|||
|
AC-2
|
/
|
/
|
4
|
7.5
|
|||
|
AC-3
|
/
|
/
|
3/2.2
|
5.5/3
|
|||
|
AC-4
|
/
|
/
|
0.55/0.75
|
1.5/1.5
|
|||
Use environment
