dual 10" top and 18" 12" Punchy Subs Passive Neodymium Line Array kit professional audio line array system

FOB Reference Price: Get Latest Price
≥8 Pieces
US $300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
PLAM
Model Number:
VA-SUB
Dimension (L x W x H):
700*W830*H606mm
Product Name:
Line array subwoofer
Size:
Singel 18 inch/12 inch
Rated power:
800W
Peak power:
2400W
Components:
LF 18"x1+12"x1
Sensitivity:
129 dB
Max SPL:
142 dB
Impedance:
8 ohm
Frequency range:
60Hz-200Hz
Color:
Black

Quick Details

Power:
800W
Frequency Range (Hz):
60Hz-200Hz
Place of Origin:
Guangdong, China
Brand Name:
PLAM
Model Number:
VA-SUB
Dimension (L x W x H):
700*W830*H606mm
Product Name:
Line array subwoofer
Size:
Singel 18 inch/12 inch
Rated power:
800W
Peak power:
2400W
Components:
LF 18"x1+12"x1
Sensitivity:
129 dB
Max SPL:
142 dB
Impedance:
8 ohm
Frequency range:
60Hz-200Hz
Color:
Black
Recommend Products
Products Description

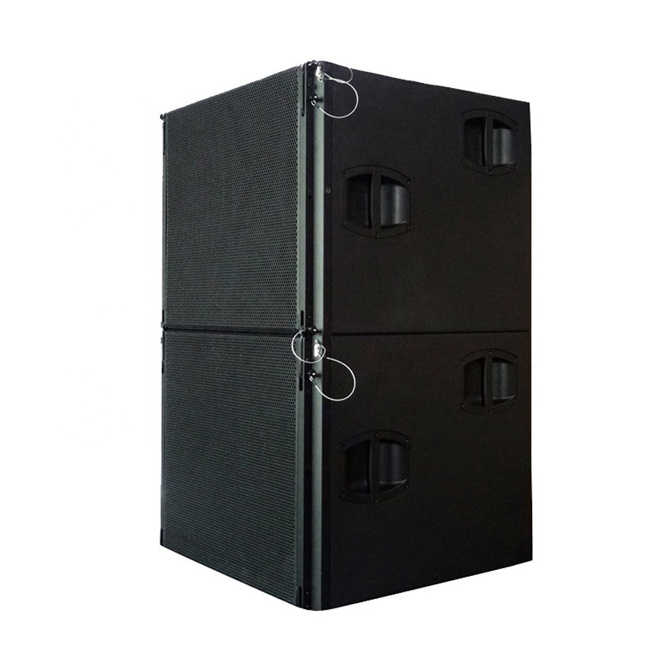

dual 10" top and 18" 12" Punchy Subs Passive Neodymium Line Array kit professional audio line array system
High performance 3-way passive line array loudspeaker
The VA8 is a 3-way passive design housing 2 x 10" LF drivers, one hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 80° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in
columns of purely VA8 loudspeakers or combined with VA12s and / or with VA-SUBs. The VA8 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.
Application:
- Touring/living show
-Stadium
-Church
-Hall
-Theater
-Bars
-other middle/large scale installation

Model no.:
VA8
VA-SUB
Product name:
Dual 10 inch line array
Single 18/12 inch subwoofer
Rated power:
500W
800W
Peak power:
2000W
2400W
Components:
LF2*10"/MF1*8”/HF2*1.5" vc
LF:18"*1+12"*1
Sensitivity:
139dB
129 dB
Max SPL:
142 dB
142 dB
Impedance:
8 ohm
8 ohm
Frequency range:
67Hz-18KHz
60Hz-200Hz
Connection:
2*NL4
2*NL4
Cabinet material:
Plywood
Plywood
Dimension:
310*700*460mm
700×W830×H606mmmm
Color:
Black
Black

The normal package is yellow strong carton.

If you prefer more proteciton,you can choose the flight case,too.

PLAM--Transfer music by heart!
Persistent in seeking the perfect music! Guangzhou Paklam Audio Equipment Factory was established in 2009 and has been devoting itself to manufacture and sale the audio sound facilities for over 13 years.The products include:professional speaker、KTV speaker、amplifier、PA system and the accessories covering in hotel、auditorium、meeting room、gymnasium、gallery、KTV room、bar、art museum and other public place.
Over the years,we made full use of the community resources,unleased our advantage for forming our own unique product architecture.We do believe that not only can be satisfied with your auditory sense but coming into the world for your trust、delight and taste for every product.“Developing PLAM into the global well-known audio sound brand”is all the PLAM personnels’s final aim!Make arduous efforts and composing a spirit sound shows that Chinese consumer electronics brand will cover all the world indeed!
