Quick Details
-
Brand Name:
-
SODOWELL
-
Model Number:
-
LS-2806-601
-
Contact Form:
-
Normally Open /NO
-
Max. Contact Rating:
-
10W
-
Max. Switching Voltage:
-
100V
-
Max. Carrying Current:
-
0.5A
-
Working temperature:
-
25 ~80
-
Installation:
-
Vertical install or top mounted
-
Product:
-
magnetic float switch
-
Material:
-
Plastic, PP
-
Application:
-
airconditioner, humidifier, dehumidifier,cooler
-
usage:
-
low or high level control
Quick Details
-
Grade:
-
DIY
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SODOWELL
-
Model Number:
-
LS-2806-601
-
Contact Form:
-
Normally Open /NO
-
Max. Contact Rating:
-
10W
-
Max. Switching Voltage:
-
100V
-
Max. Carrying Current:
-
0.5A
-
Working temperature:
-
25 ~80
-
Installation:
-
Vertical install or top mounted
-
Product:
-
magnetic float switch
-
Material:
-
Plastic, PP
-
Application:
-
airconditioner, humidifier, dehumidifier,cooler
-
usage:
-
low or high level control

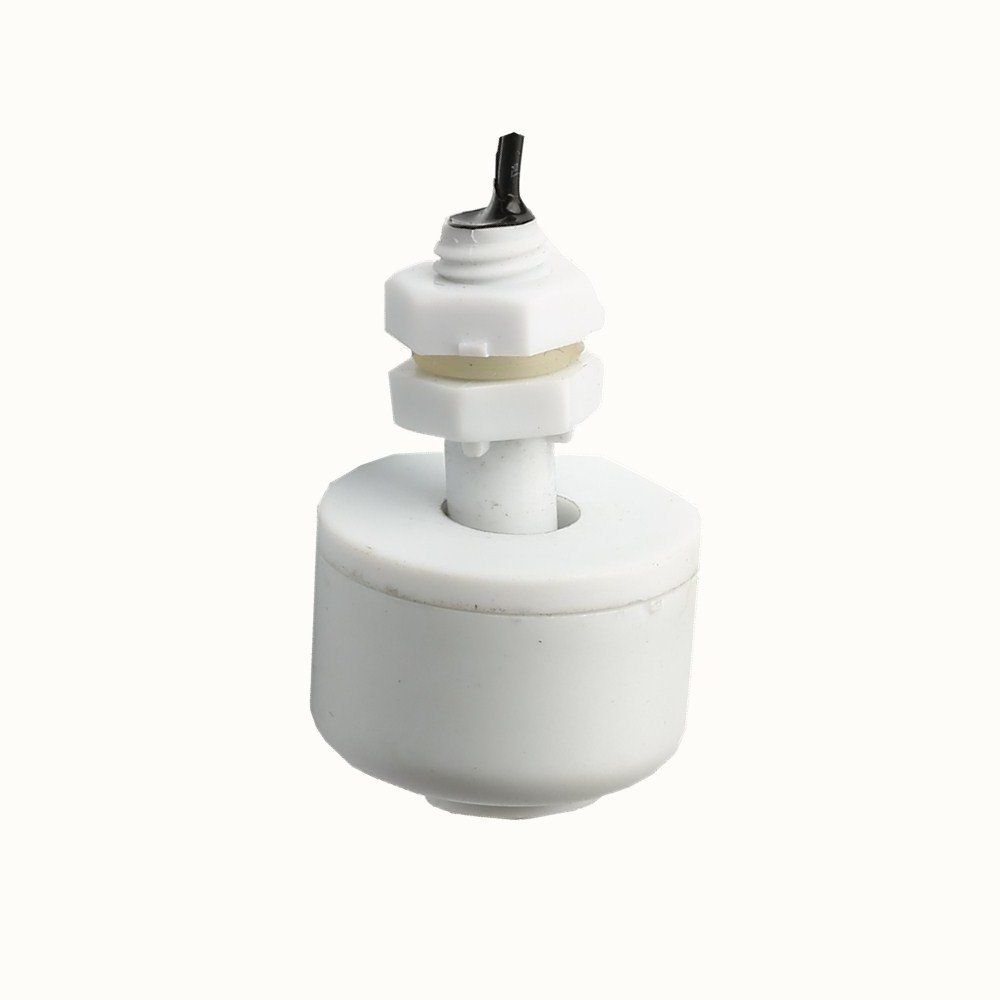

SODOWELL Plastic water tank float switch/vertical float switch/magnetic float switch
| Float switch pictures |
Suggested use voltage: 24VDC, please use this voltage if possible.
Note:
Because the current that the switch can carry is much little(0.5A), Pls Don't connect to DC 220V/110V directly, you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
Pls don't connect the float switch to solenoid valve, motor directly, it may damage the switch. Use parallel connection to protect the switch.
Max Switching Voltage: 100V-220V DC; Max Switching Current: 0.5A /0.7A; Max Contact Resistance: 100m ohm. Effective water level 52mm/2.047"
SODOWELL float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. It can be easily converted from normally open to normally close by inverting the float.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. But our carton can be customized according to your demands.
Q2. What is your terms of payment?
A: Order below 10000USD is T/T 100% in advance .
Order over 10000USD T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products
and packages before you pay the balance.
Sample order we can support : PAYPAL , WERTERN UNION and Alipay.
Q3. Which port is near ?
Yantian ,shenzhen ,china .
Q4. How about your delivery time?
A: Generally, it will take 1 to 3 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
