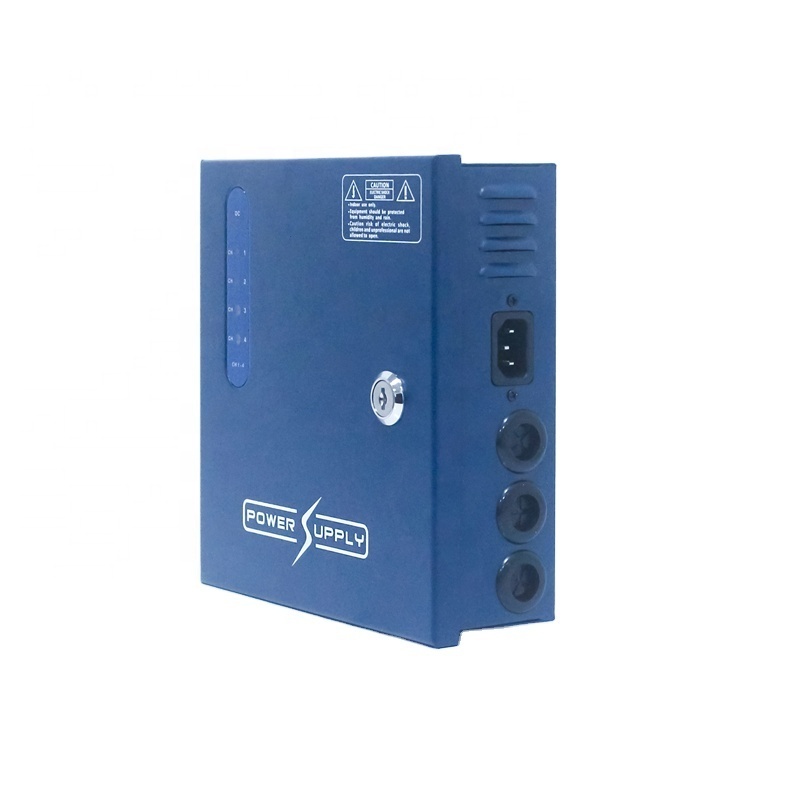

With royal blue baking finished shell, this professional centralized power supply is mainly applied to HD Camera, DVR and other devices which requiring stabilized voltage 12VDC. External patented LED indicators to show the working condi"on of each output. If total power is over 120W, built in PFC (Power Factory Correc"on) to improve efficiency. This series provide a professional, safe and easy installation, no interference and high efficiency power system.
- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-
CCTV power supply box
-
Application:
-
Analog Camera & DVR; Access control lock and alarm system
-
Working temperature:
-
-40~85℃
-
Input:
-
96-264VAC, 47-63Hz
-
Output:
-
4 outputs, 11-15VDC, 5A
-
Protections:
-
Short Circuit,surge protection etc
-
Efficiency:
-
PFC function,PTC refuse, 86%
-
Certificate:
-
CE RoHS ISO9001 FCC
-
Warranty:
-
1 year
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
Folksafe
-
Model Number:
-
KAS-DC120405
-
Product Name:
-
CCTV power supply box
-
Application:
-
Analog Camera & DVR; Access control lock and alarm system
-
Working temperature:
-
-40~85℃
-
Input:
-
96-264VAC, 47-63Hz
-
Output:
-
4 outputs, 11-15VDC, 5A
-
Protections:
-
Short Circuit,surge protection etc
-
Efficiency:
-
PFC function,PTC refuse, 86%
-
Certificate:
-
CE RoHS ISO9001 FCC
-
Warranty:
-
1 year
Product Description
-
Product performance description
|
Product Name
|
CCTV Power Supply Box
|
|
Model
|
KAS-DC120405
|
|
Input
|
96-264VAC, 47-63Hz
|
|
Output
|
4 outputs, 11-15VDC, 5A
|
|
Function
|
AC-DC multi-channel power supply box with 12VDC
mainly apply to devices like Analog Camera & DVR
|
|
Application
|
-Analog Camera & DVR.
-Access control lock and alarm system.
-Landscape light strip.
|
|
Advantage
|
-Full AC input 96-264VAC---fit for all market and situation
-Voltage adjustable 11-15V---to avoid voltage reduction
-LED indicator on the front shell
-Acrylic protective cover---safety design, we use acrylic protective cover to avoid AC --touching
-Anti- interference---no noise on screen
-PFC function
-use all Brand New Materials
-All products are certified with CE, FCC, RoHS
|
|
Model No.
|
DV Voltage
|
Output Amps
|
Channels
|
|
KAS-DC120405
|
12VDC
|
5A
|
4-CH
|
|
KAS-DC120908
|
12VDC
|
8A
|
9-CH
|
|
KAS-DC120910
|
12VDC
|
10A
|
9-CH
|
|
KAS-DC121612
|
12VDC
|
12A
|
16-CH
|
|
KAS-DC121820
|
12VDC
|
20A
|
18-CH
|
|
KAS-DC121832
|
12VDC
|
32A
|
18-CH
|
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up "me is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up "me.
7. Integrated power supply system, when there is one channel over current, the PTC goes shortcut or glass fuse blow, this does not affect other channels. when over current fault is removed, PTC resumes automa"cally or replace broken glass fuse by hand, and this channel recovered to normal working state. When the peak load of the unit reaches 150% and delivers for over 1 second, it enters hiccup mode and recovers once rated current lower than 150%.
8. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500Q).
Details Images
-
Brand new components.
Use robust metal case, import famous brand MOS, Chips, Transformer, and long life capacitor;
-
Brand new components.
Produced strict by CE standard
-
PCB fireproof
-PFC function unit fit Europe efficiency, it's can improve efficiency higher
Product Usage
-
Description of product use effect
Switch power supply are widely used in industrial automatic control system,instruments and apparatus,large screen display,computer equipment,anti-theft system,medical equipment,military industry and so on.
For example,LED display,3D printer,drones,cash register,CCTV system and AFC(Automatic Fare Collection) all need switch power supply.
Packing&Shipping
Company Introduction
Kasman under the Folksafe is a professional manufacturer focus on designing and producing Power Supply (AC-DC, AC-AC) and Transmission products.
The Power Supply is mainly fit for security field like devices Analog Camera, DVR, Access Control and other electronics products which need 12VDC, 13.8VDC, 27.6VDC, 24VAC etc.
KASMAN focus on middle-high quality level with CE FCC ROHS certificates, good perfermance and low defective rate. Also we can offer our partner suitable solution based on their specified need, ODM and OEM support.
Product Series includes: Distribution Power Box - general , Distribution Power Box - with battery charger, power adapter, PoE power Supply, Rack Mount Power Supply etc.
Our Services & Strength
Within the guarantee period.Defective pcs of production, we replace new pcs with customer’s next order.
Defective pcs damaged from application, we’ll suggest repairing instruction and provide spare components at discount price. Other technical question, will reply within 8 hours and solve no more than 72 hours.
