Quick Details
-
Definition:
-
1080P usb camera module
-
Max Resolution & Frame:
-
1920*1080 60fps
-
Exellent night vision:
-
0.01Lux
-
Lens & View Angle:
-
3.7mm Pinhole Lens F1.2/90°
-
Dimensions(LXWXH) and Weight:
-
32*32mm 105g
-
Power Supply:
-
DC 5V camera module usb
-
System:
-
Windows 2000 XP VISTA Win7 Linux Mac ps3, Android
-
Video Out:
-
USB 2.0 interface 1.0V p-p/75ohm
-
Cable Length:
-
micro mini usb camera module
-
Feature:
-
usb camera module
-
Video Compression Format:
-
YUY2 MJPEG
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HDVscope
-
Model Number:
-
HDV-USB200M32-W-P3.7
-
Definition:
-
1080P usb camera module
-
Max Resolution & Frame:
-
1920*1080 60fps
-
Exellent night vision:
-
0.01Lux
-
Lens & View Angle:
-
3.7mm Pinhole Lens F1.2/90°
-
Dimensions(LXWXH) and Weight:
-
32*32mm 105g
-
Power Supply:
-
DC 5V camera module usb
-
System:
-
Windows 2000 XP VISTA Win7 Linux Mac ps3, Android
-
Video Out:
-
USB 2.0 interface 1.0V p-p/75ohm
-
Cable Length:
-
micro mini usb camera module
-
Feature:
-
usb camera module
-
Video Compression Format:
-
YUY2 MJPEG

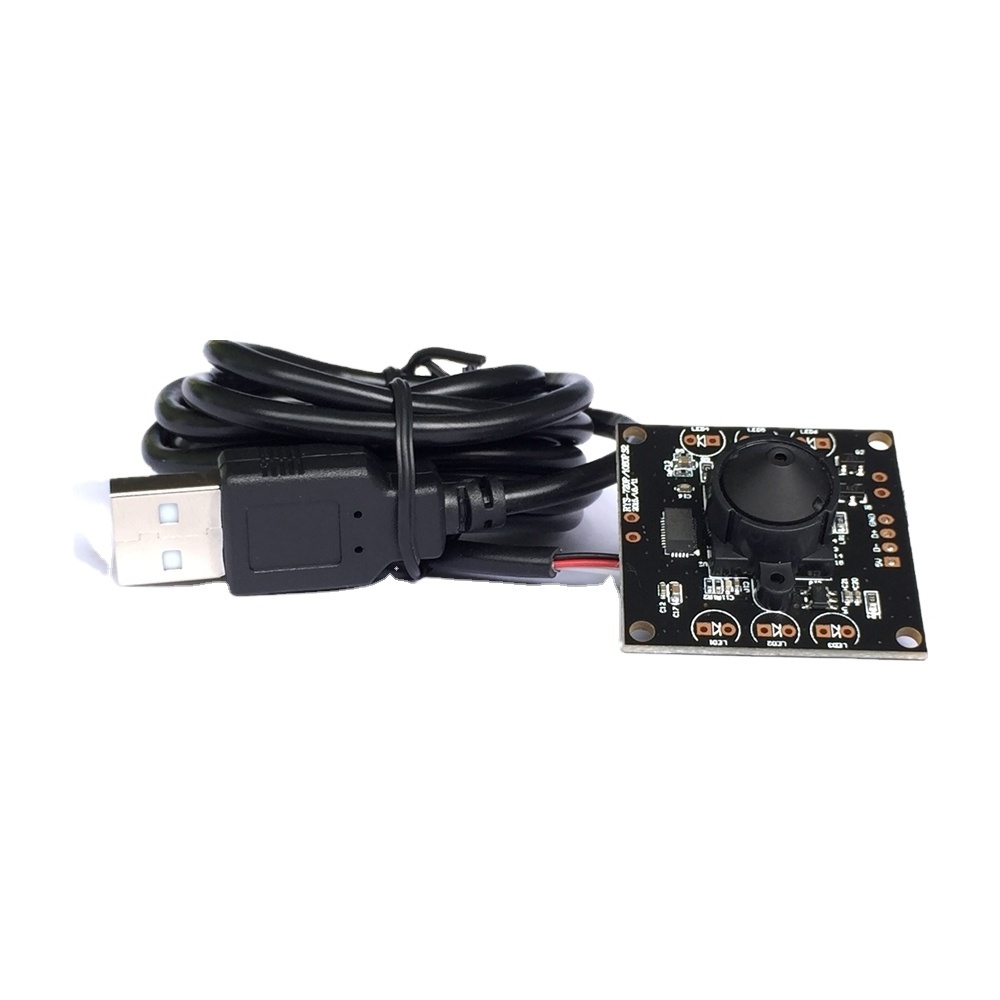

This USB camera design for Intelligent machines,special Kiosk , VTM, CRS, ATM or other Intelligent machine, mini shell, easy for install in all of models ATM, USB cable length optional, Provide driver for shooting and recording under MS Windows XP system, USB connector can be connected with PC directly, megapixel Sony CMOS chipset, metal casing, support long time non-stop working, available with wide angle board lens or lens (more than 130 degrees) to get wide angle view.
Order Symbol:
- HDV-USB1080MP32-W-P3.7 1080P USB Camera with 3.7mm Pinhole Lens
- HDV-USB1080MP32-W-P2.8 1080P USB Camera with 2.8mm Pinhole Lens
Features:
- Image sensor 1/2.7" AR0230 CMOS, 0.01Lux, Full HD1080P i mage, Superior low-light performance, Linear or high dynamic range capture, High- speed configurable context switching.
- Audio Optional
- Free Driver USB 2.0 (UVC)
- USB2.0 HIGH SPEED, compression USB1.1
- Default setting (60fps@1920*1080)
- Manual focus
- View angle: 15-170 degree optional
- Compression YUY2 & MJPEG
- Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
- Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
- Standard 1.8m cable, Can be connected through 10 meters USB cable
- Dimension:32*32mm
- USB Power: 5V±10%DC,50mA
- Used:intelligent machine,especially Banks'ATM
- Can be customized by your requirements
| Pixels | Resolution | MJPEG(Optional) | YUY2 | |
| 2.0MP | HDTV | 1920(H) x 1080 (V) | 30fps | 6fps |
| 2.0MP | 1280(H) x 1024 (V) | 30fps | 6fps | |
| 2.0MP | 1024(H) x 768 (V) | 30fps | 9fps | |
| 2.0MP | 720P | 1280(H) x 720 (V) | 60fps | 9fps |
| 2.0MP | SVGA | 800(H) x 600 (V) | 60fps | 21fps |
| 2.0MP | VGA | 640(H) x 480 (V) | 120fps | 30fps |
| 2.0MP | 352(H) x 288 (V) | 120fps | 30fps | |
| 2.0MP | QVGA | 320(H) x 240 (V) | 120fps | 30fps |
|
USB
Series |
Model |
HDV-USB1080MP32-W-P3.7 1080P USB Camera with 3.7mm Pinhole Lens HDV-USB1080MP32-W-P2.8 1080P USB Camera with 2.8mm Pinhole Lens |
| Name | USB Mini Camera | |
| Camera | Image sensor | 1/2.7" CMOS Sensor |
| Resolution | 1080P (1920*1080 pixels) , 30fps no smear | |
| Min.Illumination | 0.01Lux | |
| Lens Standard | 3.7mm Pinhole lens F1.2/90° | |
| Effective Pixels |
1920*1080(1080P)1280*720 pixels(720P); 1024×768 pixels(XGA); 800×600pixels(SVGA); 640×480 pixels(VGA); 320×240 pixels(QVGA); |
|
| Syetem |
Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;Linux(In 2.6.18 above the kernel version);Mac ps3;
Android System |
|
| S/N ratio | More then 48 dB (AGC Off) | |
| Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
| White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
| Gamma Characteristic | Auto r>=0.45 | |
| Manual Function | White Balance, Brightness,Contrast,Hue,Saturation,Gain | |
| Miscellaneous | Mirror / Flip / Back Light / Flickerless | |
| Cable Length: | 0.8m, 1-10m for optional purchase-USD0.5/m | |
|
Industrial
Standard |
Power source | DC 5V (3.6-5V) / 80mA (USB Power) |
| Operating current | 85mA | |
| Operating Temperature | -20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing) | |
| Interface Type | USB format(Complies with USB 2.0) | |
| Measurement (mm) | 32*32mm | |
| Weight (Approx.g) | 110g | |
| Accessories | Free | Brackets *1,Screw *2,Cable *1,Manul book *1 |
Packing List:
1pc cctv camera
1set screws
1pc manual
1pc color box
Single Size: 95*65*55mm(LXWXH)
