Quick Details
-
Processing speed:
-
0-4000mm/minute
-
Table maximum load:
-
15kg
-
Material:
-
Stainless steel tailgate
-
XYZ axis torque:
-
57*78 250 OZ/IN (2.2N/CM)
-
Working precision:
-
0.02mm
-
A-axis B-axis rotation speed:
-
0-180 rpm/min
-
Switching Power Supply:
-
Integrated 24V 350W
-
Tailgate material:
-
Stainless steel
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Effective Stroke:
-
600x400x150mm
-
Repeat positioning accuracy:
-
0.01mm
-
Processing speed:
-
0-4000mm/minute
-
Table maximum load:
-
15kg
-
Material:
-
Stainless steel tailgate
-
XYZ axis torque:
-
57*78 250 OZ/IN (2.2N/CM)
-
Working precision:
-
0.02mm
-
A-axis B-axis rotation speed:
-
0-180 rpm/min
-
Switching Power Supply:
-
Integrated 24V 350W
-
Tailgate material:
-
Stainless steel
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE

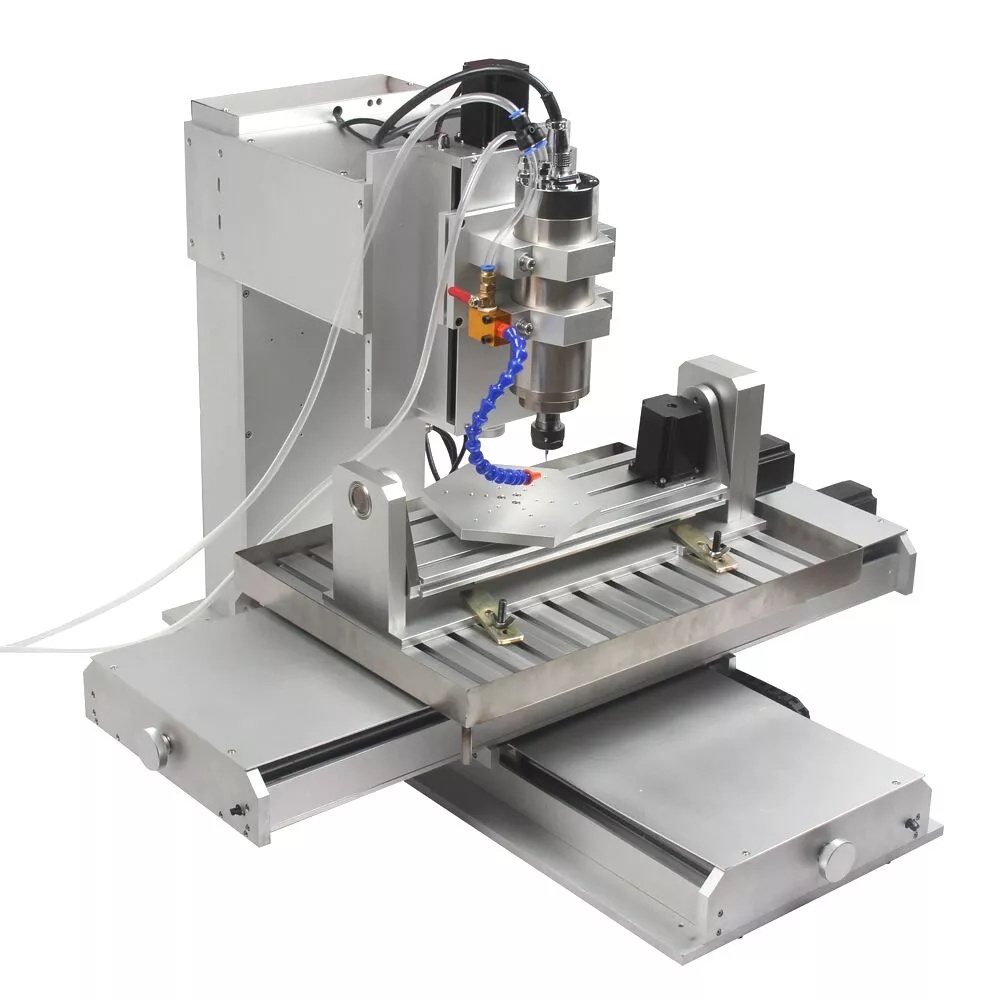

USB port cnc milling machine 5 axis mini CNC 6040
Easy operating because:
-
It can work with 3 axis / 4 axis / 5 axis, just as you like !
- Independent high-speed micro computer intelligent controller.
- Independent drivers for each axis.
- Mach 3 software USB connection
- Upgraded with more stable structure than old type
-
Built in frequencey converter and without controller box.
Higher precision because:
- Cross slippery platform design rather than gantry design.
- Aluminum base sheet is heavy which can make sure less vibration when work.
- With auto-checking function.
-
1500/2200w water-cooled spindle.
- Ball screw
- Stainless Steel sink for bits cooling
You can buy this machine from us without any worry because:
- CE approved.
- Video support.
- English manual available.
- Mach 3 software send with the machine as a CD.
-
Can engrave material which hardness below 45.
- From reliable & trustable profesional China CNC Router manufacturer
| Voltage |
220V/110V |
|
Dimension(L*W*H) |
970*810*790mm |
|
Effective Stroke |
600x400x(150)mm |
|
Repeat positioning accuracy |
0.01mm |
|
Processing speed |
0-4000mm/minute |
|
Table maximum load |
15kg |
|
Material |
Stainless steel tailgate |
|
Output Current: |
Drive 4.5A (peak 5A) |
|
A-axis B-axis rotation speed
|
0-180rpm/min |
| Net Weight | 75kg |
| Outside Package | 110*90*56cm |
This Low cost available cheap cnc milling machine 5 axis 6040 Can be widely used as below:
A USB port cnc milling machine .
