Quick Details
-
Core Components:
-
Precision
-
Product name:
-
High Precision Tool Holder Iso20 Tool For Cnc Iso 20 Spindle
-
Materials:
-
20CrMnTi
-
Tool holder tolerance:
-
<0.002mm
-
Hardness:
-
>HRC55°+2
-
Integral clamping runout:
-
≤0.005mm
-
Carburized depth:
-
>0.8mn
-
Surface roughness:
-
>0.8mn
-
Roundness:
-
<0.8μm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WARWICK
-
Model Number:
-
ISO20-ER16-35MS
-
Core Components:
-
Precision
-
Product name:
-
High Precision Tool Holder Iso20 Tool For Cnc Iso 20 Spindle
-
Materials:
-
20CrMnTi
-
Tool holder tolerance:
-
<0.002mm
-
Hardness:
-
>HRC55°+2
-
Integral clamping runout:
-
≤0.005mm
-
Carburized depth:
-
>0.8mn
-
Surface roughness:
-
>0.8mn
-
Roundness:
-
<0.8μm
High Precision Tool Holder Iso20 Tool For Cnc Iso 20 Spindle
Product Description
| Model No. | L | L1 | L2 | D | d | |
| ISO20 | ER16-35MS | 68.3 | 35 | 26.2 | 22 | 1~10 |
| ISO25 | ER16-35MS | 74.7 | 35 | 26.2 | 22 | 1~10 |
| ER20-35MS | 74.7 | 35 | 26.2 | 28 | 1~13 | |
| ISO30 | ER16-60MS | 107.8 | 60 | 40.9 | 22 | 1~10 |
| ER20-60MS | 107.8 | 60 | 40.9 | 28 | 1~13 | |
| ER25-42MS | 89.8 | 42 | 22.9 | 35 | 3~16 | |
Production Features:
1. ISO20 ISO25-Balanced to 40,000 RPM at G2.5
2. Certified for accuracy and balance .
3. Rentention knob is included, the wrenches need purchase separately.

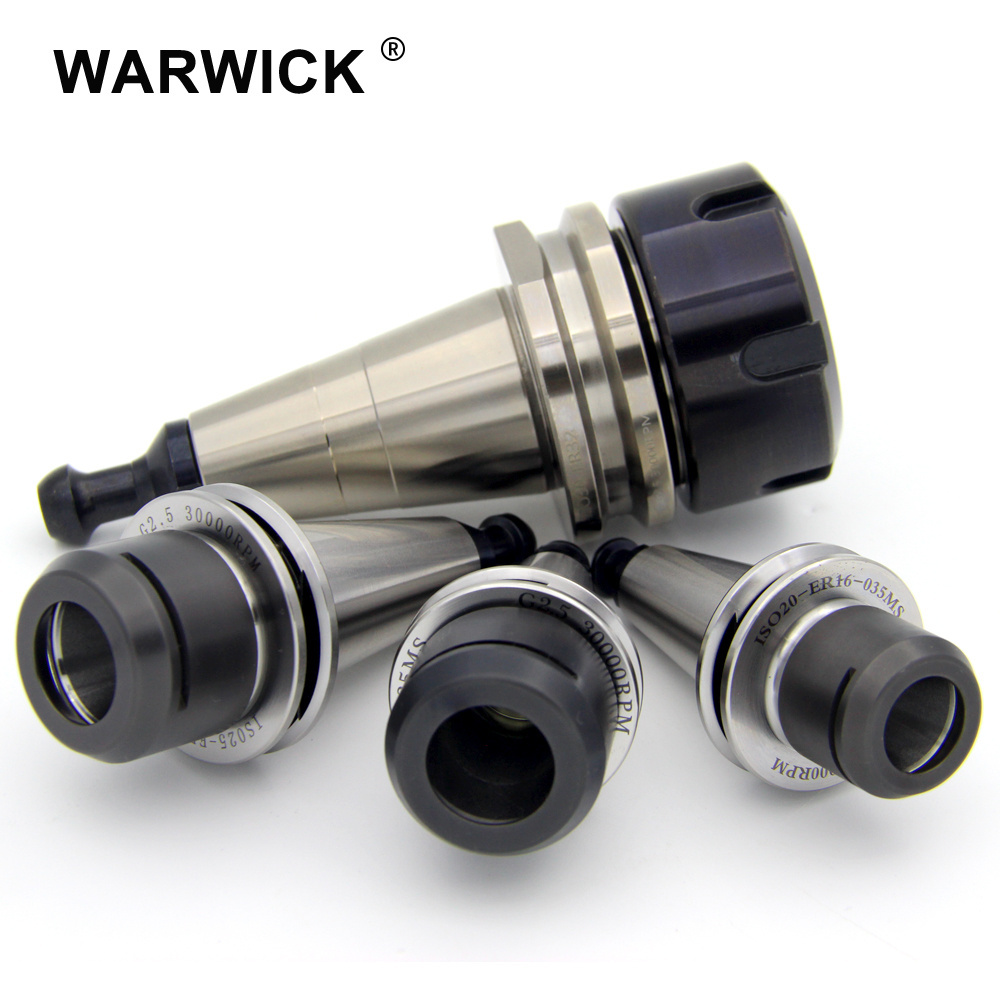

Product Show
