Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BOE
-
Resolution:
-
1366(RGB)*768 [WXGA] 49PPI
-
Product Name:
-
LCD monitor display HV320WHB-N85
-
Body Size:
-
715 * 411 mm (H*V*D)
-
Panel type:
-
Liquid crystal glass, a-Si TFT-LCD
-
Contrast Ratio:
-
1200 : 1 (Typ.)
-
Frequency:
-
60Hz
-
Visual Angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Signal interface:
-
LVDS (1 ch, 8-bit) , terminal , 30 pins
Quick Details
-
Type:
-
TFT
-
Display Size:
-
32inch, 697.685 * 392.256 mm (H*V)
-
Supplier Type:
-
lcd panel
-
Place of Origin:
-
China
-
Brand Name:
-
BOE
-
Resolution:
-
1366(RGB)*768 [WXGA] 49PPI
-
Product Name:
-
LCD monitor display HV320WHB-N85
-
Body Size:
-
715 * 411 mm (H*V*D)
-
Panel type:
-
Liquid crystal glass, a-Si TFT-LCD
-
Contrast Ratio:
-
1200 : 1 (Typ.)
-
Frequency:
-
60Hz
-
Visual Angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Signal interface:
-
LVDS (1 ch, 8-bit) , terminal , 30 pins
Product Description
HV320WHB-N85 is a 32.0-inch LCD glass product with a-Si TFT-LCD technology launched by BOE Technology Group Co., Ltd. (BOE), which has no backlight, no touch, and has been bonded 2 source chips driver IC. According to the product specification Rev.P2 released by BOE (BOE) on October 11, 2017, the HV320WHB-N85 has a display resolution of 1366 (RGB) ×768 (WXGA), an aspect ratio of 16:9 (width:height), and pixels are arranged in RGB vertical strips. It has a display area size of 697.685×392.256 (width × height) mm, an appearance size of 715×411 (width × height) mm, a matte finish (Haze 1%), a hard coating (3H), and a net weight of 910g (Typ.). This product has no backlight. The HV320WHB-N85 adopts LVDS (1 ch, 8-bit) signal interface, a total of 30 pins, terminal connection, and a drive screen voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. Its working temperature is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C. Due to its matte surface and other characteristics, this model is recommended for TVs.
Specification
|
Item
|
Value
|
|
Type
|
TFT
|
|
Display Size
|
32 inch
|
|
Supplier Type
|
lcd panel
|
|
Place of Origin
|
China
|
|
Brand Name
|
BOE
|
|
Resolution
|
1366(RGB)×768 [WXGA] 49PPI
|
|
Product Name
|
HV320WHB-N85
|
|
Body Size
|
715 × 411 mm (H×V×D)
|
|
Panel type
|
Liquid crystal glass, a-Si TFT-LCD
|
|
Contrast Ratio
|
1200 : 1 (Typ.)
|
|
Frequency
|
60Hz
|
|
Signal interface
|
LVDS (1 ch, 8-bit) , terminal , 30 pins
|

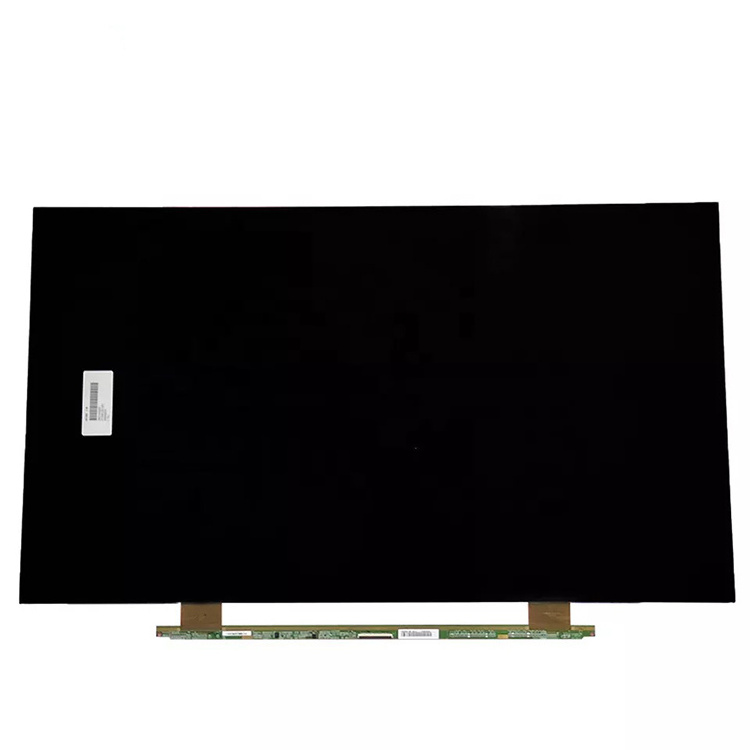

Product photos
Packing & Delivery
Standard export packing
Other Hot Sale Models
Application
Our products can be used in PC, TV, digital signage, industrial, medical, conference etc.
