- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZT-Mesh belt
-
Product name:
-
polyester plain mesh belt
-
Feature:
-
Simple Operation
-
Usage:
-
paper making
-
Belt Types:
-
polyester conveyor belt
-
Packing:
-
Wooden Case
-
sample:
-
offer
-
delivery:
-
5days
-
Size:
-
Customarized
-
After Warranty Service:
-
Online support
Quick Details
-
Weight (KG):
-
0.8
-
Core Components:
-
Mesh belt
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZT-Mesh belt
-
Product name:
-
polyester plain mesh belt
-
Feature:
-
Simple Operation
-
Usage:
-
paper making
-
Belt Types:
-
polyester conveyor belt
-
Packing:
-
Wooden Case
-
sample:
-
offer
-
delivery:
-
5days
-
Size:
-
Customarized
-
After Warranty Service:
-
Online support
Polyester mesh conveyor belt
Our main products including Polyester plain weave mesh belt, Polyester f
orming fabric mesh
, Polyester sludge dewatering Belt, Polyester spiral conveyor belt, Polyester sludge dewatering belt, Polyester vacuum filter belt(
Polyester desulfurzation filter belt）
, Polyester dryer fabrics and Polyester wire Mesh and so on,

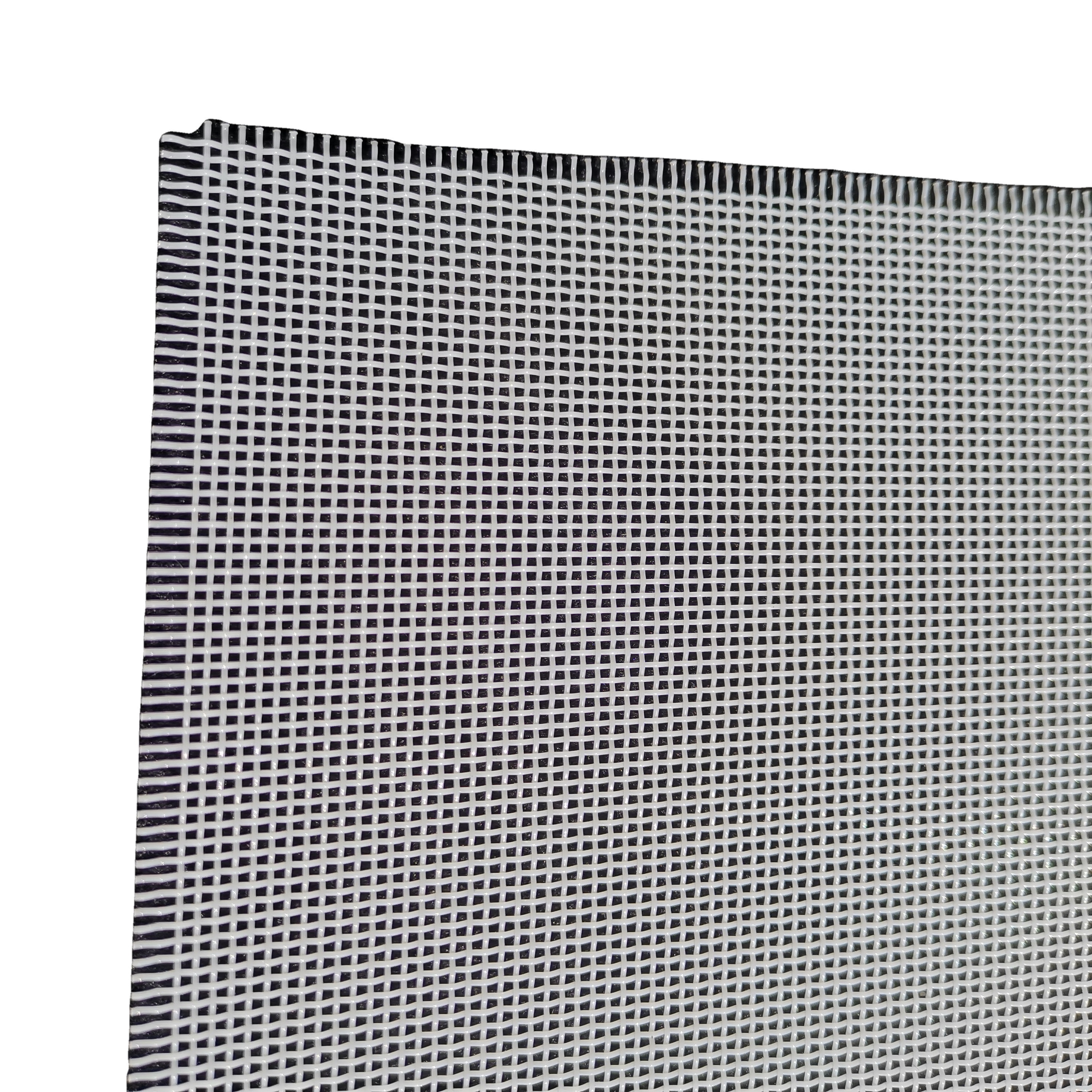

Now we main introduce the polyester plain weave mesh.The second and third heald flat woven polyester mesh series products are mainly used in the paper industry to produce pulp board,packaging paper and liner board, but also in the production of high density board, food drying, feed drying, fruit and vegetable conveying drying Sludge dehydrator, concentration and other filtration industries.
Material Properties
1) Excellent chemical, thermal and high permeability for ease of cleaning.
2) Material:100% polyester.
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions (polyester can suffer from hydrolysis in hot, humid conditions, typically in the presence of steam).
1) Excellent chemical, thermal and high permeability for ease of cleaning.
2) Material:100% polyester.
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions (polyester can suffer from hydrolysis in hot, humid conditions, typically in the presence of steam).
Specification Sheet
|
Model of Fabrics
|
Thread Dia.
(mm) |
|
Density
Root/10cm |
|
Strength
(N/cm) |
Air Permeability
(m3/m2h) |
||
|
|
Warp
|
Weft
|
Warp
|
Weft
|
Surface
|
|
||
|
03902
|
0.90
|
0.90
|
3.14
|
3.14
|
≥1650
|
20000±500
|
||
|
05802
|
0.80
|
0.80
|
5.1
|
5.3
|
≥1700
|
15840±500
|
||
|
06802
|
0.80
|
0.80
|
6.6
|
6.5
|
≥1650
|
11600±500
|
||
|
06702/Blue/White
|
0.70
|
0.70
|
6.3
|
6.3
|
≥1800
|
11000±500
|
||
|
07802/Blue/White
|
0.80
|
0.80
|
7.8
|
7
|
≥1800
|
7000±500
|
||
|
09502
|
0.50
|
0.50
|
8.85
|
8.46
|
≥1850
|
10100±500
|
||
|
12502
|
0.50
|
0.50
|
13.5
|
8.5
|
≥1900
|
6500±500
|
||
|
09452
|
0.45
|
0.45
|
10
|
8.6
|
≥1900
|
15570±500
|
||
|
08603
|
0.50
|
0.60
|
9.4
|
9
|
≥1950
|
9000±500
|
||
|
07903
|
0.80
|
0.80
|
7.48
|
6.69
|
≥1950
|
6400±500
|
||
|
122702
|
0.25
|
0.27
|
11.8
|
10.6
|
≥2000
|
5600±500
|
||
|
163502
|
0.40
|
0.35
|
16
|
13
|
≥2100
|
5500±500
|
||
Products Description
|
Product name
|
Character
|
Application
|
|
Polyester Plain Weave Mesh Belt
|
Acid and alkali resistant,high temperature resistance, hydrolysis resistance
|
Paper industry ,food drying, feed drying, fruit and vegetable conveying drying Sludge dehydrator, concentration and other filtration industries.
|
|
Polyester Forming Fabric Belt
|
Polyester forming fabric are divided into four single-layer nets, five single-layer nets, eight single-layer nets, eight
double-layer nets,sixteen double and half layers nets, and twenty-four three-layer nets. |
Water filter for forming part in paper machine
|
|
Polyester spiral dryer mesh belt
|
Large air permeability,smooth mesh surface, can be detached at will, good strength and long service life. The special material spiral dry network also has the characteristics of high temperature resistance, high wear resistance and aging resistance.
|
Paper making, coal mining, food, medicine, printing and dyeing and rubber products industries, and can also be used as conveyor belt and composite machine supporting mesh belt.
|
|
Polyester Spiral Press Filter Belt
|
The spiral pressure filter belt is to add filler wire into the spiral ring to reduce the air permeability and reduce the loss of material on the mesh surface.
|
Solid-liquid separation industries such as papermaking, printing and dyeing, food, pharmaceutical, ceramics and sludge dewatering.
|
|
Polyester sludge dewatering belt
|
Breathable and water-impermeable materials (sludge), strong acid and alkali resistance,high temperature resistance 180 degrees.
|
It is also called polyester press filter belt, which is suitable for press filter industry such as
municipal sludge, paper mill pulp press, juice press, smelter and mine tailings dry discharge. |
|
Polyester desulfurzation filter belt
(Polyester vacuum filter belt)
|
Vacuum filter mesh belt has the characteristics of stable operation, not easy to wrinkle, high filtration accuracy, and good filter cake peelability.
|
Power plant wet desulfurization, mine tailings dry discharge, metallurgy, chemical industry, coal chemical industry, food,
pharmaceutical and environmental protection. |
|
Polyester Anti-static Fabrics Belt
|
Principle: The equipment using polyester mesh will generate static electricity during high-speed operation.By passing conductive fiber into the polyester mesh, the static electricity can be discharged to play an anti-static effect.
|
Environmental protection, high-density board production, rubber, chemical industry, chemical fiber, dry paper making industry.
|
Our product detail
Polyester Plain Weave Mesh Belt
Polyester Forming Fabric Belt
Polyester spiral dryer mesh belt
Polyester Spiral Press Filter Belt
Polyester sludge dewatering belt .
Polyester desulfurzation filter belt(Polyester vacuum filter belt)
Polyester Anti-static Fabrics Belt with black wire
Polyester Anti-static Fabrics Belt with pure copper wire
Manufacturing Technique
Product package
