Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
FR188Z flanged ball bearing
-
Seals Type:
-
ZZ 2RS OPEN
-
Place of Origin:
-
Shandong, China
-
Product name:
-
flanged miniature ball bearing
-
Material:
-
chrome steel,stainless steel
-
Application:
-
electrial machine used
-
material:
-
Nylon,chrome steel,stainless steel
-
Package:
-
Tube Package
-
Feature:
-
long life,high speed
-
Certificate:
-
ISO9001:2008
-
Lubrication:
-
oil, grease, dry
-
samples:
-
inch size bearing samples free
-
service:
-
OEM accept
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Bore Size:
-
1 - 5 mm
-
Precision Rating:
-
P0 P6 P5 P4 P2
-
Number of Row:
-
Single row
-
Model Number:
-
FR188Z flanged ball bearing
-
Seals Type:
-
ZZ 2RS OPEN
-
Place of Origin:
-
Shandong, China
-
Product name:
-
flanged miniature ball bearing
-
Material:
-
chrome steel,stainless steel
-
Application:
-
electrial machine used
-
material:
-
Nylon,chrome steel,stainless steel
-
Package:
-
Tube Package
-
Feature:
-
long life,high speed
-
Certificate:
-
ISO9001:2008
-
Lubrication:
-
oil, grease, dry
-
samples:
-
inch size bearing samples free
-
service:
-
OEM accept

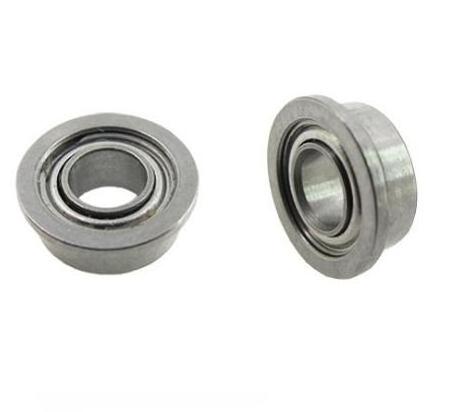

high speed flange bearing FR188 R188 stainless steel bearing FR188ZZ
The flange miniature deep groove ball bearing, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, flangeminiature deep groove ball bearings are suitable for high speeds.
Radial and axial load capacity Due to the raceway geometry and the balls used as rolling elements, flange miniature deep groove ball bearings can support axial loads in both directions as well as radial loads.
Compensation of angular misalignments The angular adjustment facility of single row flange miniature deep groove ball bearings is limited, so the bearing positions must be well aligned. Misalignments can lead to unfavourable ball running and induce additional loads In the flange miniature bearing that shorten the operating life. In order to keep these loads at a low level, only small adjustment angles are permissible (dependent on the load) for single row flange miniature deep groove ball bearings .
Product model:
| Model | Frange Diameter (D1) | Width(b) | Width of flange(c) | Cr(N) | Cor(N) | Permit Speeding | ||||||
| (d) | (D) | open | zz | open | zz | open | zz | Grease | Oil | |||
| *1000rpm | ||||||||||||
| F682zz | 2 | 5 | 6.1 | 1.5 | 2.3 | 0.5 | 0.6 | 169 | 50 | 85 | 100 | |
| MF52zz | 2 | 5 | 6.2 | 2 | 2.5 | 0.6 | 0.6 | 169 | 50 | 85 | 100 | |
| F692zz | 2 | 6 | 7.5 | 2.3 | 3 | 0.6 | 0.8 | 330 | 99 | 75 | 90 | |
| MF62zz | 2 | 6 | 7.2 | 2.5 | 2.5 | 0.6 | - | 330 | 99 | 75 | 90 | |
| MF72zz | 2 | 7 | 8.2 | 2.8 | 3 | 0.6 | 0.6 | 386 | 129 | 63 | 75 | |
| F602zz | 2 | 7 | 8.5 | 2.8 | 3.5 | 0.7 | 0.9 | 386 | 129 | 60 | 71 | |
| F682Xzz | 2.5 | 6 | 7.1 | 1.8 | 2.6 | 0.5 | 0.8 | 209 | 74 | 71 | 80 | |
| F692Xzz | 2.5 | 7 | 8.5 | 2.5 | 3.5 | 0.7 | 0.9 | 386 | 129 | 63 | 75 | |
| MF82X | 2.5 | 8 | 9.2 | 2.5 | - | 0.6 | - | 558 | 180 | 60 | 67 | |
| F602Xzz | 2.5 | 8 | 9.5 | 2.8 | 4 | 0.7 | 0.9 | 552 | 177 | 60 | 71 | |
| MF63zz | 3 | 6 | 7.2 | 2 | 2.5 | 0.6 | 0.6 | 209 | 74 | 71 | 80 | |
| F683zz | 3 | 7 | 8.1 | 2 | 3 | 0.5 | 0.8 | 311 | 112 | 63 | 75 | |
| MF83zz | 3 | 8 | 9.2 | 2.5 | 3 | 0.6 | - | 395 | 141 | 60 | 67 | |
| F693zz | 3 | 8 | 9.5 | 3 | 4 | 0.7 | 0.9 | 558 | 180 | 60 | 67 | |
| MF93zz | 3 | 9 | 10.2 | 10.6 | 2.5 | 4 | 0.6 | 0.8 | 571 | 189 | 56 | 67 |
| F603zz | 3 | 9 | 10.5 | 3 | 5 | 0.7 | - | 571 | 189 | 56 | 67 | |
| F623zz | 3 | 10 | 11.5 | 4 | 4 | 1 | 1 | 631 | 219 | 50 | 60 | |
| MF74zz | 4 | 7 | 8.2 | 2 | 2.5 | 0.6 | 0.6 | 255 | 108 | 60 | 67 | |
| MF84zz | 4 | 8 | 9.2 | 2 | 3 | 0.6 | 0.6 | 395 | 141 | 56 | 67 | |
| F684zz | 4 | 9 | 10.3 | 2.5 | 4 | 0.6 | 1 | 641 | 227 | 53 | 63 | |
| MF104zz | 4 | 10 | 11.2 | 11.6 | 3 | 4 | 0.6 | 0.8 | 711 | 272 | 48 | 56 |
| F694zz | 4 | 11 | 12.5 | 4 | 4 | 1 | 1 | 957 | 350 | 48 | 56 | |
| F604zz | 4 | 12 | 13.5 | 4 | 4 | 1 | 1 | 957 | 350 | 48 | 56 | |
| F624zz | 4 | 13 | 15 | 5 | 5 | 1 | 1 | 1301 | 488 | 40 | 48 | |
| F634zz | 4 | 16 | 18 | 5 | 5 | 1 | 1 | 1340 | 523 | 36 | 43 | |
| MF85zz | 5 | 8 | 9.2 | 2 | 2.5 | 0.6 | 0.6 | 218 | 90 | 53 | 63 | |
| MF95zz | 5 | 9 | 10.2 | 2.5 | 3 | 0.6 | 0.6 | 431 | 169 | 50 | 60 | |
| MF105zz | 5 | 10 | 11.2 | 11.6 | 3 | 4 | 0.6 | 0.8 | 431 | 169 | 50 | 60 |
| MF115zz | 5 | 11 | 12.5 | - | 4 | 0.8 | 1 | 716 | 282 | 45 | 53 | |
| F685zz | 5 | 11 | 12.5 | 3 | 5 | 0.8 | 1 | 716 | 282 | 45 | 53 | |
| F695zz | 5 | 13 | 15 | 4 | 4 | 1 | 1 | 1077 | 432 | 43 | 50 | |
| F605zz | 5 | 14 | 16 | 5 | 5 | 1 | 1 | 1329 | 507 | 40 | 50 | |
| F625zz | 5 | 16 | 18 | 5 | 5 | 1 | 1 | 1729 | 675 | 36 | 43 | |
| F635zz | 5 | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2336 | 896 | 32 | 40 | |
| MF106zz | 6 | 10 | 11.2 | 2.5 | 3 | 0.6 | 0.6 | 496 | 218 | 45 | 53 | |
| MF126zz | 6 | 12 | 13.2 | 13.6 | 3 | 4 | 0.6 | 0.8 | 716 | 295 | 43 | 50 |
| F686zz | 6 | 13 | 15 | 3.5 | 5 | 1 | 1.1 | 1082 | 442 | 40 | 50 | |
| F696zz | 6 | 15 | 17 | 5 | 5 | 1.2 | 1.2 | 1340 | 523 | 40 | 45 | |
| F606zz | 6 | 17 | 19 | 6 | 6 | 1.2 | 1.2 | 2263 | 846 | 38 | 45 | |
| F626zz | 6 | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2336 | 896 | 32 | 40 | |
| MF117zz | 7 | 11 | 12.2 | 2.5 | 3 | 0.6 | 0.6 | 455 | 202 | 43 | 50 | |
| MF137zz | 7 | 13 | 14.2 | 14.6 | 3 | 4 | 0.6 | 0.8 | 541 | 276 | 40 | 48 |
| F687zz | 7 | 14 | 16 | 3.5 | 5 | 1 | 1.1 | 1173 | 513 | 40 | 50 | |
| F697zz | 7 | 17 | 19 | 5 | 5 | 1.2 | 1.2 | 1605 | 719 | 36 | 43 | |
| F607zz | 7 | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2336 | 896 | 36 | 43 | |
| F627zz | 7 | 22 | 25 | 7 | 7 | 1.5 | 1.5 | 3287 | 1379 | 30 | 36 | |
| MF128zz | 8 | 12 | 13.2 | 13.6 | 2.5 | 3.5 | 0.6 | 0.8 | 543 | 274 | 40 | 48 |
| MF148zz | 8 | 14 | 15.6 | 3.5 | 4 | 0.8 | 0.8 | 817 | 386 | 38 | 45 | |
| F688zz | 8 | 16 | 18 | 4 | 5 | 1 | 1.1 | 1252 | 592 | 36 | 43 | |
| F698zz | 8 | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2237 | 917 | 36 | 43 | |
| F608zz | 8 | 22 | 25 | 7 | 7 | 1.5 | 1.5 | 3293 | 1379 | 34 | 40 | |
| F689zz | 9 | 17 | 19 | 4 | 5 | 1 | 1.1 | 1327 | 668 | 36 | 43 | |
| F699zz | 9 | 20 | 23 | 6 | 6 | 1.5 | 1.5 | 2467 | 1081 | 34 | 40 | |
| F6700zz | 10 | 15 | 16.5 | 16.5 | 3 | 4 | 0.8 | 0.8 | 850 | 430 | 14 | 16 |
| F6800zz | 10 | 19 | 21 | 5 | 5 | 1 | 1 | 1700 | 800 | 35 | 42 | |
| F6900zz | 10 | 22 | 25 | 6 | 6 | 1.5 | 1.5 | 2611 | 1223 | 31 | 40 | |
| F6701zz | 12 | 18 | 19.5 | 19.5 | 4 | 4 | 0.8 | 0.8 | 922 | 512 | 12 | 14 |
| F6801zz | 12 | 21 | 23 | 5 | 5 | 0.8 | 1 | 1911 | 1041 | 33 | 39 | |
| F6901zz | 12 | 24 | 26.5 | 6 | 6 | 1 | 1.5 | 2831 | 1411 | 31 | 36 | |
china manufacturer flanged bearing F series miniature ball bearing
High performance flange bearing F624 bearing 4x13x5mm flanged bearing F624
Made in China economic textile industrial bearing/bearing for textile machine
Features
1. Imperial sizing
2. Light duty performance
3. Grooved raceways sustain moderate axial loads in both directions and radial loads
4. Balls separated by steel cages for high-speed operation
5. Excellent for high speeds
6. Good radial load capacity
7. Acceptable axial load capacity in both directions
8. Have low torque capacity at startup and running speeds
9. Can operate with low noise
10. Require little maintenance
11. Available as sealed (2RS), shielded (ZZ) or open
12. Many available with snap ring (NR suffix)
Natural packag e :
White box,Plastic Tubes,Wooden cartons
Customized Package According to our customer's requirements
Delivery time:3-5 days or according to our customer ’ s order quantity
