Quick Details
-
Model Number:
-
FS-3695
-
Material:
-
SUS304
-
Color:
-
Gray
-
Work Temp.:
-
0~+95°C
-
Max Contact Rating:
-
70W
-
Start-up Volume(min):
-
4~5L/min
-
Screw Size:
-
G1
-
Certification:
-
IOS9001
Quick Details
-
Type:
-
flow switch
-
Place of Origin:
-
Shenzhen
-
Brand Name:
-
Sunwoald
-
Model Number:
-
FS-3695
-
Material:
-
SUS304
-
Color:
-
Gray
-
Work Temp.:
-
0~+95°C
-
Max Contact Rating:
-
70W
-
Start-up Volume(min):
-
4~5L/min
-
Screw Size:
-
G1
-
Certification:
-
IOS9001

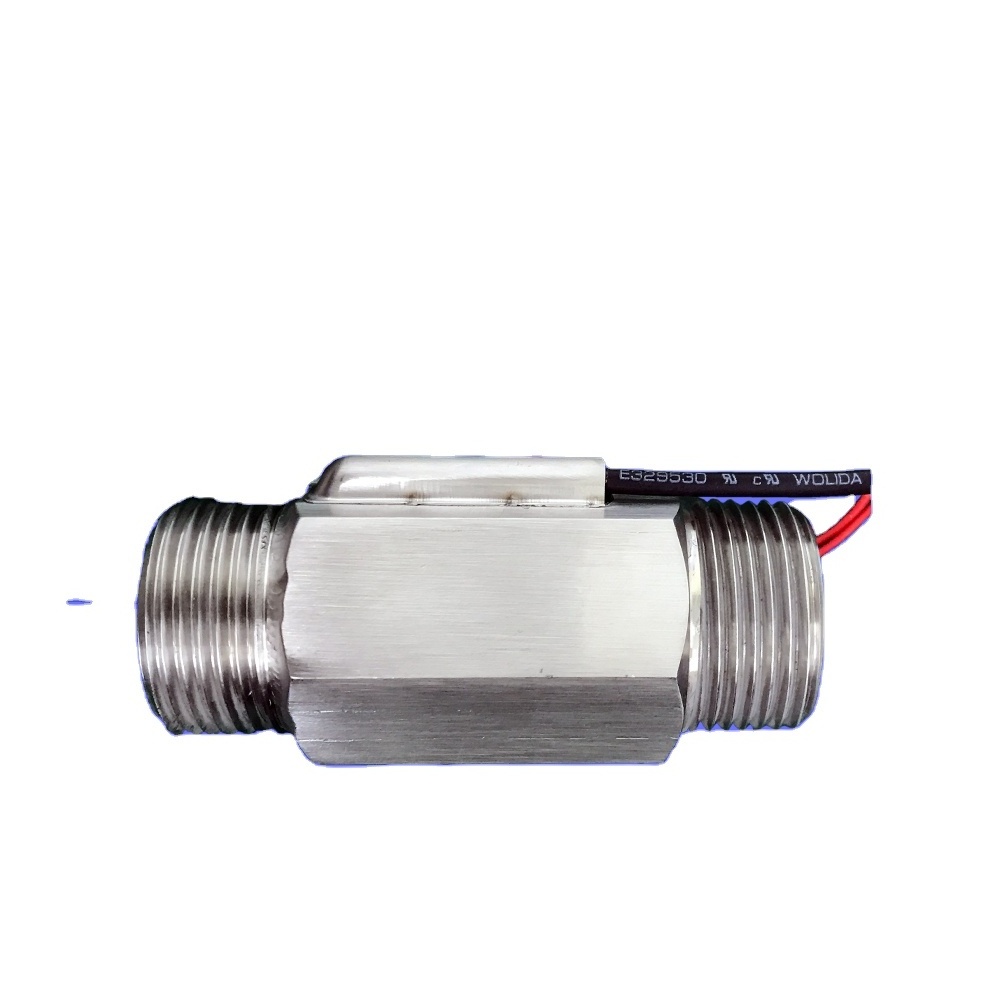

G1" SUS Magnetic Brass Flow Switch
|
Product Description |
Working theory:
The magnetic water flow switch is a device used to sense the water flow rate and switch on/off the flow in the pipe. There is a magnetic element in the flow switch. When liquid flow rate reaches the specified value, the magnetic element will be pushed closed to the sensor inside the switch, connect the circuit, and get signal transmitted.
Product Application
This magnetic water flow switch can be used to monitor liquid flow rate in water machine, water heater, coffee machine, vending machine, water meter, medical testing machine and the like. They are widely applied in industrial equipment, agricultural equipment and household electrical appliances in the future .
Product Specification
|
Electrical Characteristic |
Technical Characteristic |
||
|
Contact Form |
NO |
Mounting Position |
Vertical or Horizontal |
|
Max Contact Rating |
70W |
Suffering Pressure |
1.5MPa |
|
Max Switch Voltage |
300V |
Start-up Volume(min) |
4-5L/min |
|
Max Switch Current |
1.0A |
Operate Volume(max) |
150L/min |
|
Max Contact Resistance |
200m Ohm |
Operate Temperature |
0 °C ~ +100°C |
|
Min Insulation Resistance |
100m Ohm |
Standard Operate Pressure | 0.01-0.4MPa |
|
Electrical Life |
1x 10 7 (5Vdc,10mA) |
||
|
Related Products |
| FS-668-1 | FS-2253-G1/4 | FS-678 |
|
|
|
|
Certifications |
|
FAQ |
1.Question: What are your main products?
Answer: We mainly focus on water float switch, flow sensor and door contact switch . We ensure a reasonable price and high quality products.
2.Question: Where is your company?
Answer: We are a factory based in Shenzhen, Guangdong, China. All of our products are safely manufactured according to UL, ISO9001 and RoHs principles, and carefully checked before packed.
3.Question: What are the available materials?
Answer: Plastic PP, Brass
4.Question: Are these materials safe for drinking water?
Answer: Sure! All of our materials are made according the RoHs principles, they are nontoxic and environmental friendly.
5.. Question: Is the magnetic water flow switch made normally open or closed?
Answer: Most clients take our normally open model, but no worries we can make normally closed one if you need. To save from trouble, please read our datasheet before ordering.
6. Question: There is no magnetic water flow switch in the list suitable for me, can you OEM a new model according to our desire?
Answer: Yes, we can! Please send us your requirement and basic data or pattern of the product you want, our engineers will take care and OEM the model for you!
