Quick Details
-
Model Number:
-
XLS
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-25°C + 70°C, 25 ~ + 40
-
Max. Current:
-
3A
-
Application:
-
crane
-
Part name:
-
Cross Rotary Limit Switches
-
Type:
-
Electric Parts
-
Quality:
-
High-Quality
-
Part number:
-
OEM Number
-
Model:
-
LG933L/LG936L/LG938L/LG946L/lg956l/l956f/lg958l/LG968/L968F
-
Brand:
-
Doosan
-
Product name:
-
Final Motor
-
Certification:
-
CE ISO
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kenan
-
Model Number:
-
XLS
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-25°C + 70°C, 25 ~ + 40
-
Max. Current:
-
3A
-
Application:
-
crane
-
Part name:
-
Cross Rotary Limit Switches
-
Type:
-
Electric Parts
-
Quality:
-
High-Quality
-
Part number:
-
OEM Number
-
Model:
-
LG933L/LG936L/LG938L/LG946L/lg956l/l956f/lg958l/LG968/L968F
-
Brand:
-
Doosan
-
Product name:
-
Final Motor
-
Certification:
-
CE ISO
Product Discription

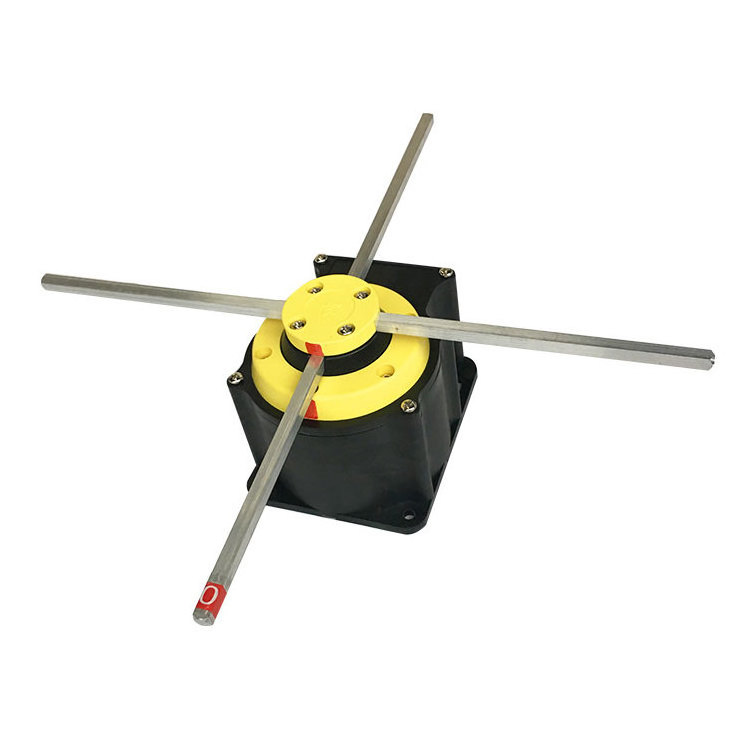

Cross limit switch
is a rotary control switch which has a 300 mm push rods with 3 to 5 valves. Also it has a rotation speed of 12 to 200 rpm/minute and it is with 4 or 6 micro switches.
It has two kind, one is 90 degrees rotation at positive and negative direction, one is 180 degrees rotation positive and negative direction.
The electric shock of this switch is made with AgC do material, which has large contact capacity and long service life.
The structural parts are made with PA 66 engineering plastic which is flame retardant.
It is suitable for various cranes, mine machines and other fields.
Product Display
Specifications
|
Model
|
XLS-P54D-PP/NP
|
|
Actuator Type
|
Crossed Rods Lever
|
|
type of operator
|
Stainless steel
|
|
type of approach
|
Lateral approach 2 directions
|
|
Conformity to Standards
|
EN 60947-5-1
|
|
Rated insulation voltage
|
500 Vac
|
|
Utilisation category
|
AC 15
|
|
Rated operational voltage
|
250 Vac
|
|
rated impulse withstand voltage
|
6 kV
|
