Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KETE
-
Model Number:
-
KTPM-AW250
-
Voltage:
-
50/60hz
-
Dimension(L*W*H):
-
7100 x 3100 x 2200mm
-
Weight:
-
4500 KG
-
Marketing Type:
-
machine for paper bag
-
Max Speed:
-
260pcs/min,Bag Making Speed
-
Product name:
-
Paper bag making machine
-
Keywords:
-
Paper bag machine
-
Key words:
-
Paper bag machine fully automatic kraft
-
Making V Bottom Paper Bag:
-
Yes
-
Making Bread Paper Bags:
-
Yes
-
Making Flat And Satchel Paper Bag:
-
Yes
-
Mechanical Speed:
-
50-350pcs/min
-
Yes:
-
Making V Bottom Paper Bag With Plastic Window
-
Optional:
-
Inline Flexo Printing Machine (2 colors/4 colors)
-
Film Perforation Function:
-
Optional
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
food bags, bread bags, dry fruit bags
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KETE
-
Model Number:
-
KTPM-AW250
-
Voltage:
-
50/60hz
-
Dimension(L*W*H):
-
7100 x 3100 x 2200mm
-
Weight:
-
4500 KG
-
Marketing Type:
-
machine for paper bag
-
Max Speed:
-
260pcs/min,Bag Making Speed
-
Product name:
-
Paper bag making machine
-
Keywords:
-
Paper bag machine
-
Key words:
-
Paper bag machine fully automatic kraft
-
Making V Bottom Paper Bag:
-
Yes
-
Making Bread Paper Bags:
-
Yes
-
Making Flat And Satchel Paper Bag:
-
Yes
-
Mechanical Speed:
-
50-350pcs/min
-
Yes:
-
Making V Bottom Paper Bag With Plastic Window
-
Optional:
-
Inline Flexo Printing Machine (2 colors/4 colors)
-
Film Perforation Function:
-
Optional
Price Of Paper Bag Making Machine Food Paper Bag Machine Fully Automatic Kraft Sharp Bottom Paper Bag Machine

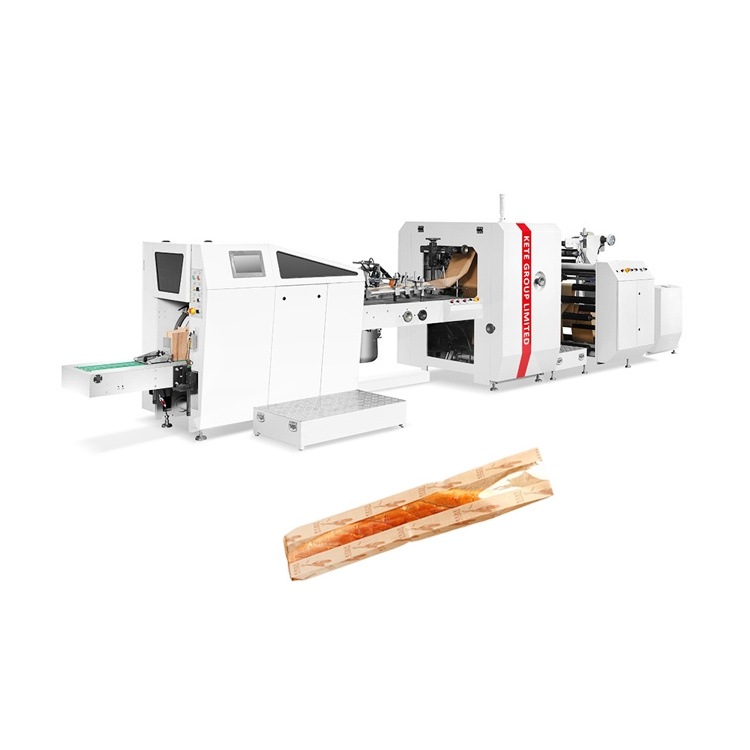

This Paper Bag Making Machine for Sale uses roll-type paper to make sharp bottom paperbags.
It’s suitable for Kraft paper, ribbed Kraft paper, grease-proof paper, coated paper, medico paper, etc.
This machine can make different kinds of paper bags, snack paper bags, food paper bags, bread paper bags, dry fruit paper bags, and eco-friendly paper bag and so on.
● PLC Touch Screen use SCHNEIDER Brand (French)
● PC Motion controller use TRIO Brand (UK)
● Servo Motor use YASKAWA Brand (Japan)
● Inverter use DETLA Brand (Taiwan)
● Photo Senor use SICK Brand (Germany)
● Unwind EPC use PASOURCE Brand (Taiwan)
● PC Motion controller use TRIO Brand (UK)
● Servo Motor use YASKAWA Brand (Japan)
● Inverter use DETLA Brand (Taiwan)
● Photo Senor use SICK Brand (Germany)
● Unwind EPC use PASOURCE Brand (Taiwan)
● Unwind with Pneumatic Auto Loading
● Electrical Controller Box with Air Condition
● Machine with CE Certification
● Machine with ROHS Certification
● Optional Film Window Open Device
● Optional Film Perforation Function
● Optional Inline Flexo Printing Machine (2 colors/4 colors)
● Electrical Controller Box with Air Condition
● Machine with CE Certification
● Machine with ROHS Certification
● Optional Film Window Open Device
● Optional Film Perforation Function
● Optional Inline Flexo Printing Machine (2 colors/4 colors)
|
Model
|
KTPM-A250
|
KTPM-AW250
|
||
|
Paper Jumbo Roll Width
|
160-780mm
|
160-780mm
|
||
|
Paper Tube Cutting Length
|
110-460mm
|
110-460mm
|
||
|
Bag Making Height
|
105-455mm
|
105-455mm
|
||
|
Bag Making Width
|
70-250mm
40-60mm (Customized) |
70-250mm
40-60mm (Customized) |
||
|
Mechanical Speed
|
50-350pcs/min
|
|
||
|
Bag Making Speed
|
50-260pcs/min
|
|
||
|
Paper Feeding Speed
|
≤70m/min
|
|
||
|
Bag Side Gusset
|
20-120mm
|
20-120mm
|
||
|
Bag Mouth Height
|
15/20mm
10-20 (Customized) |
15/20mm
10-20 (Customized) |
||
|
Paper Thickness
|
35-80gsm
|
35-80gsm
|
||
|
Jumbo Roll Diameter
|
200-1200mm
|
200-1200mm
|
||
|
Plastic Window
|
|
|
||
|
Plastic Film Thickness
|
/
|
0.015-0.05mm
|
||
|
Plastic Film Width
|
/
|
50-200mm
|
||
|
Inline Flexo Printing
|
|
|
||
|
Color
|
2 colors /4 colors
|
2 colors /4 colors
|
||
|
Printing Machine Model
|
1000
|
1000
|
||
|
Printing Width
|
≤960mm
|
≤960mm
|
||
|
Printing Length
|
160-460mm
|
160-460mm
|
||
|
Printing Speed
|
10-100m/min
|
10-100m/min
|
||
|
Machine Power
|
17kw
33kw(P2) 36KW(P4) |
22kw
38kw(P2) 41KW(P4) |
||
|
Machine Weight
|
4000kg
7300kg(P2) 7800kg(P4) |
4500kg
7800kg(P2) 8300kg(P4) |
||
|
Machine Size (LWH)
|
7100 x 3000 x 2200mm
12000 x3000 x2400mm(P2) 12700 x3000 x2400mm(P4) |
7100 x 3100 x 2200mm
12000 x3100 x2400mm(P2) 12700 x3100 x2400mm(P4) |
||
|
Power Support
|
3 Phase 220/380/440V 50/60HZ
|
|
||
