Products
Automatic Industrial Potato Chips Making Machine
Automatic Industrial Potato Chips Making Machine

Automatic Industrial Potato Chips Making Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $10000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V
Power:
750
Dimension(L*W*H):
745x590x1385mm
Weight:
70kg
Machinery Function:
Potato Chips Making Machine
Output product name:
Potato Chips
Application:
Chips
Name:
Potato Chips Making Machines
Material:
304 Stainless Steel
Usage:
Snack
Type:
Processing Line
Capacity:
100-150kg/h
Function:
Multifunctional
Item:
Commercial Food Machine
Certification:
CO

Quick Details

Marketing Type:
Potato Chips Making Machine
Brand Name:
QIXIN
Place of Origin:
Henan, China
Voltage:
380V
Power:
750
Dimension(L*W*H):
745x590x1385mm
Weight:
70kg
Machinery Function:
Potato Chips Making Machine
Output product name:
Potato Chips
Application:
Chips
Name:
Potato Chips Making Machines
Material:
304 Stainless Steel
Usage:
Snack
Type:
Processing Line
Capacity:
100-150kg/h
Function:
Multifunctional
Item:
Commercial Food Machine
Certification:
CO

Automatic Industrial Potato Chips Making Machine

Product Description

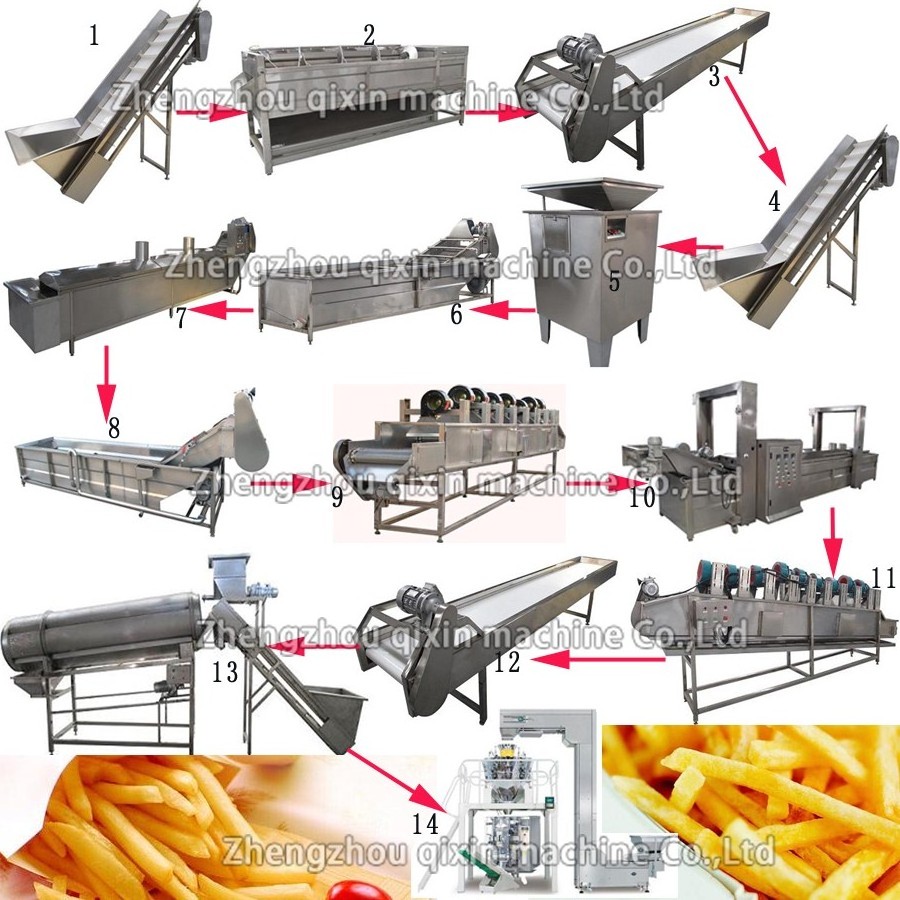

This line is of high automation,large capacity,low energy consumption,labor-saving,small area occupation,easy operation,good quality and high profit.The line mainly include the process of potato washing peeling,cutting,washing,blanching,dewatering,frying,deoiling ,flavoring and packing.We will provide formula and technology guidence free of charge to make sure you can make high quality and delicious potato chips.With small changes and add freezer to the line,you can make frozen french fries.

Motor: copper wire National standard motor

Parameter of Potato Chips Making Machine:

Item
Products
Parameter
1
Loading elevator
Dimension: 2535x700x2150mm
Material: stainless steel+food grade pvc
Power : 0.37kw  380v
2
Spiral cleaning and peeling machine
Dimension: 3050x700x1600mm
Material: stainless steel
Brush: nylon
Power: 2.75kw 380V
3
Picking line
Dimension: 3000x740x1100mm
Material: stainless steel+food grade pvc
Power : 0.37kw 380v
4
Loading elevator
Dimension: 1800x700x1600mm
Material: stainless steel+food grade pvc
Power : 0.37kw 380v
5
Cutter
Dimension: 745x590x1385mm
Material: stainless steel
Power : 0.75kw 380v
6
Bubble washer line
Dimension: 2500*1300*1400mm
Material: stainless steel
Mesh belt width: 600mm
Power : 1.87kw 380v
7
Blanching line
Dimension: 4000*1070*1400mm
Material: stainless steel
Mesh belt width: 600mm
Power : 40.5kw 380v
8
Rinsing & cooling line
Dimension: 2500*1300*1400mm
Material: stainless steel
Mesh belt width: 600mm
Power : 1.87kw 380v
9
De-water machine
Dimension: 3000*900*1700mm
Material: stainless steel
Mesh belt width: 600mm
Power : 4.5kw 380v
10
Fryer Line
Dimension: 5000*1700*2250mm
Material: stainless steel
Mesh belt width: 600mm
Power : 118kw(heating) & 7kw(assist),380v
11
De-oil machine
Dimension: 3000*900*1700mm
Material: stainless steel
Mesh belt width: 600mm
Power : 4.5kw 380v
12
Picking Line
Dimension: 2500*740*1100mm
Material: stainless steel+food grade pvc
Power : 0.37kw 380v
13
Flavoring machine
Dimension: 2500*850*2200mm
Material: stainless steel
Drum diameter: 500mm
Power : 1.12kw 380v
14
Packing Machine
Capacity: about50 bag/min
Accuracy: ≤±1.5%
Bag size: (L)60-300mm (W)60-200mm
Film width: 420mm
Bag type: Pack with film, upper seal, lower seal and back seal by automatic bag making machine
Film thickness: 0.04-0.09mm
Package material: thermal composite material., likeBOPP/CPP, PET/AL/PE etc
Air consumption: 0.8Mpa 0.5m3/min
Total powder: 4.745KW
Voltage: Four wire three phase 380V 50HZ
Air compressor: Not less than 1 CBM
Total height: 3.308 m
Detailed Images

Automatic Industrial Potato Chips Making Machine
