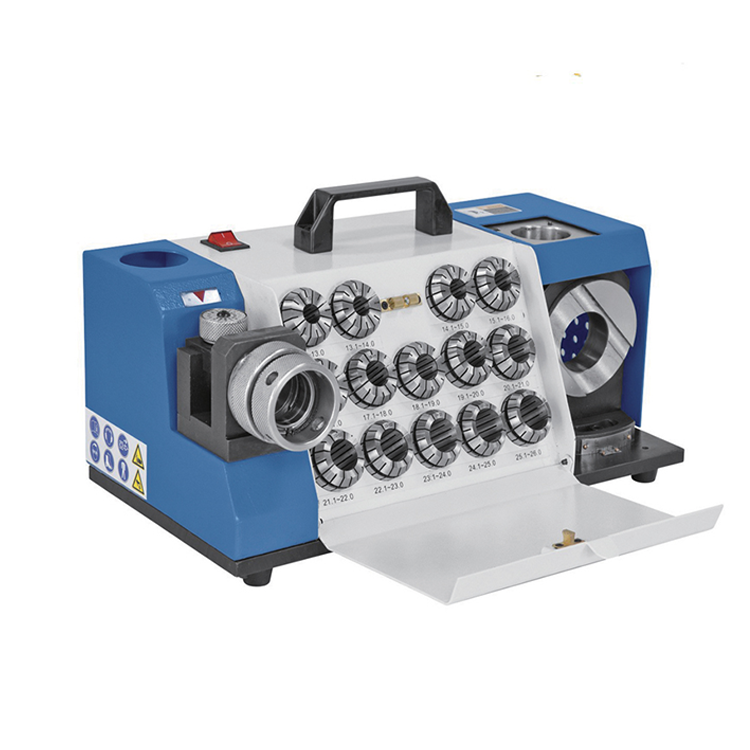

1.This portable dill grinder is equipped with high quality grinding wheel, which can be assembled directly with accurate angle and long service life.
2.This drill grinder works to sharpen the drill bit’s point thinning, lip relief angle and point angle.
You can control the centre spot at random instead of center drill, escape of chips easily, drilling with a light heart.
3.The grinding capacity is for twist drills with diameter from 2mm to 13mm.
4.Standard CBN grinding wheel for the HSS material,
5.Optional SDC grinding wheel for the carbide material.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
QNR
-
Voltage:
-
230V
-
Dimension(L*W*H):
-
32X18X19CM
-
Weight (KG):
-
10
-
Power (kW):
-
180W
-
Core Components:
-
twist drills, CBN Grinding wheel, SDC grinding wheel
-
Keywords:
-
twist drills
-
Certification:
-
CE ISO
-
Power Source:
-
Power Source
-
Color:
-
Cutomized
-
Function:
-
Low noise, high precision, high efficiency.
-
Material:
-
HSS and carbide
-
MOQ:
-
10
-
Service:
-
24 hours remote installation guide
Quick Details
-
Wheel Size(mm):
-
2-13mm
-
Year:
-
Now
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QNR
-
Voltage:
-
230V
-
Dimension(L*W*H):
-
32X18X19CM
-
Weight (KG):
-
10
-
Power (kW):
-
180W
-
Core Components:
-
twist drills, CBN Grinding wheel, SDC grinding wheel
-
Keywords:
-
twist drills
-
Certification:
-
CE ISO
-
Power Source:
-
Power Source
-
Color:
-
Cutomized
-
Function:
-
Low noise, high precision, high efficiency.
-
Material:
-
HSS and carbide
-
MOQ:
-
10
-
Service:
-
24 hours remote installation guide
Products Description
|
Model
|
B2-DB1
|
|
Grinding Range
|
φ2-φ13(φ15)
|
|
Point Angle
|
100°(90°)-135°
|
|
Power
|
180W
|
|
Speed
|
4800rpm
|
|
Standard Equipment
|
grinding wheel :CBN(for)HSS)×1
11 collets:φ3,4,5,6,7,8,9,10,11,12,13 |
|
Optional Equipment
|
grinding wheel :SDC(for Carbide) collets:φ2,2.5,3.5,4.5,5.5,14,15
|
|
Packing size
|
32×18×19cm
|
|
Weight
|
10kg
|
Sharpener Drill Grinding Machine Grinding Tool Drill Bit Grinder 2-13mm
Drill Bit Grinder 2-13mm
