Quick Details
-
Dimension(L*W*H):
-
7000*2280*2700
-
Product Name:
-
Pile Driving Machine
-
Application:
-
Solar Photovoltaic
-
Advantages:
-
Fast Pile Driving Speed
-
Suitable pile:
-
Concrete Precast Pile
-
Drilling depth:
-
3000mm
-
Drilling Pipe Length:
-
3000mm
-
Supporting winch:
-
5T
-
Drill Hole Diameter:
-
200-350mm
-
New foundation machine:
-
Embracing Pile Driving Method
-
Origin:
-
China
Quick Details
-
Piling Speed(m/min):
-
30m/min
-
Place of Origin:
-
China
-
Weight:
-
6100 kg
-
Dimension(L*W*H):
-
7000*2280*2700
-
Product Name:
-
Pile Driving Machine
-
Application:
-
Solar Photovoltaic
-
Advantages:
-
Fast Pile Driving Speed
-
Suitable pile:
-
Concrete Precast Pile
-
Drilling depth:
-
3000mm
-
Drilling Pipe Length:
-
3000mm
-
Supporting winch:
-
5T
-
Drill Hole Diameter:
-
200-350mm
-
New foundation machine:
-
Embracing Pile Driving Method
-
Origin:
-
China
Products Description

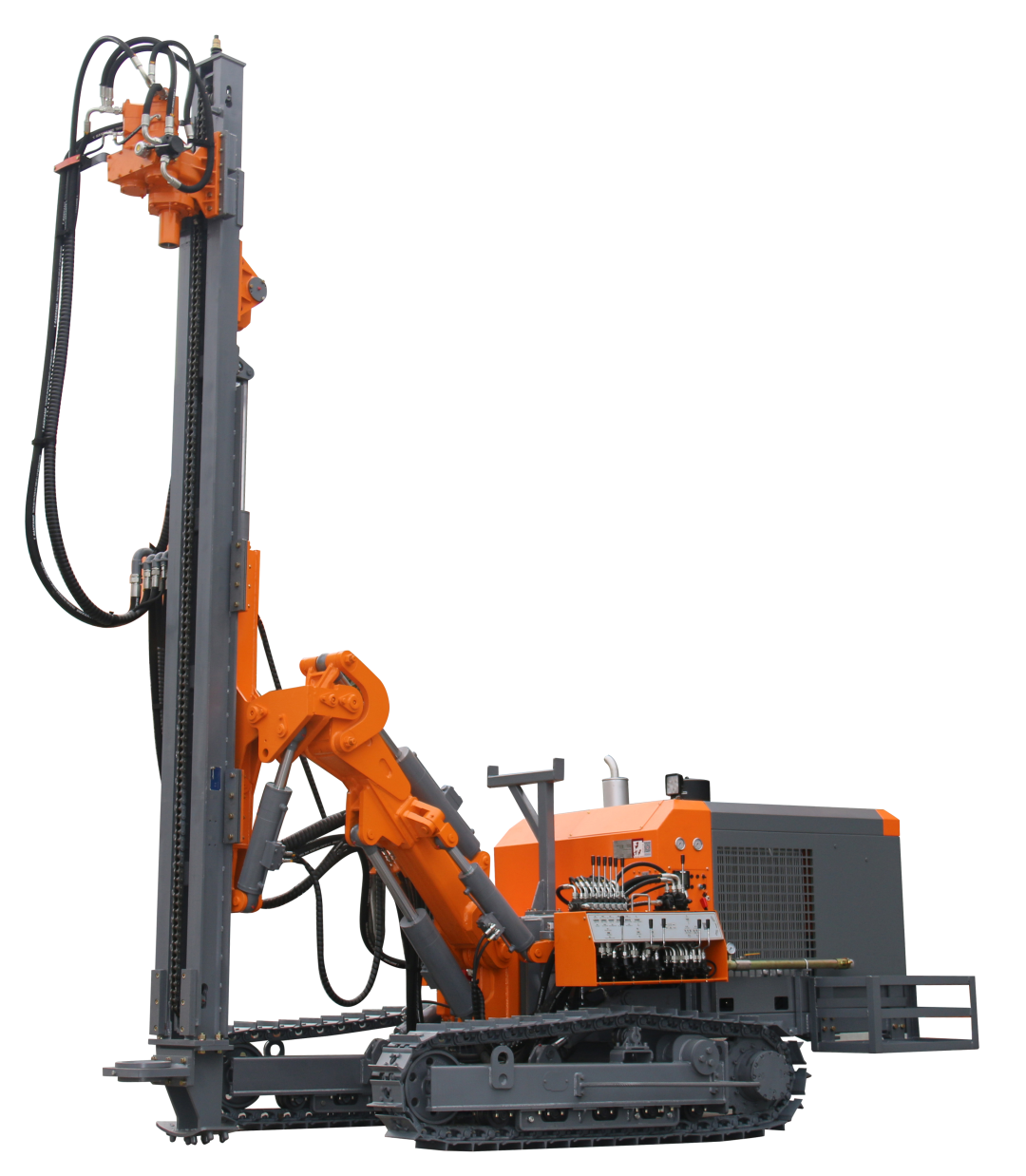

High Quality Solar Pile Driver
In recent years, the photovoltaic market has developed strongly. We have a variety of split drilling rigs suitable for photovoltaic projects, such as anchor drilling rig ZGYX-430S/435S, with large aperture and high torque to meet the market demand of the photovoltaic industry. The two new models developed this time are safe and efficient, and are also suitable for the construction of large-aperture and ultra-large-aperture photovoltaic pile projects. According to market demand, Jialongli Machinery has enriched product functions and brought more choices to customers.
Product Paramenters
|
Model of Drill Rig
|
420GF
|
430GF
|
|
Weight of Machine
|
6100KG
|
7000KG
|
|
Outer Dimensions
|
7000x2280x2700 mm
|
7200x2230x2700 mm
|
|
Supporting Power
|
YCF36-100 74kw
|
YC4DK-100 73.5KW
|
|
Drilling Hardness
|
F=6~20
|
F=6~20
|
|
Drilling Diameter
|
200-350mm
|
200-350mm
|
|
Rotation Speed
|
55-110 r/min
|
36-105 r/min
|
|
Rotation Torque (MAX)
|
8000N.m
|
8000N.m
|
|
Pull up Force (MAX)
|
25KN
|
25KN
|
|
Method of Feed
|
Motor Chain
|
Motor Chain
|
|
Feed Stroke
|
3875mm
|
3875mm
|
|
Feed Force(MAX)
|
25KN
|
25KN
|
|
Working Air Pressure
|
0.7~2.5Mpa
|
0.7~2.5Mpa
|
|
Climbing Capacity
|
35°
|
35°
|
|
Ground Clearance
|
310mm
|
310mm
|
|
Tilt Angle of Beam
|
Over180°
|
Over180°
|
|
Swing Angle of Boom
|
left50°right50°/left15°right95°
|
left50°right50°/left15°right95°
|
|
Swing Angle of Drill Boom
|
Up41° Down31°
|
Up 48° Down37°
|
|
Leveling Angle of Track
|
±10°
|
±10°
|
Details
High Torque Large Bore
The 420GF and 430GF photovoltaic drilling rigs are designed with high-torque rotary heads, with a torque of up to 8000N/M, to meet the needs of Φ176-300-400mm large-aperture and ultra-large-aperture photovoltaic piles;
Both structure and quality are reliable
The propulsion beam adopts a 3-meter opening design, which has sufficient space for rod replacement. At the same time, the
propulsion system uses a 24A roller motor to propel, with reliable structure and increased propulsion lifting force. The two
products are equipped with standard box-type walking beams, national standard engineering single-rib crawlers, additional leveling
function, plunger travel motor, powerful climbing, and reliable quality.
Safe and Efficient
The sunshade is equipped as standard, which is suitable for all kinds of weather, improves the comfort of the operator, and is
beautiful and practical.
Strong climbing ability
The drilling rig is equipped with a hoist as standard, which has a strong climbing ability and can meet the original steep slope working environment with the cooperation of the hydraulic winch.
