Quick Details
-
Mounting Type:
-
Ceiling Mounted
-
Description:
-

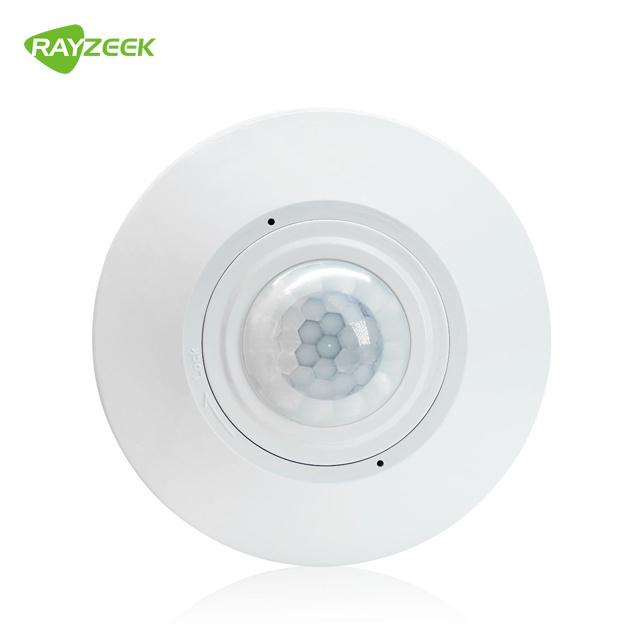

Ceiling Mounted 110V 220V 230V, 360 degree ceiling motion sensor RZ036
-
Model Number:
-
RZ036-5A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
pir inductive
-
Output:
-
same as input
-
Product Type:
-
ceiling mounted 360 degree motion sensor switch for light control
-
Input Voltage:
-
100VAC~265VAC
-
Detection Diameter:
-
8-12m(<27℃)
-
Load current:
-
≤5A
-
Installation Height:
-
2.5~3.5M
-
Detection Range:
-
360°
-
Rated load for incandescent or halogen:
-
500W/110VAC, 1100W/220VAC
-
Rated load for fluorescent or ballast:
-
250W/110VAC, 500W/220VAC
-
Working Humidity:
-
<90%RH
-
Working Temperature:
-
-10~+40℃
Quick Details
-
Usage:
-
light control auto turn on off
-
Series:
-
PIR Motion Sensor Switch
-
Features:
-
Ceiling Mounted PIR Motion Sensor Switch
-
Mounting Type:
-
Ceiling Mounted
-
Description:
-
Ceiling Mounted 110V 220V 230V, 360 degree ceiling motion sensor RZ036
-
Model Number:
-
RZ036-5A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
pir inductive
-
Output:
-
same as input
-
Product Type:
-
ceiling mounted 360 degree motion sensor switch for light control
-
Input Voltage:
-
100VAC~265VAC
-
Detection Diameter:
-
8-12m(<27℃)
-
Load current:
-
≤5A
-
Installation Height:
-
2.5~3.5M
-
Detection Range:
-
360°
-
Rated load for incandescent or halogen:
-
500W/110VAC, 1100W/220VAC
-
Rated load for fluorescent or ballast:
-
250W/110VAC, 500W/220VAC
-
Working Humidity:
-
<90%RH
-
Working Temperature:
-
-10~+40℃
Products Description
|
Item No.:
|
RZ036-5A
|
|
Product Type
|
ceiling mounted 360 degree motion sensor switch for light control
|
|
Input Voltage
|
100VAC~265VAC
|
|
Output Voltage
|
Same as input voltage
|
|
Load current
|
≤5A
|
|
Installation Height
|
2.5~3.5M
|
|
Detection Range
|
360°
|
|
Detection Diameter
|
8~12M (<27 degree centigrade)
|
|
Detection Speed
|
0.6~1.5m/s
|
|
Rated load for incandescent or halogen
|
500W/110VAC, 1100W/220VAC
|
|
Rated load for fluorescent or ballast
|
250W/110VAC, 500W/220VAC
|
|
Sensitivity
|
High, low sensitivity adjustable.
|
|
Time Delay
|
1min. 15s, 30s, 3min, 5min, 10min, 30min adjustable.
|
|
Light Sensor
|
25Lux. Off, 15lux, 35lux optional.
|
|
Working Humidity
|
<90%RH
|
|
Working Temperature
|
'-10°C~40°C
|
Installation Instructions
Installation Steps
1. Point out the position for installation.
2. Remove the top cover of RZ036.
3. Fix the RZ036 to the target installation position with screws.
4. Connect wires with terminals correctly.
5. Turn on the power, the green indicator turns on, then test RZ036 to make sure all functions great.
6. Adjust time delay, illuminance value by your request.
7. Clockwise to mount the top cover.
Recommendations for Users
1. Installation height should be 2.5~3.5M.
2. Keep 1.2m away from fans, lights or other heat sources.
3. Time delay setting recommendations: 30mins for working area, 10mins for toilet, 1min for passageway,15s for testing.
4. When people there keep moving or keep not moving, the RZ036 will not turn off or turn on light during this situation.
