Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
7.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Powertech
-
Voltage:
-
380v
-
Power (kW):
-
13
-
Weight (KG):
-
1500
-
Product name:
-
Stone Machinery 4 Axis
-
Spindle:
-
3/4.5/5.5kw/6kw Spindle
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Transmission:
-
Helical Rack Pinion
-
Working area:
-
1300*2500mm
-
Motor:
-
Stepper Motor
-
Inverter:
-
Fuling Inverter
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Driving system:
-
Leadshine Driver M860
-
Spindle speed:
-
6000-24000rpm/min
Quick Details
-
Working Table Size(mm):
-
1300*2500mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
7.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Powertech
-
Voltage:
-
380v
-
Power (kW):
-
13
-
Weight (KG):
-
1500
-
Product name:
-
Stone Machinery 4 Axis
-
Spindle:
-
3/4.5/5.5kw/6kw Spindle
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Transmission:
-
Helical Rack Pinion
-
Working area:
-
1300*2500mm
-
Motor:
-
Stepper Motor
-
Inverter:
-
Fuling Inverter
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Driving system:
-
Leadshine Driver M860
-
Spindle speed:
-
6000-24000rpm/min

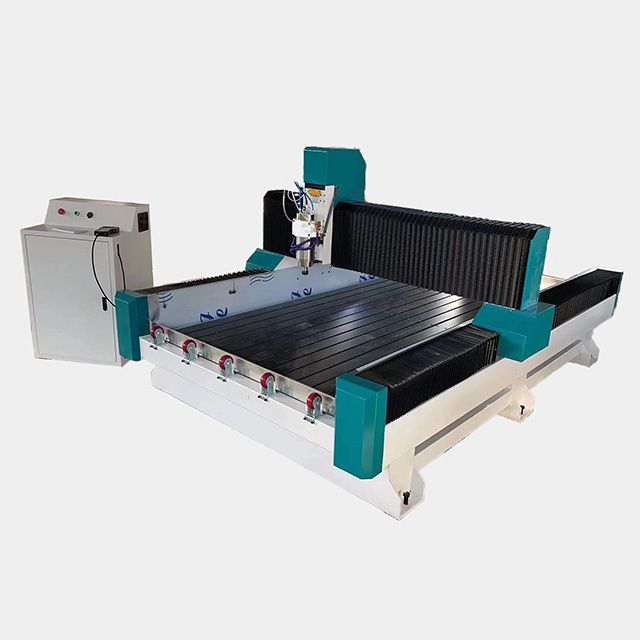

Big Discount Large Tile Granite Bridge Saw Stone Cutting Machinery 4 Axis
Technical Parameter
|
Type
|
Stone CNC Router
|
|
Voltage
|
220V/380V
|
|
Machine frame
|
Strong thick steel square tube
|
|
X,Y Structure
|
Rack and pinion; Taiwan Hiwin guide rail 25mm
|
|
Z Structure
|
Ball screw 2510; Taiwan Hiwin guide rail 20mm
|
|
Dimension(L*W*H)
|
1300*2500*300mm
|
|
Rotary axis
|
FOR option |
|
Weight
|
1500kg
|
|
Motor
|
stepper motor |
|
Drive
|
Leadshine
|
|
Spindle
|
Water-cooling
|
|
Spindle Power
|
7.5kw
|
|
Spindle Speed
|
6000-24000RPM
|
|
Inverter
|
Fuling inverter
|
|
Table
|
Aluminum table + T slot + water tank
|
|
X,Y,Z repositioning accuracy
|
±0.02/300mm
|
|
X,Y,Z traveling accuracy
|
±0.03/300mm
|
|
Max working speed
|
20000mm/min
|
|
Max rapid travel speed
|
30000mm/min
|
|
Operating system
|
DSP/NC Studio system
|
|
Command language
|
G code
|
|
Software compatibility
|
Type3/Artcam/Artcut/Ucancam/JDpaint etc
|
|
Running environment
|
0~45 centigrade
|
|
Relative humidity
|
30%~75%
|
Product feature
1. About Lathe bed :
To burden very heavy stone, our machine welding bed use 12 mm steel , After hundred times’ special vibrate experiments,we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we provide our machines good stability, longer life and amazing accuracy rate. Compared with other manufacturers ’ 4.8mm body thickness, we believe that our products will totally attain even your most rigorous requirements.
2. About spindle:
2. About spindle:
Using 7.5KW Chinese top water cooling spindle to ensure the high intensity and precisio of stone engraving . The water cooling spindle adopt water cycle to cooling the spindle ,so the cooling effect is very good. Almost no noise, long life.
3. About transmission:
3. About transmission:
For the total machine,we adopt the world famous rail and guide manufacturer Taiwan Hiwin square rails, self-lubricating sliding block.
This ensures equal force in all directions and accuracy and strength of the machine.
Z axis adopts original TBI ball screw imported from Taiwan and X Y axis adopt high precision gear transmission,high precision,speed and strength.
4. Leadshine drive and motor:
a: Won't lose step when it work,guarantee the positional accuracy of the motor.
b: Speed performance increased about 30%, improve the equipment speed heavily.
c: Motor heat fell down 30%, prolong the life time of the motor.
Vibration phenomenon significantly reduced, motor run more smoothly.
d: Adopted the current control system technology, save power consumption.
This ensures equal force in all directions and accuracy and strength of the machine.
Z axis adopts original TBI ball screw imported from Taiwan and X Y axis adopt high precision gear transmission,high precision,speed and strength.
4. Leadshine drive and motor:
a: Won't lose step when it work,guarantee the positional accuracy of the motor.
b: Speed performance increased about 30%, improve the equipment speed heavily.
c: Motor heat fell down 30%, prolong the life time of the motor.
Vibration phenomenon significantly reduced, motor run more smoothly.
d: Adopted the current control system technology, save power consumption.
Machine Sample
Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo and other hardwood surface of virtue and sculpture.
Packaging & Shipping
packing:
1. Outside package machine packed by plywood case.
2. Inner package:machine packed by plastic sheet and foam
3. Delivery: machine delivered within 7-10 work days after receiving
