Quick Details
-
Model Number:
-
HBFL--HWJ--001
-
Weight (KG):
-
5000
-
Power (kW):
-
30
-
Welding speed:
-
50-80 times/min
-
Machine size:
-
6000*2100*2200mm
-
Transformer:
-
140KVA*6
-
Weight:
-
4tons
-
Welding type:
-
Step up the welding in turn
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Wire Diameter (mm):
-
3 - 8 mm
-
Place of Origin:
-
China
-
Brand Name:
-
HBFL
-
Model Number:
-
HBFL--HWJ--001
-
Weight (KG):
-
5000
-
Power (kW):
-
30
-
Welding speed:
-
50-80 times/min
-
Machine size:
-
6000*2100*2200mm
-
Transformer:
-
140KVA*6
-
Weight:
-
4tons
-
Welding type:
-
Step up the welding in turn
-
After-sales Service Provided:
-
Free spare parts

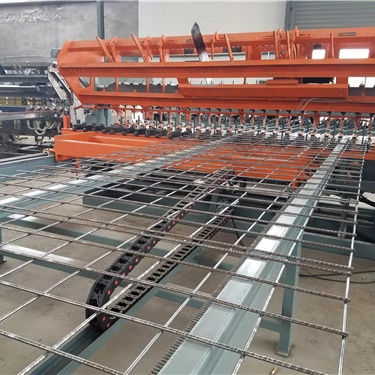

HBFL automatic reinforcing galvanized steel fence mesh roll making welding machine /automatic welded wire mesh factory price
wire mash welding machine product description
About the machine:
1. Main Machine:Compress tightly once time and welding separately,it could promise the welding firmness.It include welding machine part,mesh dropping parts,mesh pulling part,and PLC control cabinet.
2. PLC Control system adopts programming technique from Mitsubishi of Japan,touch screen operating,Chinese-English display,easy operation.
3. Mesh pulling system adopts PLC programming system,servo motor controlling,higher precision,it could realize different mesh size.
4. Cross wire feeding system adopts store holder,mesh dropping aromatically,easy and convenient operation.
5. Mesh dropping system automatically
A. BASIC TECHNICAL PARAMETER
|
Mesh dimension |
1200mm |
|
Material |
- stainless steelΦ 6mm-8mm
With cross wire 4-4.85mm, line wire 6-8mm
|
|
Mesh hole opening |
hole size 33x49.5mm (cross space 33mm) 50*50mm |
|
Welding speed |
50-80 times/min |
|
Machine size |
6000*2100*2200mm |
|
Transformer |
140KVA*6 |
|
Weight |
4tons |
|
Welding points |
24 pcs |
|
Welding type |
Step up the welding in turn |
|
Mesh cutting machine |
1 set |
|
Wire straight and cut machine |
1 set |
|
FOB Tianjin Price |
USD 23000/Production line |
B.WORKING CONDITION
|
Item |
Working condition |
|
Three-phase power 380V50HZ, distance from main control cabinet ≤ 50 meters, power supply voltage fluctuation ≤± 5% |
|
|
The control voltage |
DC24V |
|
The power supply capacity |
1500KVA |
|
Three times welding main transformer power |
250- 500KVA |
|
Single-phase load area of power line |
The copper wire is 120 square |
|
The surrounding environment |
Temperature 0 ~ 40℃ , air relative humidity (25 ℃ ) ≤ 90% |
|
The cooling system |
Clean, neutral to slightly alkaline (PH=7 ~ 8) water, flow 5.12m3/h, inlet temperature 25 ~ 30℃ , inlet pressure 0.15 ~ 0.3mpa, cooling capacity of 29kw |
|
Air supply requirements |
The working pressure is 0.6mpa and the flow is about 130 m3/h |
