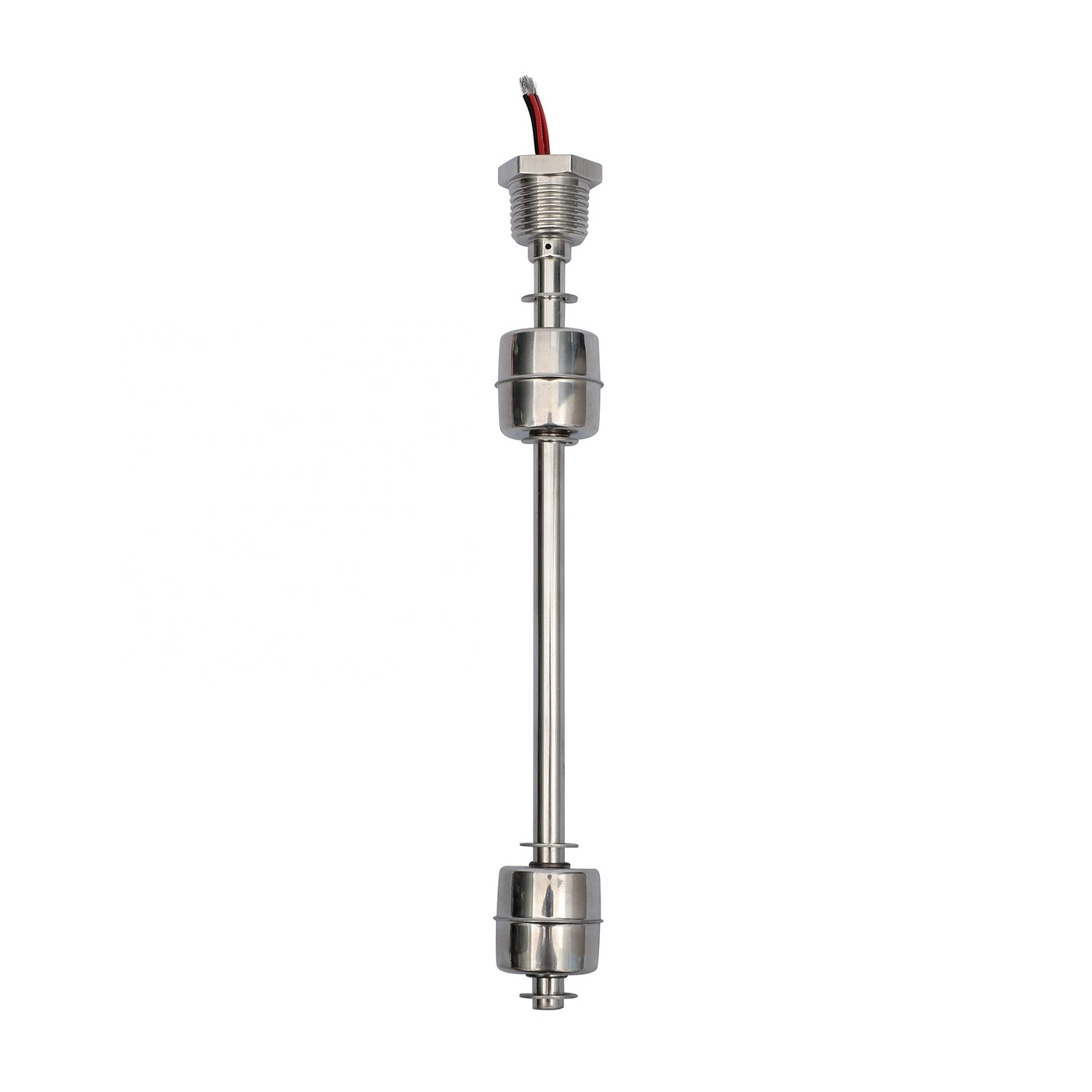

Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system
Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system
Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system
Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system
Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system
Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system
Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system
Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system

Double SUS Balls Ice Machine Float Switch Instant Stop M16 Float Switch for Hvac system

FOB Reference Price: Get Latest Price
≥1 Pieces
US $4
≥1000 Pieces
US $3
≥5000 Pieces
US $1.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
FD-220SI6H2
Protection Level:
IP67
Operating Temperature:
-40C to 120C
Max. Current:
1.5A
Product name:
fast float instant stop float switch
Material:
Stainless steel 304/316
SIZE:
220 SENSOR BODY LENGTH
Application:
car, automobile,industry equipment ,humidifier,etc
Contact Form:
N.O/N.C
Wire length:
350mm or as required
Output:
Switching Transducer
Rated Voltage:
100VDC/220VDC
Rated current:
0.5A/1.5A
Rating Load:
10W/50W
Certification:
ROSH

Quick Details

Max. Voltage:
200VDC
Place of Origin:
Guangdong, China
Brand Name:
FuEn
Model Number:
FD-220SI6H2
Protection Level:
IP67
Operating Temperature:
-40C to 120C
Max. Current:
1.5A
Product name:
fast float instant stop float switch
Material:
Stainless steel 304/316
SIZE:
220 SENSOR BODY LENGTH
Application:
car, automobile,industry equipment ,humidifier,etc
Contact Form:
N.O/N.C
Wire length:
350mm or as required
Output:
Switching Transducer
Rated Voltage:
100VDC/220VDC
Rated current:
0.5A/1.5A
Rating Load:
10W/50W
Certification:
ROSH
Click Here for Free Samples!
Product Description
Product Name
Float Switch Sensor
Material
Stainless steel 304/316
Size
Rod length :220MM , Cable length : as your requirements , Terminal /connector : as your requirements
Function
Float level switches are widely used in electronic, electrical, chemical, water treatment, drainage and other industry of level control and alarm.
Payment terms
T/T; Western Union; PayPal.Trade assurance
Package
Standard Export Package

  • Product performance description

1.Acid and alkali resistant materials: Stainless steel 304/316
Other material : PP,PVDF, NYLON, NBR etc..
2.Stainless steel SUS304, SUS316, max working temp.350℃, max proof pressure 60kg/cm2
3.Stainless steel switch body length can reach 120mm~400mm or as your requirements , the length can be adjusted according to your
water
tank, switch body is durability.
4.Multiple wires: electrical wire or cable wire, PVC, XLPE, PTFE materials.
5.Multiple installations, dimensions, from M8~M16, 1/8" ~ 1/2",PF/PT/BSP etc..
