Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Online support
-
Brand Name:
-
Chenglong
-
Place of Origin:
-
Guangxi, China
-
Dimensions (L x W x H) (mm):
-
7650mm*2540mm*3350mm
-
Cargo Tank Dimension:
-
6000mm*2350mm*1500mm
-
Maximum power:
-
285Kw/1900rpm
-
Gearbox:
-
12JSD180T
-
Color:
-
Customer's Requirement
-
Wheel base:
-
3500+1350
-
Cab:
-
H72S flat top
-
Curb weight:
-
10180kg
-
Tyre:
-
12.00R20-18PR
-
Minimum ground clearance:
-
302mm
-
Maximum driving speed:
-
74km/h
-
Certificate:
-
ISO CCC CE
Quick Details
-
Condition:
-
New
-
Horsepower:
-
385hp
-
Emission Standard:
-
EURO 5
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Online support
-
Brand Name:
-
Chenglong
-
Place of Origin:
-
Guangxi, China
-
Dimensions (L x W x H) (mm):
-
7650mm*2540mm*3350mm
-
Cargo Tank Dimension:
-
6000mm*2350mm*1500mm
-
Maximum power:
-
285Kw/1900rpm
-
Gearbox:
-
12JSD180T
-
Color:
-
Customer's Requirement
-
Wheel base:
-
3500+1350
-
Cab:
-
H72S flat top
-
Curb weight:
-
10180kg
-
Tyre:
-
12.00R20-18PR
-
Minimum ground clearance:
-
302mm
-
Maximum driving speed:
-
74km/h
-
Certificate:
-
ISO CCC CE

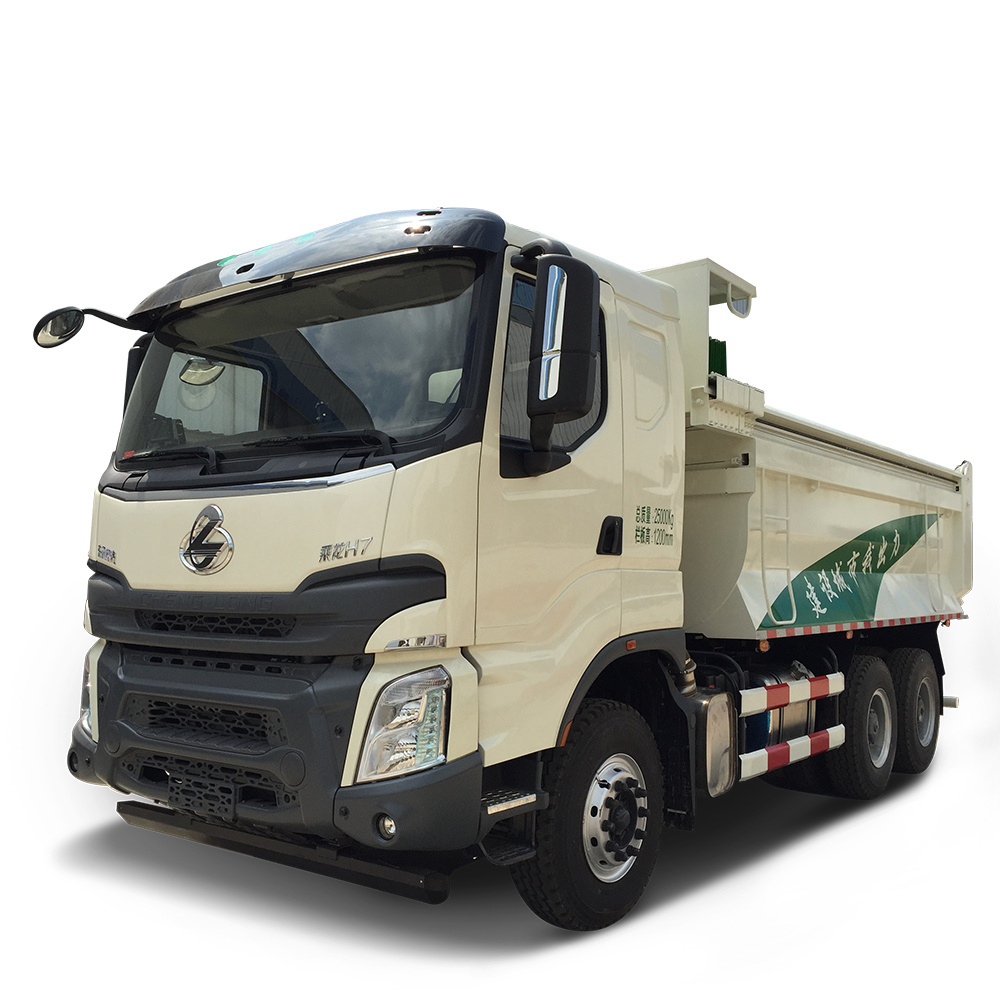

Products Description
The new Chenglong truck is on sale, with strong performance and affordable price. It brings a good use experience with Yuchai engine, and links with Yuchai overseas service stations to ensure good after-sales service.The company also has a discount on the sales price of inventory trucks. meanwhile If you need used trucks or inventory truck of other brands, you can contact customer service.
Details Images
|
Item model
|
3H7YM38D35W9B（LZ3250M5DB）
|
|
Drive type
|
6×4
|
|
Cabin
|
H72S
Chenglong H72S Canbin |
|
Engine
|
YUCHAI ENGINE EURO Ⅴ385PS
|
|
Transmission
|
FAST 12JSD180T (8 gear spline power take-off)
|
|
Rear axle/Speed ratio
|
2*300 Cast steel narrow wheelbase axle/5.262/widen brake
|
|
Front axle
|
9.5T
|
|
Steering gear
|
Import
|
|
Clutch
|
Ф430 pull type
|
|
Tyre
|
12.00R20-18PR
|
|
Wheel Base (mm)
|
3500+1350
|
|
Reference dimension(mm)
|
5000*2300*650
|
|
Curb Weight (KG)
|
12500
|
|
GVW (KG)
|
25000
|
|
Fuel Tank
|
350L Aluminum |
|
Cabin Configuration
|
Mechanical full-floating cab suspension, electro-hydraulic flip, driver seat with air damping, metallic paint, power windows,
remote control central lock, door lower trim panel, manually adjustable split rearview mirror, automatic air conditioner; |
|
Others Configuration
|
Double U-bolts, large connecting plate, oil-bath air filter,16mm thickened steel rim, spare wheel with no spare wheel
carrier,WABCO valve for the whole vehicle, no ABS, auminum alloy air reservoir, manual adjusting arm, direct-current fan,front and rear stabilizer bar,front wheel trample circle, water tank guard railing, multi-state switch. |
Yuchai engine：strong power, fuel saving and efficient.
Tire:
Can be matched with the whole aluminum alloy wheel vacuum wheel, reduce the weight of the vehicle
Driving building: anti penetration protective device in front of the cab, anti bending design at the front end of the girder, anti-collision steel beam of the door and other safety configurations, taking into account the safety of the driver
The driver's cab space expansion design allows the driver to have a good extension space when resting in the car
multi-function steering wheel profile optimization increases friction, easy to control and a multi-function key is integrated on the steering wheel to control cruise-control-system
