Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
China
-
Brand Name:
-
koen
-
Weight:
-
100 KG
Quick Details
-
Machinery Capacity:
-
400BPH, 200BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
China
-
Brand Name:
-
koen
-
Weight:
-
100 KG
Products Description

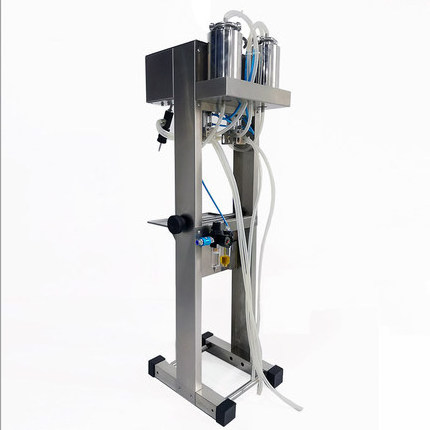

The Four-head vacuum liquid filling machine is pure pneumatic equipment and does not require electricity . It is one of our most economical filing machines ,It is especially suitable for filling small-dose liquid products such as perfume and toilet water It uses a vacuum level filling principle that maintains the same filling level regardless of the consistent volume of the bottle . This kind of filling machine can prevent from spreading out fragrance,which is good for filling perfume.
This series of models are easy to operate , the operator only needs to clamp the bottle under the filling head.
Product Paramenters
|
Model
|
KN-4-250
|
|
|
|
|||
|
Bottle height
|
≤250mm
|
|
|
|
|||
|
Max diameter (bottle hole)
|
≤35mm
|
|
|
|
|||
|
Filling speed
|
40 bottles/min
|
|
|
|
|||
|
Filling heads
|
4 heads
|
|
|
|
|||
|
Air pressure
|
0.4Mpa
|
|
|
|
|||
|
Weight
|
100kg
|
|
|
|
|||
|
Suction speed
|
5.5L/min
|
|
|
|
|||
|
Power
|
220V/50Hz
|
|
|
|
|||
|
Control
|
PLC + Touch Screen
|
|
|
|
|||
|
Bottle type
|
Glass bottle, Plastic Bottle
|
|
|
|
|||
