Quick Details
-
Size:
-
14000*2820*1820mm
-
Place of Origin:
-
Shandong, China
-
Axle:
-
FUWA/BPW/Chinese Brand
-
Suspension:
-
Mechanical / Air Suspension
-
Landing Gear:
-
Standard 28Ton
-
Tire specification:
-
12R22.5 Vacuum Or Customized
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Brake System:
-
Dual Line Braking System
-
Function:
-
container chassis
-
Usage:
-
terminal chassis
-
Color:
-
Custom's Requirement
-
Product name:
-
port use container transportation terminal chassis, bomb cart trailer
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
30-100 TONS
-
Brand Name:
-
Fudeng Terminal Chassis
-
Size:
-
14000*2820*1820mm
-
Place of Origin:
-
Shandong, China
-
Axle:
-
FUWA/BPW/Chinese Brand
-
Suspension:
-
Mechanical / Air Suspension
-
Landing Gear:
-
Standard 28Ton
-
Tire specification:
-
12R22.5 Vacuum Or Customized
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Brake System:
-
Dual Line Braking System
-
Function:
-
container chassis
-
Usage:
-
terminal chassis
-
Color:
-
Custom's Requirement
-
Product name:
-
port use container transportation terminal chassis, bomb cart trailer

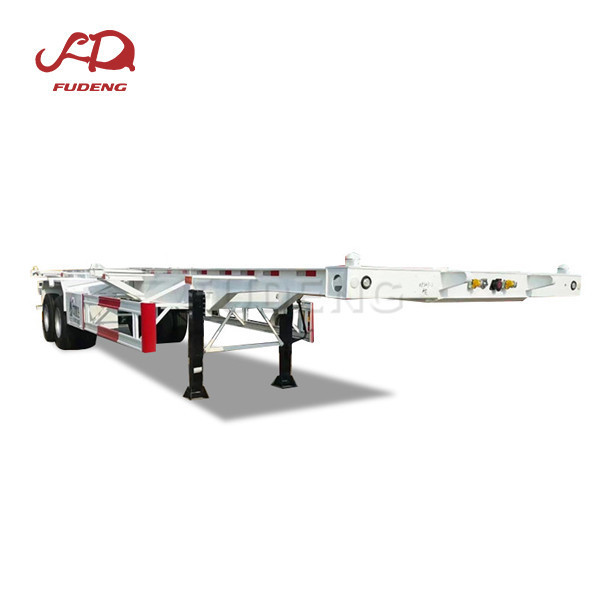

Port used container chassis trailer 20ft 40ft 45ft bomb carts terminal trailer
- Cornerless Frame Design.
- Heavy Duty Outer Container Guides.
- Center Container Stops are Spring Loaded and Designed to Accommodate Different Container Sizes and Twin Twenty Spacing Hands Free.
- Quick Loading and Unloading – No Twist Locks.
- Efficient Transportation throughout your terminal.
- Tough High Strength Steel and Low Maintenance.
- Bolt-on King Pin.
- Front and Rear Angled Buffers.
- Heavy Duty Tire and Axle Guard.
Our terminal chassis , tractor trailer chassis , container chassis imagines .
bobm carts container chassis trailer for sale
2 axles 45 tons capacity terminal container chassis semi trailer
Terminal 20ft 40ft 45ft container chassis port trailer
Long distance transport skeletal semi trailer
Specifications |
|
Dimension |
12.5m×2.5m×1.5m (Outside) |
Payload |
35T-75T |
Tare weight |
About 4.5T--8.5T |
Twistlock |
4, 8, 12 units or customized |
Chassis |
|
Frame |
Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material |
Frame Beam |
Upper and lower plate is20mm,middle is10mm.height is 500 mm |
Frame Floor |
The Thickness is 3-8 mm flat bed |
Axle |
2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear |
JOST (D200T)or CHINA BRAND 28T |
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension |
Mechanical suspension/Germany or America type/air suspension |
Leaf Spring |
90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks. |
Rim |
8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional |
Tire |
11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional |
container transportation chassis , tractor trailer chassis , container chassis blueprint.
Before Manufacturing, We will send a design drawing to our customer for him to check and confirm .
We can design
- 20ft, 40ft 45ft container trailer
- 4, 8, 12 units twistlocks
1. We have an experienced and technological team to customize the best products for customers according to the demand strictly .
2. We will do quality text from the production of each t railer part to the finish of the whole trailer.
(1) We use high-intensive steel to achieve high (2) Both the skeleton and the twistlock is designed
capacity
b
ut low weight. as inside and out side
strengthening
.
What we can provide you
- Professional technical support.
- Reasonable financial suggestion.
- Economical Transportation planning.
- Comprehensive after-sale service.
