Quick Details
-
Power:
-
2*11kw 2*15kw
-
Dimension(L*W*H):
-
2050*725*1460mm
-
Product name:
-
Concrete Floor Shot Blasting Machine
-
Application:
-
shot blaster machine
-
Type:
-
Shot Blasting Machine Equipment
-
Function:
-
Road Surface Shot Blasting
-
Blasting media:
-
Steel shot
-
Usage:
-
oil storage tank, steel deck derusting, steel plate derusting
-
Keywords:
-
Shot Blast Cleaning Equipment
-
Dust collector:
-
automatic back blowing vacuum cleaner
-
Blasting width:
-
270mm 550mm 850mm
-
Blast wheel:
-
H400 Impeller
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Weight (KG):
-
550 KG
-
Power:
-
2*11kw 2*15kw
-
Dimension(L*W*H):
-
2050*725*1460mm
-
Product name:
-
Concrete Floor Shot Blasting Machine
-
Application:
-
shot blaster machine
-
Type:
-
Shot Blasting Machine Equipment
-
Function:
-
Road Surface Shot Blasting
-
Blasting media:
-
Steel shot
-
Usage:
-
oil storage tank, steel deck derusting, steel plate derusting
-
Keywords:
-
Shot Blast Cleaning Equipment
-
Dust collector:
-
automatic back blowing vacuum cleaner
-
Blasting width:
-
270mm 550mm 850mm
-
Blast wheel:
-
H400 Impeller
Product Description
Concrete floor road shot blasting machine, the
shot blaster
can clean the road surface and steel plate and is used for a variety of roads, bridges, buildings and other anti-construction.
Specification
|
Model
|
YG-270
|
YG-550
|
YG-850
|
|
Diameter of shot blasting wheel
|
270mm
|
550mm
|
850mm
|
|
Impeller diameter
|
200mm
|
200mm
|
200mm
|
|
Motor power
|
11kw
|
2*11kw
|
2*15kw
|
|
Steel shot consumption
|
10g/m2
|
10g/m2
|
10g/m2
|
|
Cleaning efficiency of concrete surface
|
≥180m2/h
|
≥400m2/h
|
≥600m2/h
|
|
Cleaning efficiency of steel plate surface
|
≥15-25m2/h
|
≥75-100m2/h
|
≥100-160m2/h
|
|
Diameter of dust removal connecting pipe
|
120mm
|
150mm
|
150mm
|
|
Matching dust collector
|
Seven core automatic back blowing vacuum cleaner
|
Eight core automatic back blowing vacuum cleaner
|
Eight core automatic back blowing vacuum cleaner
|
|
Dust Collector
|
|
|
|
Model
|
YGHC0810D
|
|
|
Number of filter elements
|
8
|
|
|
Rated power
|
4KW fan + 3KW air compressor
|
|
|
Cleaning form
|
Automatic blowback cleaning
|
|
|
Ash hopper
|
small barrow
|
|
|
Size
|
2030*870*1500mm
|
|
|
Weight
|
580kg
|
|
Application
Pavement road shot blasting machine can clean up the surface of concrete floating slurry and impurities at one time, and has other wide applications:
1. Cleaning of surface attachments and preparation of base layer in front of thin cover;
2. Surface roughening, renovation, pre-treatment of various functional pavement to
waterproof
: highway bridge deck, tunnel concrete floor, high-speed railway floor, bridge deck, workshop floor, underground garage, sidewalk, airport runway, municipal road.
3.
Road Marking Line Removal Machine.
Clean up signs and old coatings;
4. Recovery of skid resistance;
5. Painting cleaning: large cruise deck, large oil storage tank, steel deck derusting, steel plate derusting;
5. Painting cleaning: large cruise deck, large oil storage tank, steel deck derusting, steel plate derusting;
Details Images

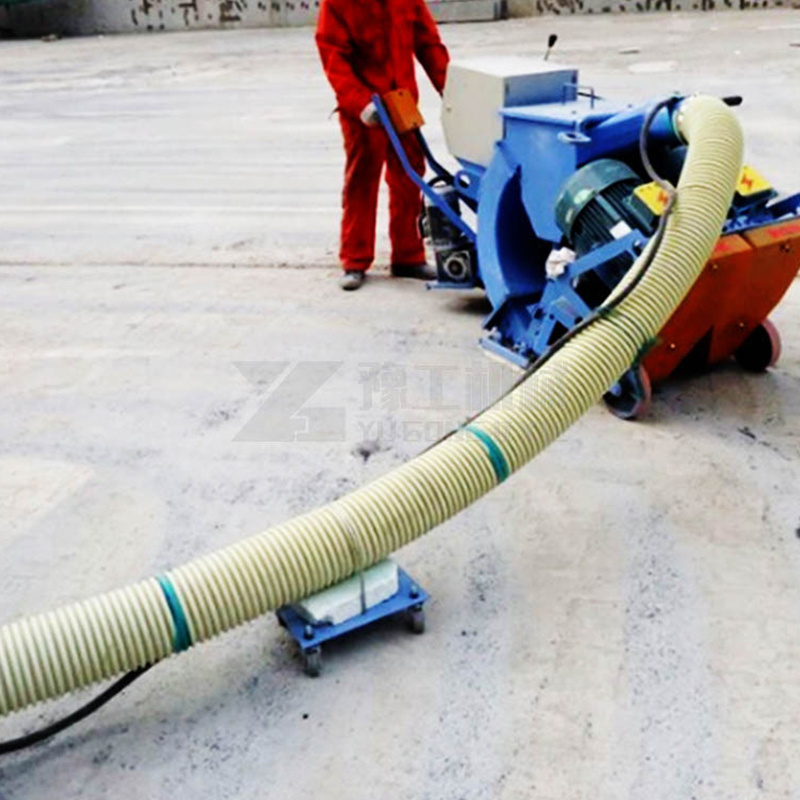

Construction site
Packing & Delivery
Shot blaster concrete road shot blasting machine,
Steel plate derusting shot blasting machine
wooden case package
