Quick Details
-
Model Number:
-
Toggle Switch E-TEN1122
-
Mechanical Life:
-
100000 Cycles, 10000cycles
-
Product name:
-
Toggle Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Operating force:
-
200gf/250gf
-
Certification:
-
Reach, Rohs, TUV, CCC, CE, ISO9001
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wintai-Tech Toggle Switch
-
Model Number:
-
Toggle Switch E-TEN1122
-
Mechanical Life:
-
100000 Cycles, 10000cycles
-
Product name:
-
Toggle Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Operating force:
-
200gf/250gf
-
Certification:
-
Reach, Rohs, TUV, CCC, CE, ISO9001

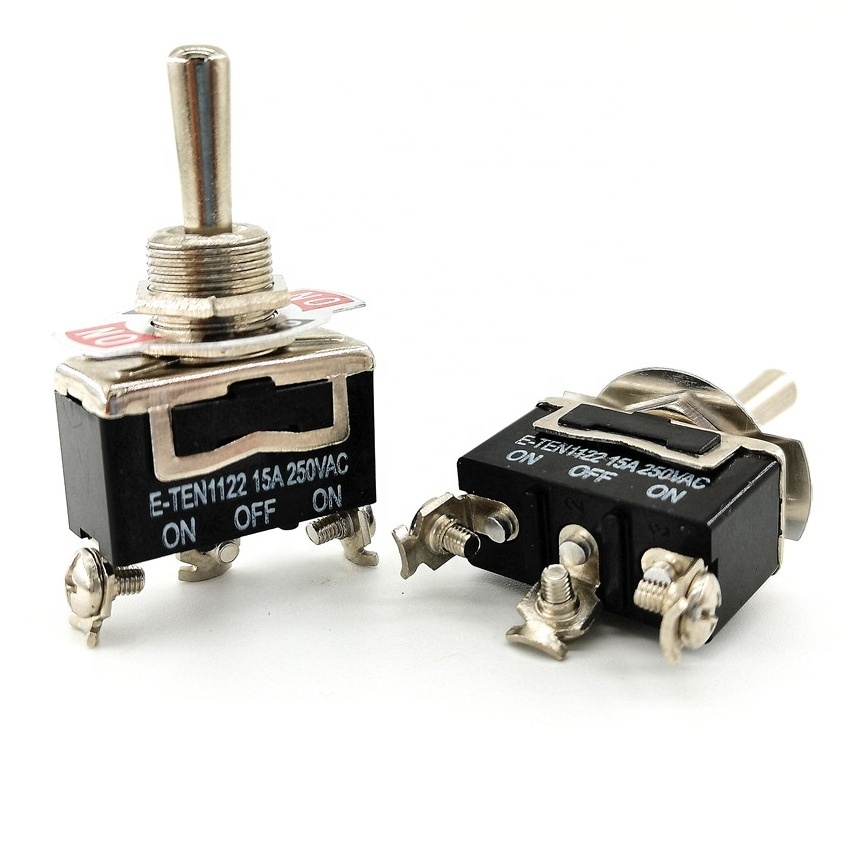

Toggle Switch
A toggle switch refers to a switch that can swing back and forth within a certain range. It is commonly used as a control component in electronic circuits and is a normally closed switch. The toggle switch is a metal arm that changes the state of the contacts (on or off) during the swing process, thereby controlling the on-off of electronic circuits. In normal use, when the metal arm is subjected to external forces, it will undergo elastic deformation, resulting in changes in the state of the contacts.
Details Images
The circuits characteristics
PCB installation method
Product Paramenters
|
Product Name
|
Rocker Switch
|
|
Current Rating
|
10A 250VDC
|
|
INSULATION RESISTANCE
|
10
8
Ω min
|
|
Operating Force
|
250gf
|
|
Waterproof IP
|
IP65
|
|
Operating Temperature
|
-25oC ～ +80oC
|
|
Life Time
|
10,000 Cycles
|
Products Description
Product Structure Description
A toggle switch usually consists of metal lever, swing plates, contacts, springs, and other components, as shown in the figure. Due to the action of the metal arm, it can vibrate freely within a certain range. Toggle switches have the characteristics of simple structure, high reliability, and easy installation, and are widely used in fields such as electronic circuit control, automation equipment switches, and electric toys. Especially in electric toys, toggle switches can serve as triggers to achieve automatic control and switching of circuits.
