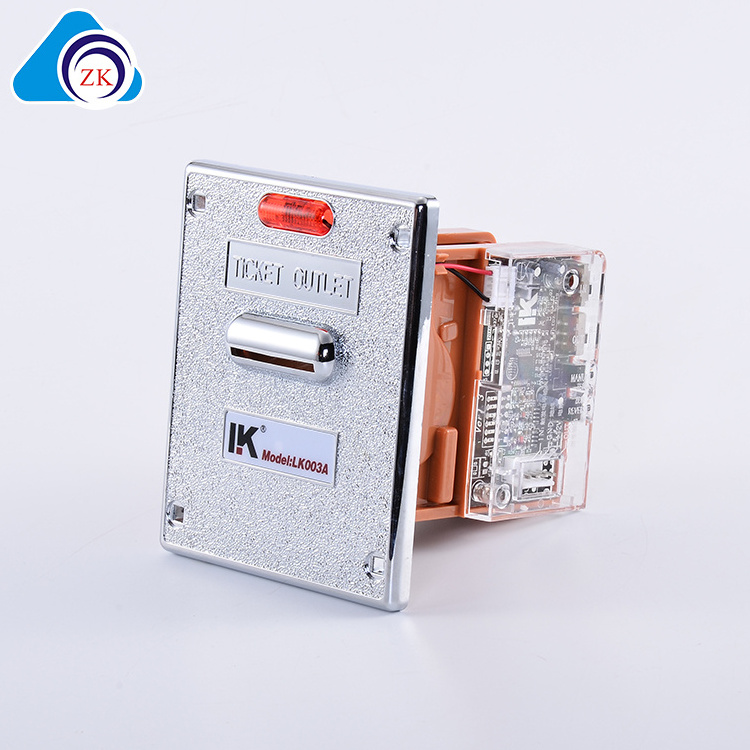

Hot Sale Parking Ticket Dispenser Use In Arcade Machine,Newest Automatic Ticket Vending Machine Ticket Dispenser

Hot Sale Parking Ticket Dispenser Use In Arcade Machine,Newest Automatic Ticket Vending Machine Ticket Dispenser

Panel materials: plastic / metal
Colour: silver
Ticket length: 50mm~120mm
Ticket width: 29mm
Pulse width: 50ms
Operaing Voltage: DC+12V+10%
Operating current: <30mA
Load current: <1A
Output mode: 0C.
Pulse width: 50ms
Output current: <1A
Input low voltage: <1.5V
Input high voltage: 2V-24V
Speed of tickets: 250mm/s(about 5PCS)
Package: 20PCS/SET
Certificate: CE
Function: cutting ticket

Feature:

1.The ticket guide groove is removable and convenient for cleaning
2.Exclusive program control
3.Issue the ticket fast and accurate
4.Set the reverse button to clear the blocked ticket faster
5.Inner brake, no canvassing
6.Integrated ticket proportional adjustment switch
7.Many tickets one score, one ticket many scores
Common Exception Handing
1.The tickets are blocked:
Pull out the upper guided board from the ticket machine's back, and clear away the jammings.
2.Tickets out not matching to the score-ticket ratio:
Firstly check the circuit connect or not, if the circuit is normal, then replace the ratio switch with a new one.
3.Panel LED Instructions failure:
Check whether the circuit voltage is too low or electric eye is bad.
4.NO ticket.
A. Check the machine power outlet connect or not, poorly connect or not.
B. Check input level is correct or not.
C. Check whether something is blocked in the ticket channel.
5.More ticket:
Check for foreign objects blocking the holes of tickets or not.
