Quick Details
-
Voltage:
-
380V or Customizable
-
Power:
-
20~100KW (customized)
-
Dimension(L*W*H):
-
Customized Size
-
After sales service:
-
engineers available on customer's site
-
Chamber size:
-
chamber size can be customized
-
Raw coating material:
-
aluminum, wire &tungsten wire etc.
-
Coating Application field:
-
Plastic parts such as perfume caps/bottles, shoes heels,etc.
-
Coating color:
-
Shinning silver, Gold Color, rainbow color, etc.
-
Coating Technology:
-
Thermal Resistance Evaporation Coating Technology
-
Installation and training:
-
free oversea installing and training service
-
Control model:
-
PLC+Touch screen+Alarm system , Full Automatic
-
Vacuum system:
-
Diffussion pump/ molecular pump+roots pump+rotary vacuum pump
-
Ultimate vacuum:
-
5*10-4pa
-
Weight:
-
2tons to 15tons
-
Certification:
-
ISO9001:2015 & CE&TUV
Quick Details
-
Machine Type:
-
vacuum coating
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CICEL
-
Voltage:
-
380V or Customizable
-
Power:
-
20~100KW (customized)
-
Dimension(L*W*H):
-
Customized Size
-
After sales service:
-
engineers available on customer's site
-
Chamber size:
-
chamber size can be customized
-
Raw coating material:
-
aluminum, wire &tungsten wire etc.
-
Coating Application field:
-
Plastic parts such as perfume caps/bottles, shoes heels,etc.
-
Coating color:
-
Shinning silver, Gold Color, rainbow color, etc.
-
Coating Technology:
-
Thermal Resistance Evaporation Coating Technology
-
Installation and training:
-
free oversea installing and training service
-
Control model:
-
PLC+Touch screen+Alarm system , Full Automatic
-
Vacuum system:
-
Diffussion pump/ molecular pump+roots pump+rotary vacuum pump
-
Ultimate vacuum:
-
5*10-4pa
-
Weight:
-
2tons to 15tons
-
Certification:
-
ISO9001:2015 & CE&TUV
You are here:Home>>Evaporation(plastic) vacuum coating machine

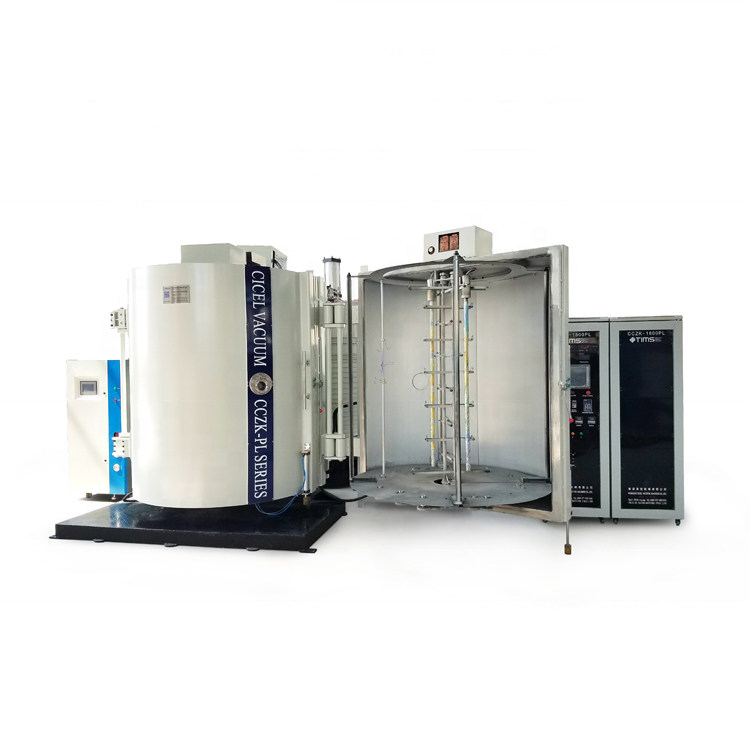

Plastic Vacuum Coating Machine / Thermal Evaporation Vacuum Coating Machine
|
configuration Model |
CCZK-1000EL |
CCZK-1200EL |
CCZK-1400EL |
CCZK-1800EL |
CCZK-2200EL |
Customized Size is available |
|
Chamber size(MM) |
D1000*H1200 |
D1200*H1500 |
D1400*H1800 |
D1800*H2000 |
D2200*H2400 |
Customized |
|
Vacuum system |
Diffusion pump/Molecular pump + Roots pump + Rotary pump + Holding pump + Cryogenic pump(optional) |
Customized |
||||
|
Evaporation power |
10KW |
15KW |
20KW |
30KW |
40KW |
Customized |
|
Evaporation source |
20sets |
26sets |
36sets |
52sets |
68sets |
Customized |
|
Ion glow cleaning system |
5KW |
5KW |
10KW |
15KW |
20KW |
Customized |
|
Control system |
PLC+HMI Full automatic + Remote control system ( optional) |
Customized |
||||
|
Ultimate vacuum |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
Customized |
|
Total power |
30.6KW |
37.5KW |
58.5KW |
96KW |
125KW |
Customized |
|
Coating Cycle time |
6 to 10mins one cycle ( Depending on the coating film layer of different coating products) |
Customized |
||||
|
Delivery container size |
1set 20GP |
1set 20GP |
1set 40GP |
1set 40HQ |
1set 40HQ |
Customized |
|
Machine installing time |
5days (1engineer) |
5days (1engineer) |
7days (1engineer) |
7days (2engineers) |
7days (2engineers) |
Customized
|
