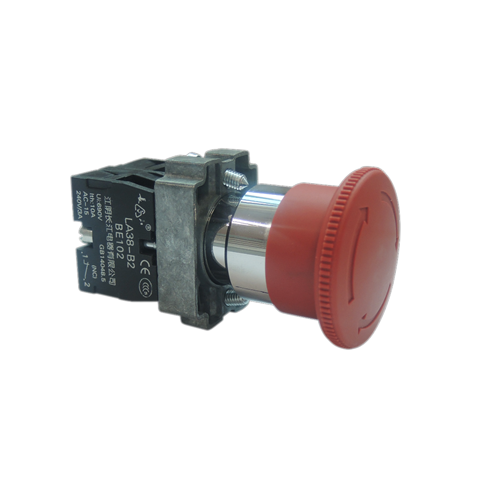

LA38 Series 1NO or 1NC emergency stop mushroom head push button switch

LA38 Series 1NO or 1NC emergency stop mushroom head push button switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $4

≥100 Pieces

US $3.6

≥500 Pieces

US $3.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Jiangyin Changjiang electric

Model Number:: LA38-B2BS5**

Product name:: emergency stop mushroom head

Base material:: Flame retardant PBT

contact material:: AgNi10/Cu

Anti vibration:: 15g

shock resistance:: push button:70g,selector button switch :200g

electron bombardment protect:: level I,Conforming to IEC 536 and NF C 20-030

short-circuit protection:: 10A fusible core type gl comply with IEC 269-1,VDE 0660-200

operation frequency:: 3600 times / hour

weight:: 0.1kg

Operation type:: Self-locking

Certification:: CE

Quick Details

Protection Level:: IP 65

Max. Current:: AC-15:Ue:AC240V/Ie:3A

Max. Voltage:: 690V

Place of Origin:: Jiangsu, China

Brand Name:: Jiangyin Changjiang electric

Model Number:: LA38-B2BS5**

Product name:: emergency stop mushroom head

Base material:: Flame retardant PBT

contact material:: AgNi10/Cu

Anti vibration:: 15g

shock resistance:: push button:70g,selector button switch :200g

electron bombardment protect:: level I,Conforming to IEC 536 and NF C 20-030

short-circuit protection:: 10A fusible core type gl comply with IEC 269-1,VDE 0660-200

operation frequency:: 3600 times / hour

weight:: 0.1kg

Operation type:: Self-locking

Certification:: CE

Product Overview

LA38-B2B series 22mm metal emergency stop push button switch

LA38-B2B m etal series button, modular combination structure, screw fixed contact module and luminous module, easy installation and maintenance, reliable structure. Head protection level up to IP65,customizable IP66.

Features

-Certificate: TUV/CE/RoHS

-Mounting hole size: Φ22.3mm

-Material: Zinc-aluminum alloy head, strong and durable

-Contacts Material: Silver tin oxid contacts,reliable on-off, long electrical life

-Structure: Modular composite structure

Product Specification

Product Name	Emergency stop push-button switch
Product Type	LA38-B2BS54# (# means contact code)
Contact code meaning	1: 1NO, 2: 1NC, 3: 2NO, 4: 2NC, 5:1NO+1NC
Products Standard	GB/T14048.5
Rated insulated Voltage (Ui)	690V
Stipulated hot current Ith	10A
Use category	AC-15	DC-13
Rated voltage	AC 240/380 V	DC 125/250 V
Rated Current	3/1.9 A	0.55/0.27 A
Rated frequency	50/60Hz	—
Protection degree	IP65 (IP66 customizable)
Contact resistance	≤50mΩ
Insulated resistance	≥50MΩ
Environment temperature	-25～70℃
Storage temperature	-40～70℃
Relative humidity	≤90%
Electrical life	AC ≥100,000 times
Mechanical life	300,000 times
Contacts plating	Gold-plated 0.02-0.03μm

Button Size

Mounting Hole Size

A:Φ22.3 B≥50 C≥42

Certifications

Successful Application

Our Company

Company Headquarter

Jiangyin Changjiang Electric Appliance Co., Ltd has become a leading manufacturer of low-voltage electrical appliances and lighting of construction machinery. Our products are widely used in power, machinery, industrial control, elevator, communication, rail transit, new energy and construction machinery. Its novel design and reliable product features have won the unanimous favor of the majority of users.

Workshop

The facotry of Jiangyin Changjiang Electric Appliance covers an area of more than 6,000 square meters,and has several production lines,including signal lamp line,push button line,cam chang-over switch line,transformer line and electrical line.There are 30 excellent R&D staff in technology center and 300 workers in production workshop.Professional design and inspection support our products in best quality and in shortest delivery time.

Product Packaging

Different box size

Professional packaging
