Quick Details
-
Model Number:
-
L SERIES ROCKER SWITCH
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000 cycles
-
Product name:
-
L SERIES DRIVING LIGHTS SPST 12V LED ROCKER SWITCH
-
Material:
-
ABS
-
Input Voltage:
-
12V 20A DC/24V 10A DC
-
Power outlet:
-
DC 12V
-
Waterproof Level:
-
IP65
-
Operating Temperature:
-
-25℃-80℃
-
Application:
-
12V -24V Cars, Bus, Marine, etc.
-
LED Light Color:
-
Blue,Red,Green,or Available
-
Color:
-
Black
-
Certification:
-
CE,ROHS
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUJIE
-
Model Number:
-
L SERIES ROCKER SWITCH
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000 cycles
-
Product name:
-
L SERIES DRIVING LIGHTS SPST 12V LED ROCKER SWITCH
-
Material:
-
ABS
-
Input Voltage:
-
12V 20A DC/24V 10A DC
-
Power outlet:
-
DC 12V
-
Waterproof Level:
-
IP65
-
Operating Temperature:
-
-25℃-80℃
-
Application:
-
12V -24V Cars, Bus, Marine, etc.
-
LED Light Color:
-
Blue,Red,Green,or Available
-
Color:
-
Black
-
Certification:
-
CE,ROHS
Products Description

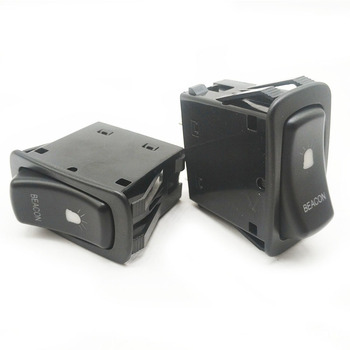

High quality 12V Carling Technologies custom laser-etched LED Light L-Series Rocker Switch
Look no further, this 12V Car Marine Rocker Switch is the best choice for you.
This single-pole single-throw (SPST) L Series type LED rocker switch lets you quickly activate lights on your off-road vehicle, truck, UTV, boat, tractor, or machine.
* Text is illuminated when the vehicle is on, and the legend is illuminated when the switch is pressed ON.
* 20-amp 12V switch has (4) 1/4" male contact terminals to be used with 1/4" female push-on connectors.
* The sealed, watertight rocker switch easily installs in industry standard panel cutouts with the included rubber gasket
(optimal panel thickness: 0.13" or 0.03" min. - 0.19" max.).
* Requires a 0.83" x 1.45" hole (industry standard)
* Great for Polaris, Can-Am, Honda, Kawasaki, Toyota, Kubota, John Deere & many more factory cut-outs.
This single-pole single-throw (SPST) L Series type LED rocker switch lets you quickly activate lights on your off-road vehicle, truck, UTV, boat, tractor, or machine.
* Text is illuminated when the vehicle is on, and the legend is illuminated when the switch is pressed ON.
* 20-amp 12V switch has (4) 1/4" male contact terminals to be used with 1/4" female push-on connectors.
* The sealed, watertight rocker switch easily installs in industry standard panel cutouts with the included rubber gasket
(optimal panel thickness: 0.13" or 0.03" min. - 0.19" max.).
* Requires a 0.83" x 1.45" hole (industry standard)
* Great for Polaris, Can-Am, Honda, Kawasaki, Toyota, Kubota, John Deere & many more factory cut-outs.
Specification
|
Product name
|
High quality 12V Carling Technologies custom laser-etched LED Light L-Series Rocker Switch
|
|
Material
|
ABS
|
|
Input Voltage
|
12V 20A DC/24V 10A DC
|
|
Operating Temperature
|
-25℃-80℃
|
|
Application
|
12V -24V Cars, Bus, Marine, etc.
|
|
LED Light Color
|
Blue,Red,Green,or Available
|
|
Mounting Type
|
Panel Mount, Snap-In
|
|
Circuit
|
SPST-NO
|
|
Switch Function
|
Off-Mom
|
|
Current Rating (Amps)
|
20A (DC)
|
|
Voltage Rating - DC
|
12 V
|
|
Actuator Type
|
Concave (Curved)
|
|
Color - Actuator/Cap
|
Black
|
|
Illumination Type, Color
|
-
|
|
Illumination Voltage (Nominal)
|
-
|
|
Termination Style
|
Quick Connect - 0.250" (6.3mm)
|
|
Ingress Protection
|
IP67 - Dust Tight, Waterproof
|
|
Features
|
Sealed - Fully
|
|
Panel Cutout Dimensions
|
Rectangular - 44.04mm x 22.02mm
|
