Quick Details
-
Place of Origin:
-
Henan, China
-
Weight:
-
14kg
-
Battery type:
-
nife battery
-
Nominal Voltage:
-
1.2V
-
Certificate:
-
CE/ISO/IEC60623/IEC62133
-
System Voltage:
-
12V 24V 48V
-
Container:
-
ABS/PP
-
Wide operation temperature range:
-
-40'C~60'C
-
Long service life:
-
15~20 years
-
Material:
-
ABS /PP Containers
Quick Details
-
Battery Size:
-
167*162*345mm
-
Brand Name:
-
Hengming
-
Model Number:
-
TN200
-
Place of Origin:
-
Henan, China
-
Weight:
-
14kg
-
Battery type:
-
nife battery
-
Nominal Voltage:
-
1.2V
-
Certificate:
-
CE/ISO/IEC60623/IEC62133
-
System Voltage:
-
12V 24V 48V
-
Container:
-
ABS/PP
-
Wide operation temperature range:
-
-40'C~60'C
-
Long service life:
-
15~20 years
-
Material:
-
ABS /PP Containers
Outstanding Advantages of Hengming Batteries
Hengming produces four series including Ni-Fe battery, Ni-Mh battery,Ni-Cd battery,material and component of the battery more than 30 years,The annual sales volume 300 million Ah put us up to Chinese top!

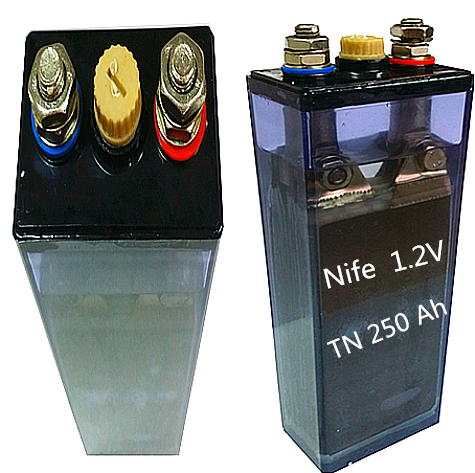

Edison Nife battery TN200AH for solar system 12v 24v 48v 110v 220v
Advantage:
1) Battery type:
Edison Nife battery TN200AH for solar system 12v 24v 48v 110v 220v
2) Long service life : 15-30 years
3) Application：
UPS ,Solar ,Home ,EPS ,Wind ,Telecom
4) System voltage: 12v 24v 48v
110v 220v
5) Certification: CE
/ISO/IEC60623/IEC62133
6) custom made: OEM/ODM
TN Series Parameters
Pocket Plate-----Pocket Plate
|
Cell Type
|
Nominal Voltage
(V)
|
Rated Capacity (Ah)
|
Dimension(mm)
L W H
|
|
|
Thread of pole
|
Weight (filled) (Kg)
|
Electrolyte Volume(L)
|
Container Material
|
||
|
TN10
|
1.2
|
10
|
85
|
39
|
150
|
M8
|
1
|
0.2
|
ABS/PP
|
||
|
TN20
|
1.2
|
20
|
114
|
52
|
266
|
M10*1.5
|
2
|
0.6
|
ABS
|
||
|
TN30
|
1.2
|
30
|
114
|
52
|
266
|
M10*1.5
|
2.2
|
0.5
|
ABS
|
||
|
TN50
|
1.2
|
50
|
138
|
61
|
266
|
M10*1.5
|
3.2
|
0.7
|
ABS/PP
|
||
|
TN60
|
1.2
|
60
|
141
|
71
|
295
|
M10*1.5
|
4
|
1.1
|
PP
|
||
|
TN80
|
1.2
|
80
|
141
|
71
|
295
|
M10*1.5
|
4.6
|
0.9
|
PP
|
||
|
TN100
|
1.2
|
100
|
139
|
79
|
362
|
M10*1.5
|
6
|
1.4
|
PP
|
||
|
TN200
|
1.2
|
200
|
167
|
162
|
345
|
M20*1.5
|
14
|
3.3
|
ABS/PP
|
||
|
TN250
|
1.2
|
250
|
167
|
162
|
345
|
M20*1.5
|
14
|
3.4
|
ABS/PP
|
||
|
TN300
|
1.2
|
300
|
277
|
140
|
450
|
M16
|
21
|
6.0
|
PP
|
||
|
TN400
|
1.2
|
400
|
277
|
277
|
140
|
M16
|
22.6
|
6.0
|
PP
|
||
|
TN500
|
1.2
|
500
|
277
|
140
|
490
|
M20*1.5
|
6.0
|
6.0
|
PP
|
||
|
TN600
|
1.2
|
600
|
285
|
172
|
490
|
M20*1.5
|
34.6
|
7.5
|
ABS
|
||
|
TN700
|
1.2
|
700
|
285
|
172
|
490
|
M20*1.5
|
37
|
8.4
|
ABS
|
||
|
TN800
|
1.2
|
800
|
395
|
185
|
560
|
M20*1.5
|
57.5
|
15.5
|
ABS
|
||
|
TN900
|
1.2
|
900
|
395
|
185
|
560
|
M20*1.5
|
59
|
15.0
|
ABS
|
||
|
TN1000
|
1.2
|
1000
|
395
|
185
|
560
|
M20*1.5
|
57.6
|
14.0
|
ABS
|
||
|
TN1200
|
1.2
|
1200
|
395
|
185
|
560
|
M20*1.5
|
11.3
|
11.3
|
ABS
|
||
Henan Hengming Fengyun Power Source Co.,Ltd. is founded in 1986 and located in the rriiddle of China transport central area, Xinxiang city which is the first group developing industry city in New China. According the Wide application KPL Type (Low Discharge Rate)developing need our new subsidiary company(Hen an Hengming New Energy Co., Ltd.) is finished
and had working in 2014.
Hengming factory total area is 44 thousands square meters.More than 300 staff is working here, among of which has over 40 senior and semi-seniorengineering technicians specializing in researching chemical battery and its managementsystem. Parts of our engineers own more than 35 years working experience in this battery field.
