Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
UNI-TECH
-
Model Number:
-
Z3040X11A
-
Voltage:
-
220V,380V,400V
-
Dimension(L*W*H):
-
3730*1400*3790mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
1600 KG
-
Product name:
-
Radial Drilling Machine
-
Max. Drilling capacity:
-
40mm
-
Diameter of column:
-
230MM
-
Spindle taper:
-
MT4
-
Spindle travel:
-
180mm
-
Spindle speeds range:
-
75-1200RPM
-
Spindle feeds:
-
6
-
Power of Main motor:
-
2.2KW
-
distance from spindle to table:
-
320-1180mm
-
distance from spindle to column:
-
350-1100mm
Quick Details
-
type:
-
Radial Drilling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
75 - 1200 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
UNI-TECH
-
Model Number:
-
Z3040X11A
-
Voltage:
-
220V,380V,400V
-
Dimension(L*W*H):
-
3730*1400*3790mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
1600 KG
-
Product name:
-
Radial Drilling Machine
-
Max. Drilling capacity:
-
40mm
-
Diameter of column:
-
230MM
-
Spindle taper:
-
MT4
-
Spindle travel:
-
180mm
-
Spindle speeds range:
-
75-1200RPM
-
Spindle feeds:
-
6
-
Power of Main motor:
-
2.2KW
-
distance from spindle to table:
-
320-1180mm
-
distance from spindle to column:
-
350-1100mm

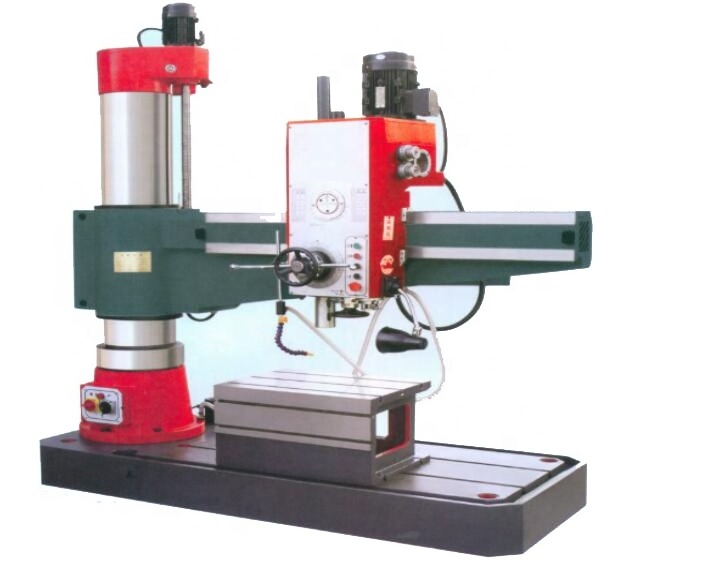

pillar type column mechanical type vertical drilling and hydraulic radial arm drilling machine
| SPECIFICATIONS | Z3040×14/Ⅲ | Z3040X14C | Z3040X11/III | Z3040X11C | Z3040X11A |
| Max.drilling dia(mm) | 40 | 40 | 40 | 40 | 40 |
|
Distance between spindle axis and column (mm) |
350-1370 | 350-1380 | 350-120 | 350-1060 | 350-1100 |
|
Headstock level migration distance(mm) |
1015 | 1030 | 670 | 700 | 950 |
|
distance from spinolde nose to table(mm |
260-1210 | 270-1200 | 170-1120 | 180-1110 | 320-1180 |
| Spinle Cone | 4 | 4 | 4 | 4 | 4 |
| Spindle speed step | 16 | 6 | 16 | 6 | 6 |
| Spindle speed range(rpm) | 32-2500 | 40-1250 | 32-2500 | 40-1250 | 75-1200 |
| Spindle travle(mm) | 270 | 250 | 270 | 250 | 180 |
| Spindle feeding step | 8 | 3 | 8 | 3 | 3 |
| Spindle feeding range(rpm) | 0.10-1.25 | 0.1-0.25 | 0.10-1.25 | 0.1-0.25 | 0.1-0.25 |
|
The rocking shaft rises and falls thespeed(mm/n) |
1.27 | 1.32 | 1.27 | 1.32 | |
| Rocking rotary angle° | ±90° | ±90° | ±90° | ±90° | ±90° |
| Maximum resistance to the spindle(N) | 12250 | 10000 | 12250 | 10000 | |
| Main motor power(kw) | 3 | 3 | 3 | 3 | 2.2 |
| Movements motor power(kW) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| N.W/G.W(KG) | 2200 | 2100 | 1600 | 1500 | 1600 |
| Contoure size machine(mm) | 2053*820*2483 | 1800X810X2300 | 2053*820*2483 | 1500x705x2200 | 1500x705x2200 |
If you are interested in radial arm drilling machine, pls contact me
