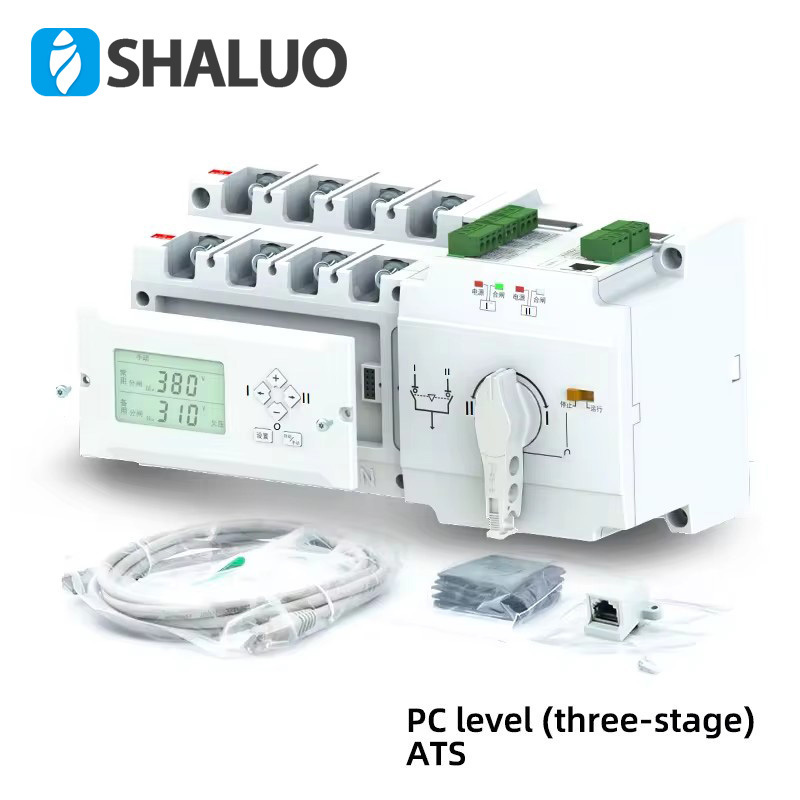

This changeover switch is an microprocessor based PC class device designed to transfer loads automatically and manually from one power source to another in a wide variety of 1-3 phase applications.
The unit monitors 3-phase normal and reserve source voltages, sends remote start command to the generating set and performs
changeover switching between those 2 sources connecting the load circuits to a power source having voltage and frequency within preset limits.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SHALUO
-
Model Number:
-
SLS3-125B
-
Rated Current:
-
63~630A
-
Product Name:
-
SLS3-125B ATS
-
Application:
-
diesel generator
-
Name:
-
Ats Controller Automatic Transfer Switch
-
feature:
-
led display
-
phase:
-
3
-
US:
-
110V/220V
-
China:
-
220V/380V
-
Max. Current:
-
125A
-
Certification:
-
CCC
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
4
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SHALUO
-
Model Number:
-
SLS3-125B
-
Rated Current:
-
63~630A
-
Product Name:
-
SLS3-125B ATS
-
Application:
-
diesel generator
-
Name:
-
Ats Controller Automatic Transfer Switch
-
feature:
-
led display
-
phase:
-
3
-
US:
-
110V/220V
-
China:
-
220V/380V
-
Max. Current:
-
125A
-
Certification:
-
CCC
Product Description
Generator ATS controller automatic transfer switch
63A 100A 125A
250A 400A
630A 1000A
When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system
automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the
generator set; when the mains power returns to normal,
it will automatically switch to restore the mains power supply to the load
after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling
operation.
after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling
operation.
|
Item
|
B Type
|
C Type
|
D Type
|
E Type
|
|||
|
Control power Voltage
|
AC230V 50/60Hz
|
|
|
|
|||
|
Auxiliary supply voltage
|
DC24V
|
|
|
|
|||
|
Voltage measuring Range
|
40~300V
|
|
|
|
|||
|
Power Loss
|
≤10W
|
|
|
|
|||
|
Working postion
|
(Normal power ON, Reserve power ON, OFF) Three working position
|
|
|
|
|||
|
Operation Mode
|
Auto, Manual
|
|
Auto, Manual, Remote
|
|
|||
|
Display mode
|
LED indicator
|
|
LCD Display , LED indicator
|
|
|||
|
Conversion mode
|
Auto Transfer auto recovery / Auto transfer no recovery
|
|
|
|
|||
|
Undervoltage conversion value
|
187V
|
|
160~200V Adjustable
|
|
|||
|
Overvoltage conversion mode
|
263V
|
|
240~290V Adjustable
|
|
|||
|
Conversion delay Function
|
NO
|
|
0~180s Adjust able
|
|
|||
|
Return delay Function
|
NO
|
|
0~180s Adjust able
|
|
|||
|
Phase missing detect
|
Three phase ( B C Phase)
|
|
|
|
|||
|
Generator control
|
Yes(one set relay contact)
|
|
|
|
|||
|
Fire-linkage control
|
Yes(passive contact input, with one set NO passive feedback signal)
|
|
|
|
|||
|
RS485 function
|
NO
|
|
Yes
|
Default None(optional)
|
|||
|
Installation mode
|
Integrated (No display)
|
Add split cinnector,can do split type (Note: integrated type without display)
|
|
|
|||
|
Power underfrequency/Overfrequency detection
|
NO
|
|
|
40Hz~60Hz Adjustable
|
|||
|
Timing start function
|
NO
|
|
|
Timing conversion,
timing start generator |
|||
|
Isolation lock
|
Disconnect position has isolation function,lt can be padlocked at the same time
|
|
|
|
|||
Products Description
Appearance and installation dimensions
S3-80 (three-pole and four-pole have the same appearance and installation dimensions)
