Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
ST-Slope Protection
-
Brand Name:
-
ShiTai
-
Product name:
-
Slope Protection Netting
-
Usage:
-
Protection, Protecting Mesh
-
Color:
-
Silver
-
Feature:
-
Durable, Flexible, High Strength
-
Hole shape:
-
Rectangle
-
Surface treatment:
-
Hot Dipped Galvanzied, Powder Coated
-
Length:
-
30m
-
Width:
-
0.5-2m
-
Keyword:
-
Rock Falling Net
Quick Details
-
Material:
-
Galvanized Steel Wire
-
Type:
-
Chain Link Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
ST-Slope Protection
-
Brand Name:
-
ShiTai
-
Product name:
-
Slope Protection Netting
-
Usage:
-
Protection, Protecting Mesh
-
Color:
-
Silver
-
Feature:
-
Durable, Flexible, High Strength
-
Hole shape:
-
Rectangle
-
Surface treatment:
-
Hot Dipped Galvanzied, Powder Coated
-
Length:
-
30m
-
Width:
-
0.5-2m
-
Keyword:
-
Rock Falling Net

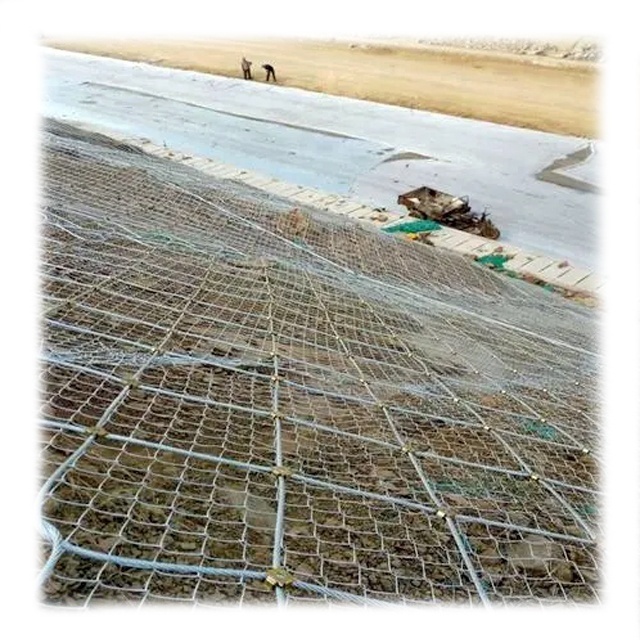

Slope Protection Net
is also called SNS slope protection system, which is made of low-carbon steel wire. It is a protective device used for highway and railway landslides.
According to the characteristics, we divide slope protection into active protection net and passive protection.
The slope protection net system uses hot-dip galvanized steel wire rope as the raw material, and is machined through the preparation of the slope protection net. The direct connection points between the steel wire rope and the steel wire rope are fixed with buckles.
The main components of the active slope protection net are hot-dip galvanized steel wire mesh, high-strength steel wire grid, steel wire anchor, upper and lower support ropes, special anchor pads and edge support ropes.
01.
High-quality Steel Wire
Using hot-dip galvanized steel wire rope as the raw material, it is machine processed through the preparation of slope protection net.
02. Using
High Quality Metal Buckles
The connection point between the steel wire rope and the steel wire rope is fixed with a buckle
03.
Quality Inspection
We will test the finished products each time, and they will be sold only after each size reaches the standard. We have it in stock for fast shipping.
|
Name
|
SNS slope protection system
|
|
Material
|
Hot dipped Galvanized Wire/Galfan Wire/PVC coated Wire
|
|
Wire Diameter
|
2.7 mm, 3.0 mm, etc.
|
|
Mesh Size
|
60 mm × 80 mm, 80 mm × 100 mm, etc.
|
|
Zinc Coating Weight
|
≥ 260 g/m2
|
|
Netting Steel Rope Diameter
|
Ø7.0mm, Ø7.2mm, Ø7.5mm, Ø7.8mm, Ø8.0mm, etc.
|
|
Rope Specification
|
7strands x 19columns
|
|
Zinc Galvanized
|
Over 200g/m2
|
|
Tensile
|
>1770KPA
|
|
Roll Width
|
0.8m/1.0m/1.2m/1.5 m/1.8m/2.0m/2.2m/2.5m/2.8m/3.0m
|
|
Roll Length
|
25-30m or customized
|
|
Support Rope
|
Horizontal and vertical rope diameter are 16mm
|
|
|
Horizontal rope diameter is 16mm, vertical rope diameter is 12mm.
|
Advantages of Slope Protective Netting:
1. It has the characteristics of high flexibility, high protective strength and easy spreading
2. Adapt to various complex terrains
3. Modular installation, more flexible and convenient
4. Short construction period and low construction cost
5. Slope protection net has the functions of soil stabilization and slope protection, making the rock more stable
6. The special anti-corrosion treatment process of the slope protection net makes its service life up to 50-80 years
Applications of slope protection net:
1. Landslide protection, such as slope erupting, wind corrosive.
1. Landslide protection, such as slope erupting, wind corrosive.
2.Control and lead the river and flood.
3.Preventing the water and soil lost, protecting the bridge.
3.Preventing the water and soil lost, protecting the bridge.
Anping Shitai Wire Mesh Products CO., LTD
which is founded in 1991, has been devoted into wire mesh production for 32 years, our main products include
steel wire rope mesh, slope protection netting, hexagonal mesh, chain link fence, gabion mesh, gabion mattress, defensive barrier, crimped screen mesh, etc.
All of them have been up to EU, GB , ISO9001 and ASTM standards. With the philosophy of "Quality first, Customer first, Service first",
Shitai wire mesh has gained good reputation in both domestic and overseas market.
Why Choose Us
1. High Quality Product
We strictly control every step from product material selection, processing to production. All molded products need to go through strict quality inspection before they can be packaged for sale.
2. VIP-Services
Enthusiastic and fast customer service, we have tried our best to meet customer requirements so far;
For safe logistics service, we have international logistics providers who have cooperated with us for more than ten years, which can guarantee the safety and timeliness of product transportation.
3. After Sales
Services
After you receive the goods, we will provide you with satisfactory solutions for all quality issues related to the product. And we can provide a shelf life for you.
Q:Are you factory or Middleman?
A:Yes, we have been in providing the professional products in fence field for 16 years.
Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.
Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.
Q: How about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.
Q:How many days you need to produce one container fence?
A:Production Time: 12-15 days for one container.
A:Yes, we have been in providing the professional products in fence field for 16 years.
Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.
Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.
Q: How about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.
Q:How many days you need to produce one container fence?
A:Production Time: 12-15 days for one container.
