Quick Details
-
Size:
-
20ft 0r 40ft
-
Structure:
-
Steel Luxury Container House
-
Advantage:
-
Fast Install
-
Life Span:
-
30 Years
-
Wall:
-
50mm/75mm Sandwich Panel
-
Main material:
-
Steel Structue Frames
Quick Details
-
Place of Origin:
-
weifang, weifang
-
Brand Name:
-
reachtop/wanlong
-
Color:
-
Customized Color
-
Size:
-
20ft 0r 40ft
-
Structure:
-
Steel Luxury Container House
-
Advantage:
-
Fast Install
-
Life Span:
-
30 Years
-
Wall:
-
50mm/75mm Sandwich Panel
-
Main material:
-
Steel Structue Frames
Products Description
|

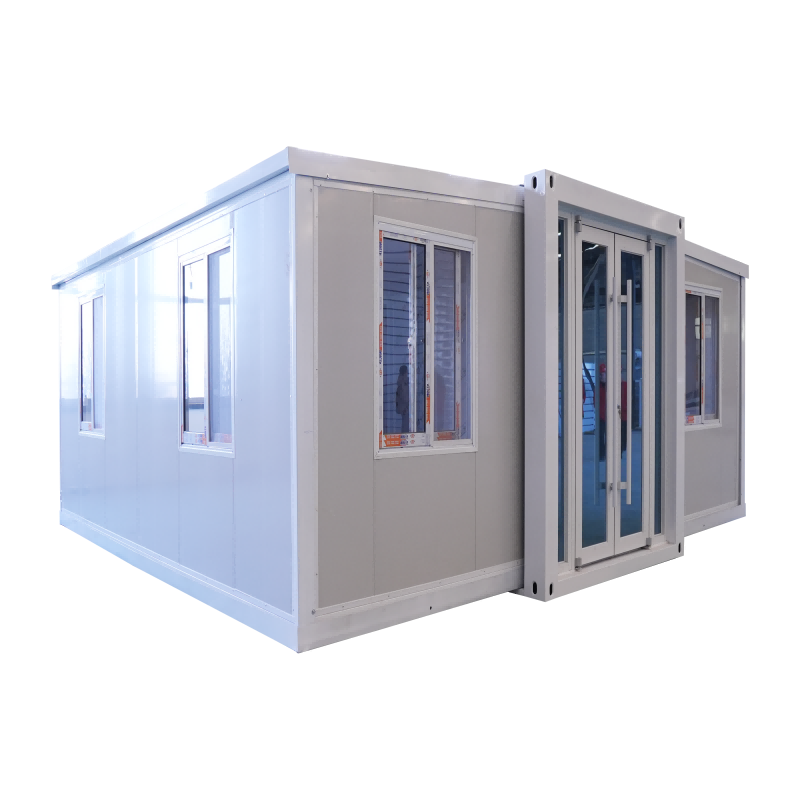

40ft Expandable house Specifications
|
|
|
|
|||
|
Dimensions
|
External dimensions(mm)
|
W6400*L11600*H2480(lower side 2270)
|
|
|||
|
|
Internal dimensions(mm)
|
W6280*L11200*H2280(lower side 2150)
|
|
|||
|
|
Folded(mm)
|
W2160*L11600*H2480
|
|
|||
|
|
Total weight(kg)
|
4800kg
|
|
|||
|
Structure
|
Top side beam
|
t2.5mmQ235B
|
|
|||
|
|
Bottom side member
|
t2.5mmQ235B
|
|
|||
|
|
End side beam
|
t2.5mmQ235B
|
|
|||
|
|
Side wall frame
|
t2.5mmQ235B
|
|
|||
|
|
Subframe
|
t2.5mmQ235B
|
|
|||
|
|
Hanger
|
t4mmQ235B
|
|
|||
|
|
Folding hinge
|
13mm Galvanized hinge
|
|
|||
|
|
Integral frame protective coating
|
Electrostatic spray/straight white plastic powder
|
|
|||
|
|
Top and bottom of middle cabinet
|
80*100*2.5 thick tube
|
|
|||
|
|
Top and bottom of side cabinet
|
40*60*1.7 thick tube
|
|
|||
|
Top
|
External roof
|
t0.5mm Galvanized sheet
|
|
|||
|
|
Interior ceiling
|
t0.3mm 831ceiling board
|
|
|||
|
Panels
|
roof insulation
|
t50mm EPS composite board
|
|
|||
|
|
Side front and rear wall panels
|
t75mm EPS composite board
|
|
|||
|
|
Internal partition
|
t50mm EPS composite board
|
|
|||
|
Floor
|
Middle floor
|
glass magnesium board or cement fiber board
|
|
|||
|
|
Side floor
|
Bamboo flooring
|
|
|||
|
Electric
|
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products must comply
with CE certification. Connect the circuit according to the circuit engineering specification, indoor: 3 LED lights, 3 five-hole single-open sockets, 3 ten-hole sockets, 3 air-conditioning sockets, and 1 20A leakage protector. |
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
Voltage 220V, 50HZ
|
|
|
|||
|
Door
|
Aluminum alloy glass door
|
|
|
|||
|
Window
|
Aluminum window
|
|
|
|||
|
Warranty
|
One year warranty
|
|
|
|||
Design a Container
Reachtop Container Homes
does not only provide affordable and good quality containers alone, but we also take part in designing an exceptionally beautiful container home of your dreams. We work hand in hand with our clients towards only one goal, Satisfaction!
Building a container home really depends on what suits your needs. It takes a lot of research and planning to get to your desired result. You will have to consider a lot of factors but at the end of the day, safety and comfort is still the most important thing to consider when building a container Home.
Model Advantage
1. Convenient for rental investments, mountain cabins, holiday homes, etc.
2. Construction is tested on earthquake, windstorm, and flooding conditions.
3. We maintain high quality construction and have achieved “High Energy Class”.
4. Containers are very endurable since they are made out of corten steel.Corten steel exhibits increased resistance to atmospheric corrosion compared to other steel.
|
Main Materials
|
Galvanized Steel
|
|
Size Avlaiable
|
Customized Size
|
|
Surface Treatment
|
Epoxy
|
|
Color Choice
|
All Color
|
More Related Products
FAQ
Q: Are you a factory or trading company?
A: We are professional factory of prefab house, so we can supply high quality and good price for you
Q: Could you please design a new and unique prefab house for me?
A: Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our
outstanding superiority with no doubt.
outstanding superiority with no doubt.
Q: Does this kind of house can only be used in residential buildings?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel, office, school, entertainment club, light industrial
workshop, etc.
workshop, etc.
Q: Is prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and
9-grade earthquake outside.
9-grade earthquake outside.
Q: How can I get the quotation of the project ?
A: Delivery time depends on order quantities. Generally, the delivery time will be 15-25 days after receiving the deposit.
Q: What is the delivery time?
