Quick Details
-
Power:
-
50KW
-
Dimension(L*W*H):
-
2.75M
-
Weight:
-
4 KG
-
Production Capacity:
-
98%
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Roller width:
-
2000mm
-
Max. Efficient width:
-
1800mm
-
Fabric speed:
-
2~120m/min
-
Tension range:
-
0~60kg
-
Motor power:
-
2 sets * 7.5kw
-
Temperature control range:
-
0-130℃
-
Certification:
-
ISO9001
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZYTT
-
Power:
-
50KW
-
Dimension(L*W*H):
-
2.75M
-
Weight:
-
4 KG
-
Production Capacity:
-
98%
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Roller width:
-
2000mm
-
Max. Efficient width:
-
1800mm
-
Fabric speed:
-
2~120m/min
-
Tension range:
-
0~60kg
-
Motor power:
-
2 sets * 7.5kw
-
Temperature control range:
-
0-130℃
-
Certification:
-
ISO9001

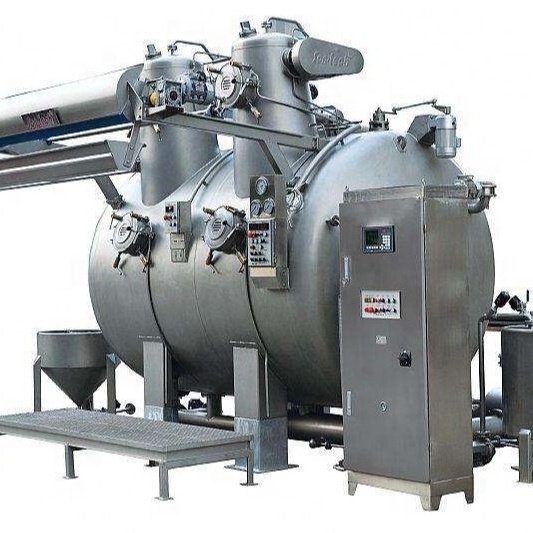

high temperature overflow jet dyeing machine
Main control functions
|
1 , |
Whole machine is dual frequency converter control system, human-computer operation interface |
|
2 , |
Set of constant tension, constant linear speed |
|
3 , |
Functions of manual, automatic, speed up, slow down |
|
4 , |
Automatic head back, automatic record the lines, automatic stop machine, automatic swing function if line is full |
|
5 , |
Whole machine automatic temperature control, technological operation |
|
6, |
Operation screen programmable set, technology storage, automatic identification, automatic alarm
|
Electric appliance and machine layout
|
1 |
Controller |
Omron PLC |
|
2 |
Frenquency converter |
sets of Yaskawa frequency converter , 7.5 KW /set |
|
3 |
Operation interface: |
7 inches Weinview Colorful touch screen |
|
4 |
Motor |
sets of linking type motor reducing gear, 7.5kw /set |
|
5 |
Electrical cabinet |
Stainless steel electric control cabinet |
|
6 |
High temperature vat body |
Vat body is made of Q235B which is 12mm thick, designed pressure 0.4Mpa,designed temperature: 140 ℃ , there is pressure vessel license |
|
7 |
Main cloth roller |
Dia. 325mm, coated with SUS304 |
|
8 |
Bottom cloth guide roller |
Dia. φ 125mm, SUS304 roller |
|
9 |
Upper cloth guide roller |
Dia. φ 100mm, SUS304 roller |
|
10 |
Dyeing tank |
Made of SUS316L |
|
11 |
Tension frame |
Spring type |
|
12 |
Machine frame |
One set of machine frame |
|
13 |
Heating system |
Vat body heating, vessel body directly heating |
|
1 4 |
Circulating pump |
Equipped with a circulating pump |
|
1 5 |
Chemical barrel |
Equipped with a chemical barrel made of S U S304 |
|
16 |
Doffing frame |
O ptionally available |
