- Antireflective glass
- Translucency of normal luminance is increased by 2%
- Module efficiency is increased by 2 %
- Self- cleaning function
- Service life is as long as 25 years
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
12 months
-
Brand Name:
-
XRSOLAR
-
Model Number:
-
XRS2F-100W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
630*585*7mm
-
Product name:
-
Foldable Solar Panel
-
Optimum Operating Voltage (Vmp):
-
12v
-
Optimum Operating Current (Imp):
-
5.56A
-
Unfolding size:
-
1260*585*30mm
-
Folding size:
-
630*585*60mm
-
Application:
-
CAMPING
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
18.5%
-
Warranty:
-
12 months
-
Brand Name:
-
XRSOLAR
-
Model Number:
-
XRS2F-100W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
630*585*7mm
-
Product name:
-
Foldable Solar Panel
-
Optimum Operating Voltage (Vmp):
-
12v
-
Optimum Operating Current (Imp):
-
5.56A
-
Unfolding size:
-
1260*585*30mm
-
Folding size:
-
630*585*60mm
-
Application:
-
CAMPING
-
Certificate:
-
CE
Solar Panel

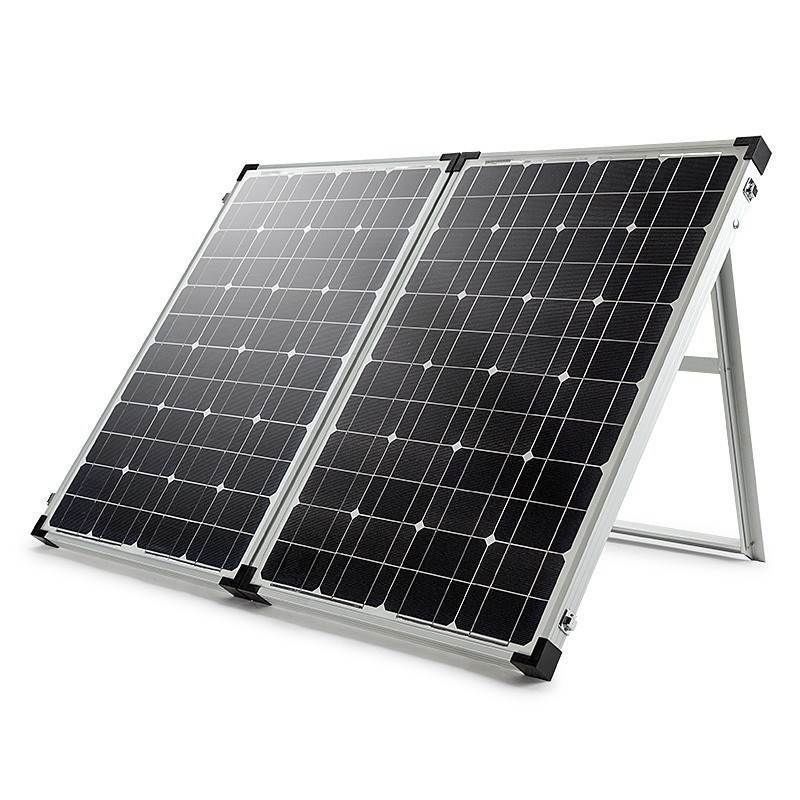

Sunpower Mono solar cell 18v 100W 120w Foldable Solar Panel USB Camping Solar Charger
|
ELECTRICAL PERFORMANCE
|
|
|
|
|
|
|
||||||
|
Module Type
|
XRM2F-
|
|
|
|
|
|
||||||
|
Power output
|
W
|
80
|
100
|
120
|
140
|
180
|
||||||
|
Power output tolerances
|
%
|
0-3
|
|
|
|
|
||||||
|
Voltage at Pmax
|
V
|
17.3
|
17.3
|
17.3
|
17.3
|
18.2
|
||||||
|
Current at Pmax
|
A
|
4.45
|
5.78
|
6.93
|
8.09
|
9.8
|
||||||
|
Open-circuit voltage
|
V
|
21.2
|
21.3
|
21.3
|
21.3
|
21.3
|
||||||
|
Short-circut current
|
A
|
4.7
|
6.12
|
7.35
|
8.57
|
10.4
|
||||||
|
Open Dimension
|
mm
|
1060*510*35
|
1360*530*35
|
1100*84*35
|
1350*700*35
|
1350*770*35
|
||||||
|
Folded Dimension
|
mm
|
530*510*70
|
680*530*70
|
840*550*70
|
700*670*70
|
770*670*70
|
||||||
|
OPERATING CONDITIONS
|
|
|
|
Max. system voltage
|
1000V
|
|
|
Limiting reverse current
|
15A
|
|
|
Operating temperature range
|
- 40℃ to 85 ℃
|
|
|
Max. static load front
|
5400Pa
|
|
|
Max. static load back
|
2400Pa
|
|
|
Max hailstone impact ( diameter /velocity)
|
25mm /23m/s
|
|
|
MECHANICAL CHARACTERISTICS
|
|
|
|
Front cover ( material/ thickness)
|
Low-iron Tempered glass / 3.2mm
|
|
|
Backsheet (color)
|
White / Black
|
|
|
Cell ( quantity / material / dimensions)
|
36/ Monocrystalline silicon / 156*156mm
|
|
|
Frame ( Material / Color)
|
Anodized aluminum alloy / silver
|
|
|
Junction box ( protection degree)
|
>= IP65
|
|
STC: Irradiance 1000 W/m2. Module temperature 25℃. AM=1.5;
Glass
Frame
- Conventional frames
- Silver or black frames are optional
- Boost bearing capability and prolong service life
- Serrated-clip design tensile strength
- Seal-lip designglue injection
Solar Cell
- High Efficiency PV Cells
- Appearance Consistency
- Color sorting ensure consistent appearance on each module
- Anti- PID
Application
