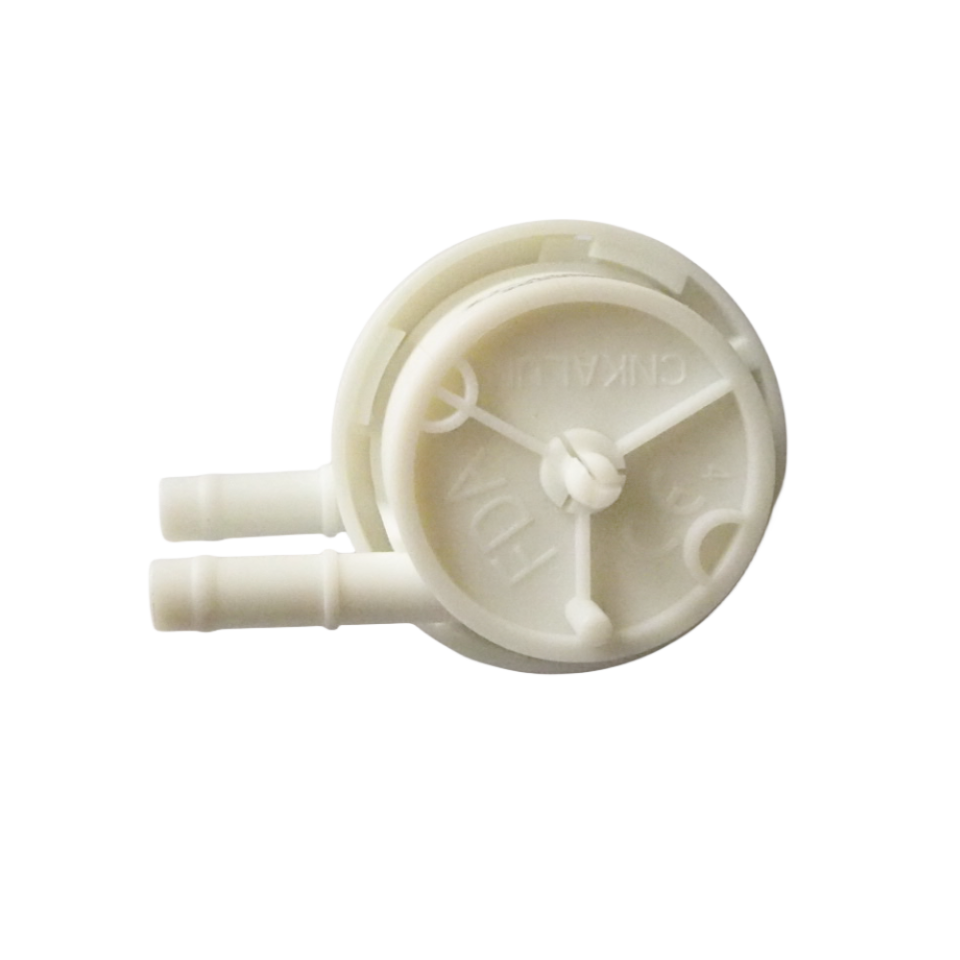

Cnkalun high quality Flow Meter Sensor Liquid Flow Switch For Coffee Machine

Cnkalun high quality Flow Meter Sensor Liquid Flow Switch For Coffee Machine

FOB Reference Price: Get Latest Price

≥5 Pieces

US $1.5

≥1000 Pieces

US $1

≥5000 Pieces

US $0.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: flow meter

Color:: white

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: cnkalun

Model Number:: kj-001

Product Name:: flow meter

Color:: white

FLOW METER FROM CNKALUN

Material for flow Meter

Flow meter body	PBT 30%GF
Connector	3.96mm pitch 3-way connector
Seal	Silicon / NRB / EPDM
Turner	POM
Magnet	SrFeO

Electrical connection specification

Supply voltage	4.5 - 24 VDC
Consumption	5 mA max.
Signal voltage	Taken from Ground.
Leakage current	10μA max.
Signal load	20mA max.
Signal	Square wave
Duty cycle	50%

Technical specification

Flow rate	0.025-2 litre/min. (depending on nozzle size)
Measuring accuracy	±2%
Operating fluid	Water
Operating temperature	-10 to 65 °C
Operating pressure	-1 to 0.3 bar
Mounting	Horizontal position
Connector	ø6.0 mm inlet
	ø6.0 mm outlet
Nozzle size	ø1.0, 1.2, 1.8, 2.0 mm

Measurement specification

Nozzle	Pulses/litre	g/pulse	Min. flow rate at linear start (litres/min)	Max. flow rate (litres/min)	Pressure drop (bar)
Nozzle	Pulses/litre	g/pulse	Min. flow rate at linear start (litres/min)	Max. flow rate (litres/min)	Pressure drop (bar)
ø1.0 mm	2500	0.3788	0.05	0.4023	0.48
ø1.2 mm	2100	0.4525	0.0813	0.5667	0.43
ø1.8 mm	1630	0.5848	0.091	0.9012	0.25
ø2.0 mm	1580	0.6329	0.1396	0.9156	0.21

What does a flow meter do on a coffee machine?

In a coffee machine, the flowmeter is typically used to monitor the water flow rate during the brewing process . It helps to ensure that the correct amount of water is delivered to the coffee grounds, which is essential for achieving the desired strength and flavor of the coffee.

What is a good flow rate for espresso machine?

Espresso machines deliver water from the pump to the group head at a defined flow rate. Clive's technical team advises that the flow rate be 250 milliliters in 25 seconds .

What is the perfect flow time for a double espresso?

between 20 – 30 seconds

The volume of water for each shot should be 1 oz. – so after your double shot has reached 2 oz., stop the shot and check your timer. The ideal brewing time you're looking for is between 20 – 30 seconds – if you're running too long or too short, check your grind, dose and tamp, then adjust it accordingly.
