Quick Details
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
90
-
CRI (Ra>):
-
65-70
-
Input Voltage(V):
-
230V/240V
-
Lamp Luminous Flux(lm):
-
110000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40℃-50℃
-
Product name:
-
Diesel Mobile Light Tower
-
Certificate:
-
CE/ISO9001
-
Lamp Style:
-
customized
-
Engine:
-
Kubota D1105/50Hz 6kw/230V
-
Mast Height:
-
Hydraulic Mast/customized
-
tank fuel/up-time:
-
25L/15h
-
Trailer tyre rim:
-
185/70 R14
-
Tow hitch:
-
Ball type/O ring
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SORNNE
-
Model Number:
-
MO-520L
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
90
-
CRI (Ra>):
-
65-70
-
Input Voltage(V):
-
230V/240V
-
Lamp Luminous Flux(lm):
-
110000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40℃-50℃
-
Product name:
-
Diesel Mobile Light Tower
-
Certificate:
-
CE/ISO9001
-
Lamp Style:
-
customized
-
Engine:
-
Kubota D1105/50Hz 6kw/230V
-
Mast Height:
-
Hydraulic Mast/customized
-
tank fuel/up-time:
-
25L/15h
-
Trailer tyre rim:
-
185/70 R14
-
Tow hitch:
-
Ball type/O ring
product display
|
Product name
|

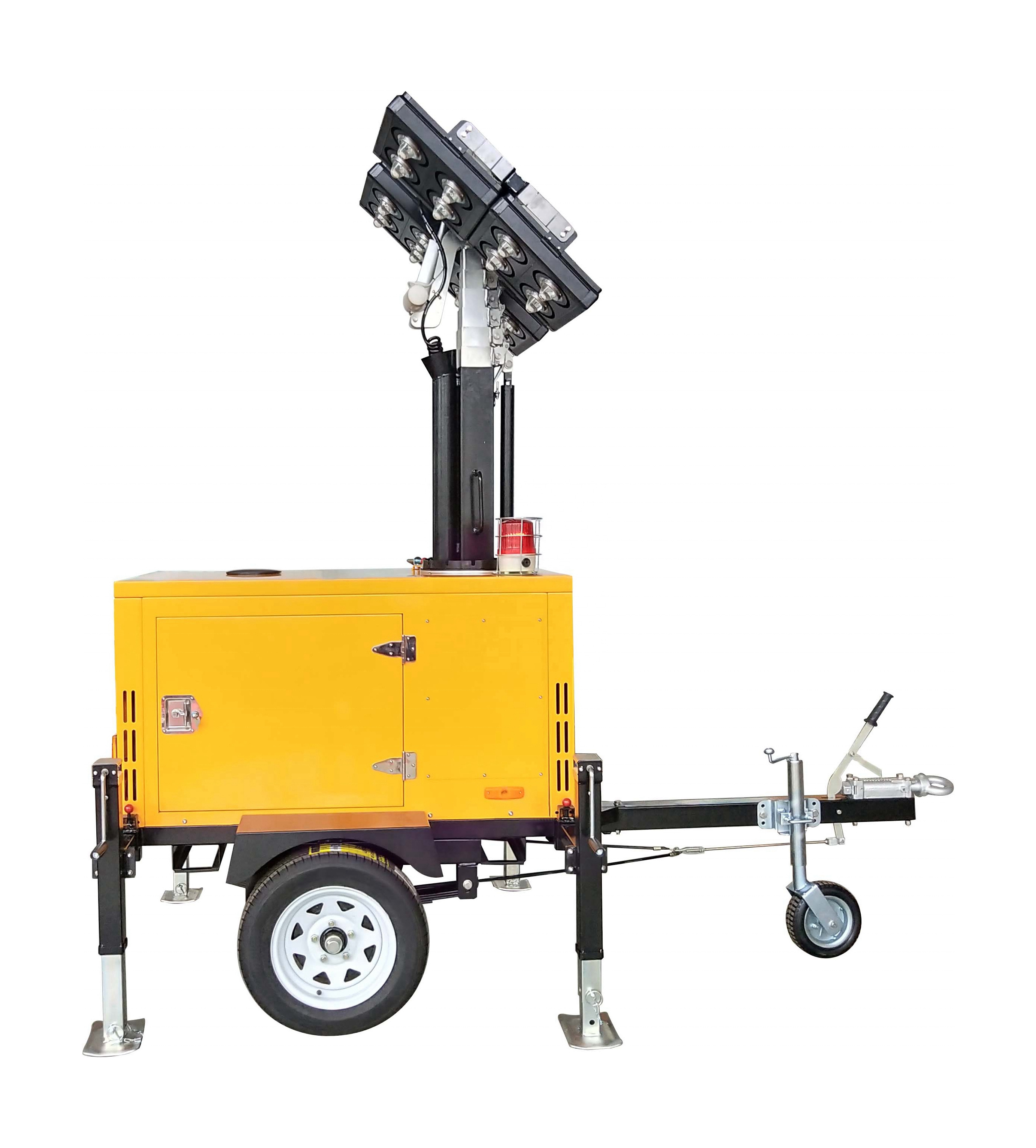

Diesel portable generator with flood lights hydraulic lighting tower
|
|
Size
|
2950*1450*2950
|
|
Weight
|
1050kgs
|
|
Loading 20GP/40HQ
|
8set/16set
|
Features:
1. High brightness, wide range of lighting: The use of 4 1000W metal halide lamp, lamppost after 10 meters rise in lighting
coverage of up to 120-150 meters. The overall lighting far and near, lighting distance, exposure area.
2. strong capacity, economic and environmental protection: lighthouse configuration of high-quality international well-known brand
of generating units, powerful. Damping between the unit and the base design to reduce vibration, make the operation more secure
and efficient, energy efficient.
3. Omni-directional, multi-angle projection: the pole can be rotated 360 degrees in the horizontal direction adjustment, 360
degree exposure without dead head can be arbitrarily change the projection angle within the range of 0 degrees to 90 degrees in
the vertical direction.
4. User-friendly design, simple operation: control system integration, control switch, control display, indicating instrument all
integrated with the same panel to facilitate operator operation and real-time monitoring Fully automatic operation design, engine
start, light pole lift, hydraulic foot Recycling, lighting switches are all independent and automatic control, easy and quick
operation.
5. safe and reliable, easy to transport: hydraulic foot expansion area, strong support, coupled with advanced integrated machine
weight design, has good wind resistance, to ensure reliable work under the 8 gale.
6. A variety of mobile methods, the trailer system can be used, but also the use of forklifts, cranes to move and transport.
1. High brightness, wide range of lighting: The use of 4 1000W metal halide lamp, lamppost after 10 meters rise in lighting
coverage of up to 120-150 meters. The overall lighting far and near, lighting distance, exposure area.
2. strong capacity, economic and environmental protection: lighthouse configuration of high-quality international well-known brand
of generating units, powerful. Damping between the unit and the base design to reduce vibration, make the operation more secure
and efficient, energy efficient.
3. Omni-directional, multi-angle projection: the pole can be rotated 360 degrees in the horizontal direction adjustment, 360
degree exposure without dead head can be arbitrarily change the projection angle within the range of 0 degrees to 90 degrees in
the vertical direction.
4. User-friendly design, simple operation: control system integration, control switch, control display, indicating instrument all
integrated with the same panel to facilitate operator operation and real-time monitoring Fully automatic operation design, engine
start, light pole lift, hydraulic foot Recycling, lighting switches are all independent and automatic control, easy and quick
operation.
5. safe and reliable, easy to transport: hydraulic foot expansion area, strong support, coupled with advanced integrated machine
weight design, has good wind resistance, to ensure reliable work under the 8 gale.
6. A variety of mobile methods, the trailer system can be used, but also the use of forklifts, cranes to move and transport.
Product Application
Our product widely used in the project of highway ,public security.mining industry .petrochemical ,railway and emergency accident , Especially the solar LED tower and Anti glare spherical vehicle is our main focus product , we set the majority service net in European, US and middle east
Product packaging
LCL shipping FCL shipping
All the spare parts for the solar light tower will be put into onecomposite wooden box. the wooden case will be around 9CBM and the weight would be more than 1200KG. Pls confirmed with consignee if they have proper forklift for unloading
Full container shipping, it will be packaged by pallets, the mobile solar light will be locked on the pallets, the trailer body will be protected by bubble plastic. Meanwhile we will protect solar panels from damage by EPE specially. Make sure the solar panels are properly protected.
