Quick Details
-
Type:
-
DPDT Relay Module, Standard
-
Place of Origin:
-
China
-
Brand Name:
-
Original
-
Product name:
-
DR25E01
-
Package:
-
Standard
-
MOQ:
-
1pcs
Quick Details
-
Model Number:
-
DR25E01
-
Mounting Type:
-
Standard
-
Description:
-
DPDT Relay Module
-
Type:
-
DPDT Relay Module, Standard
-
Place of Origin:
-
China
-
Brand Name:
-
Original
-
Product name:
-
DR25E01
-
Package:
-
Standard
-
MOQ:
-
1pcs
Product Description

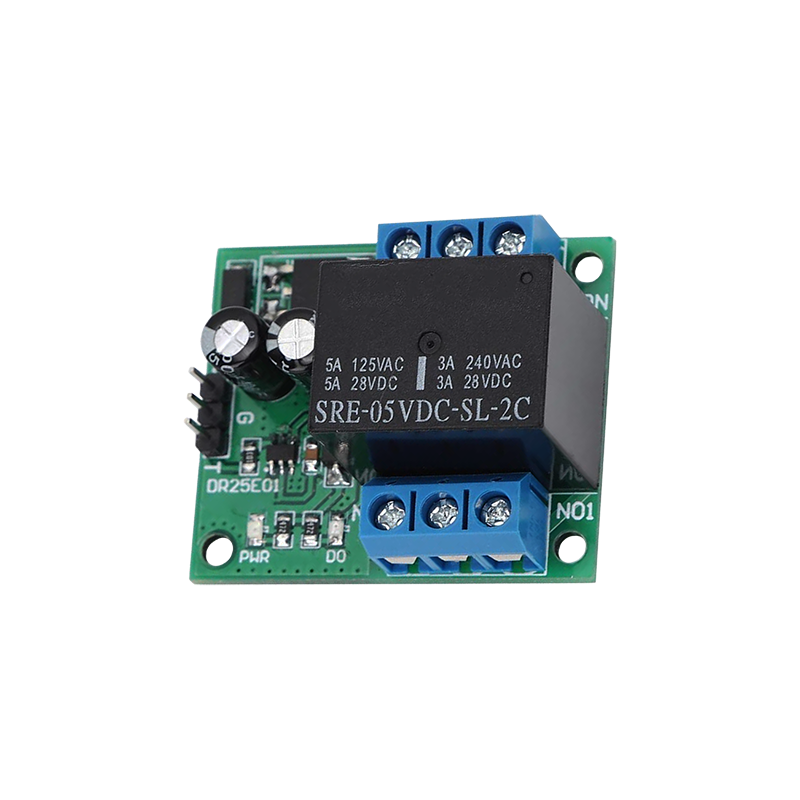

DR25E01 DC 5V 6V 9V 12V 24V 3-5A Flip-Flop Latch DPDT Relay Module Bistable Self-locking Switch
Feature
Double Pole Double Throw: This DPDT relay module is a self-latching (bistable) double pole double throw relay. Once triggered, the relay is closed, and when triggered again, the relay is disconnected.
Indicator Light: This DPDT relay module has a power indicator light and a reverse polarity indicator light, which is convenient for you to distinguish and observe better when you are using it.
Low-pulse Control: The low-pulse control method of this DPDT relay module can ensure your own safety, safety and reliability when you use this product.
Excellent Material: This DPDT relay module adopts high-quality electronic components, with stable and reliable performance. There are 2 input voltages to choose from: DC 5V (5V version), DC 6-24V (12V version).
Operation Method: This DPDT relay module turns off the relay when power is applied. Click the trigger port (T port) to close the relay, click the relay to release it again, and so on.
Specification
Item Type: DPDT Relay Module
Input Voltage: DC 5V (5V version), DC 6-24V (12V version) (optional)
Module Working Current: Forward 2MA, reverse 60-70MA
Load Current: 5A maximum
Control Mode: Low pulse control
Size: Approx. 39.5 x 33.3 x 23.3mm / 1.6 x 1.3 x 0.9inch
Pin Description: V: Power positive G: Power negative terminal and trigger signal ground terminal; T: Trigger signal input (0.2-2 seconds low pulse). NO1: Relay normally open port COM1: Relay common port NC1: Relay normally closed port NO2: Relay normally open port COM2: Relay common port NC2: Relay normally closed port How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull in the relay, click the relay to release again, and so on.
Package List
1 x DPDT Relay Module
Specification
|
item
|
value
|
|
Model Number
|
DR25E01
|
|
Type
|
Other
|
|
Place of Origin
|
China
|
|
Brand Name
|
Standard
|
|
Chipset
|
Standard
|
|
Application
|
Standard
|
|
Shipping by
|
Buyer's choice
|
