Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
demma
-
Voltage:
-
380V or Customized
-
Dimension(L*W*H):
-
6300*700*1300mm
-
Weight:
-
2500 kg
-
Marketing Type:
-
New Product
-
Name:
-
Gusset Plate Roll Forming Machine
-
Color:
-
as your request
-
Shaft diameter:
-
50mm
-
Chain:
-
0.6 inches
-
Number of lanes of molding machine:
-
18 rows
-
Hydraulic station oil pump:
-
3KW
-
Length determination accuracy:
-
±2mm
-
Electric control box:
-
PLC control system
-
Certificate:
-
CE, ISO
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
demma
-
Voltage:
-
380V or Customized
-
Dimension(L*W*H):
-
6300*700*1300mm
-
Weight:
-
2500 kg
-
Marketing Type:
-
New Product
-
Name:
-
Gusset Plate Roll Forming Machine
-
Color:
-
as your request
-
Shaft diameter:
-
50mm
-
Chain:
-
0.6 inches
-
Number of lanes of molding machine:
-
18 rows
-
Hydraulic station oil pump:
-
3KW
-
Length determination accuracy:
-
±2mm
-
Electric control box:
-
PLC control system
-
Certificate:
-
CE, ISO
Product Description

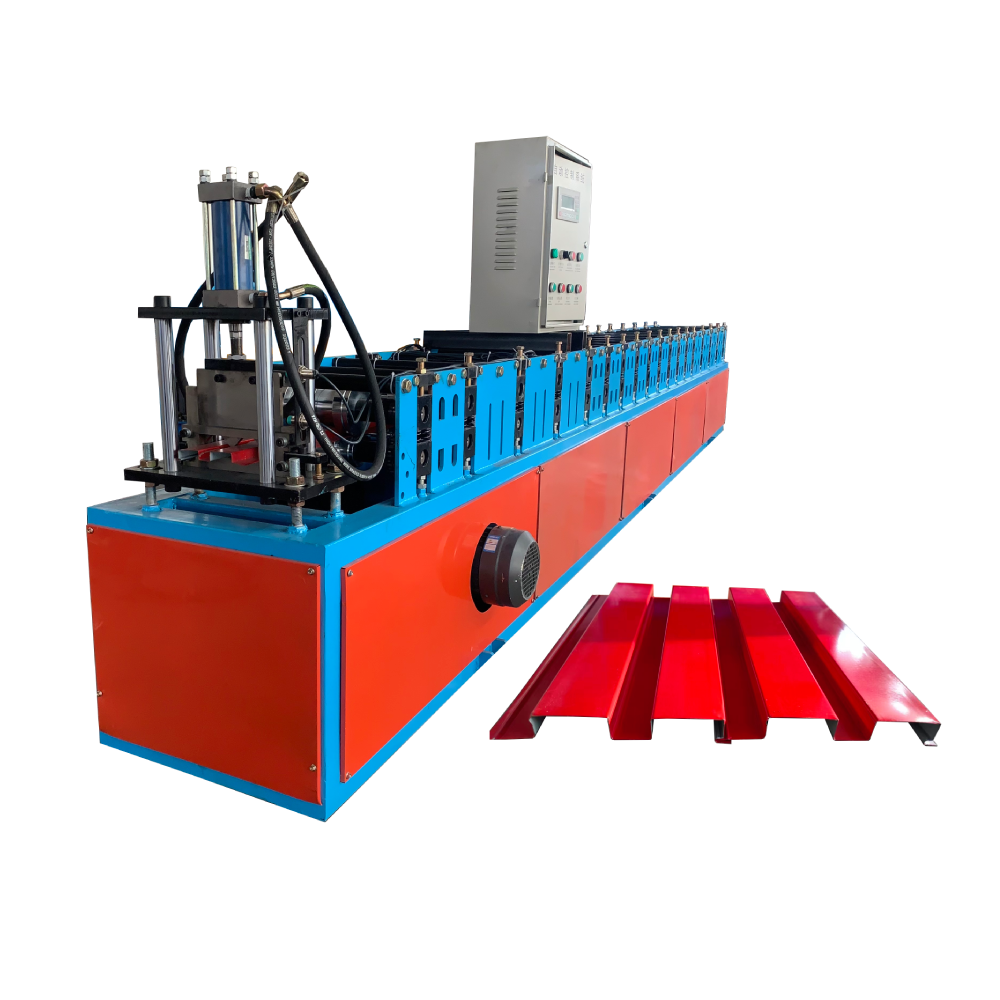

Gusset Plate Roll Forming Machine
Gusset plate roll forming machine ,It features a buckle style splicing design, seamless splicing, convenient installation, and high-end atmosphere. Steel Metal Gusset Plate Roll Forming Machine can be customized designed and manufactured, the gusset plate normally used as commercial space background walls, outdoor door heads, indoor and outdoor suspended ceilings for decoration, OEM manufactured is acceptable.
The following are the specifications of the two most common shapes we provide, and the specific shapes can be customized according to customer requirements (punching is optional)
.
-
EQUIPMENT PROCESS SKETCH -
Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table
Detail Images
consumption.
Cutting system
|
Main Specifications Of Gusset Plate Roll Forming Machine:
|
|
|
|
|
||||
|
1.
|
Product name
|
Gusset Plate Roll Forming Machine
|
|
|
|
|||
|
2.
|
Frame materials
|
350H steel
|
|
|
|
|||
|
3.
|
Shaft diameter
|
50mm
|
|
|
|
|||
|
4.
|
Forming roller
|
18row
|
|
|
|
|||
|
5.
|
Forming shaft
|
Material 45# quenched and tempered
|
|
|
|
|||
|
6.
|
Max.speed
|
0-15m/min
|
|
|
|
|||
|
7.
|
Feeding width
|
As Required
|
|
|
|
|||
|
8.
|
Cutting system
|
Hydraulic Cutting
|
|
|
|
|||
|
9.
|
Main engine power
|
4KW with cycloidal reducer
|
|
|
|
|||
|
10.
|
Voltage
|
380V 50 Hz 3 Phase or as your requirements
|
|
|
|
|||
|
11.
|
Hydraulic oil
|
40# hydraulic oil
|
|
|
|
|||
|
12.
|
Material of cutting table
|
Cr 12 mould steel with quenched treatment
|
|
|
|
|||
|
13.
|
Applicable industries
|
Commercial space background walls, outdoor door heads, indoor and outdoor suspended ceilings for decoration
|
|
|
|
|||
