Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BESTICE
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
5600*1800*1300mm
-
Weight:
-
3300 kg
-
Max roll diameter:
-
1400mm
-
Cutting length:
-
20-1200mm
-
Max cutting speed:
-
200cuts/min
-
Cutting precision:
-
±0.2mm
-
Product name:
-
High Speed Paper Sheeter Cutting Machine
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
100 m/min
-
Max. workable width:
-
1100mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BESTICE
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
5600*1800*1300mm
-
Weight:
-
3300 kg
-
Max roll diameter:
-
1400mm
-
Cutting length:
-
20-1200mm
-
Max cutting speed:
-
200cuts/min
-
Cutting precision:
-
±0.2mm
-
Product name:
-
High Speed Paper Sheeter Cutting Machine
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE ISO
Product Overview

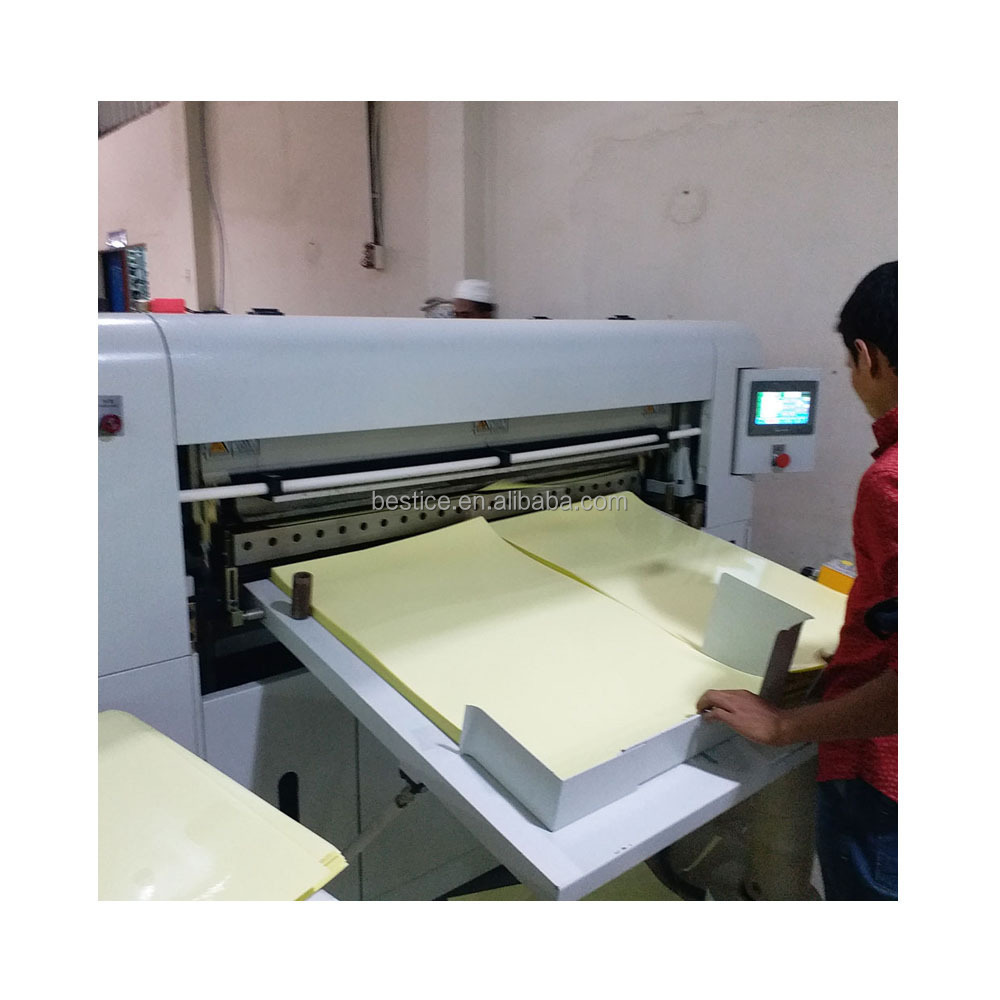

Autoamtic roll to sheet cutting slitting machine for A2 A3 A4 paper
The roll to sheet cutting machine is suitable for horizontal and longitudinal cutting big jumbo roll materials, such as paper, laminated paper, printed paper, adhesive sticker, non-woven fabric and plastic film, etc. The machine is widely apply to
paper products processing industry, printing and packaging industry.
Feature
1. The machine adopt PLC system to control the cutting length with auto counting and alarming stop function.
2. Separated Unwinder stand adopts auto loading system that liberate the workforce.
3. Machine comes with slitting function and equipped with trim reject fan to remove the slit edge of web.
4. Highly cutting precision with low noise that is widely apply to paper products processing industry, printing and packaging industry.
PRODUCT SPECIFICATIONS
|
Model
|
HQJ-800
|
HQJ-1100
|
HQJ-1400
|
HQJ-1600
|
|
Max. cutting width
|
800mm
|
1100mm
|
1400mm
|
1600mm
|
|
Max unwinding diameter
|
1400 mm
|
1400mm
|
1400mm
|
1400mm
|
|
Cutting length
|
20-1200mm
|
20-1200mm
|
20-1200mm
|
20-1200mm
|
|
Cutting speed
|
50-200
cuts per minute
|
50-200
cuts per minute
|
50-200
cuts per minute
|
50-200
cuts per minute
|
|
Cutting precision
|
±0.2mm
|
±0.2mm
|
±0.2mm
|
±0.2mm
|
|
Cutting thickness
|
30-500g/m2
|
30-500g/m2
|
30-500g/m2
|
30-500g/m2
|
|
Stacking height
|
Max.50mm
|
Max.50mm
|
Max.50mm
|
Max.50mm
|
|
Power
|
8.0kw
|
8.0kw
|
10kw
|
14kw
|
|
Weight
|
3000kg
|
3300kg
|
3800kg
|
4500kg
|
|
Dimension
|
5050×1500×1850mm
|
5050×1900×1850mm
|
5050×2200×1850mm
|
5050×2500×1850mm
|
FAQ
1) Can I custom this machine?
Yes, optional parts can be chosen if you need, COST EXTRA.
2) Does your packing safe?
Yes, our packing is export standard wooden case suitable for long time ocean shipping
3) What is your payment terms?
30% T/T as deposit and 70% payment before shipment, or 100% irrevocable L/C at sight, or usance L/C
4) What is your delivery?
About 20-45 wording days after deposit.
5) Can I get guarantee?
Yes, we supply 1 year guarantee for all machines.
Yes, optional parts can be chosen if you need, COST EXTRA.
2) Does your packing safe?
Yes, our packing is export standard wooden case suitable for long time ocean shipping
3) What is your payment terms?
30% T/T as deposit and 70% payment before shipment, or 100% irrevocable L/C at sight, or usance L/C
4) What is your delivery?
About 20-45 wording days after deposit.
5) Can I get guarantee?
Yes, we supply 1 year guarantee for all machines.
Why Choose Us
Bestice Machinery understand how important it is for our customers to choose the appropriate and cost-effective products. We are ready to help select and solutions. Please tell us what you need, we will identify the most suitable for you.
On sale
For all your request, we will supply best suggestion and solution on time. Any time, you have any query, please feel free to
contact us. You could contact us by e-mail, or by Skype, Whatsup, or Wechat and QQ. Welcome you to visit our factory to check the machine. We will pick you up from airport or train station.
After-sale service
Problems, assembly or operation? Please tell us. we will send you the relevant user manuals or instructions immediately to you. We have video guidance or instructions as well. If all these are not working, please feel free to contact us directly. Send us an email or by Skype, Whatsup, Wechat, or QQ.
QC
All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.
Warranty
The machine guarantee is 1 year and within 12 months, if any spare parts damaged ( not broken by person ), we will offer the spare parts freely. But the buyer shall afford the courier charge. The electrical components, the loss by nature and artificial damage created by unprofessional operation, not in maintenance scope.
OEM
All products are available on request, with or without logo.If you need OEM service with your own logo or products, please let us know. If you have any other specific requirements, please do not hesitate to contact us.
