Factory direct sales custom-made 3.7V 7.4V 11.1V various sizes and various capacity polymer battery packs.If you need batteries of other sizes and capacities, you are welcome to contact us.
- Product Details
- {{item.text}}
Quick Details
-
Battery type:
-
Lithium Ion Battery
-
Nominal Voltage:
-
48V
-
Nominal Capacity:
-
20Ah
-
BMS:
-
Built-in
-
Dimension:
-
240*58*66mm
-
Battery power:
-
800W
-
Charge mode:
-
CC/CV
-
Cycle life:
-
≥1000 Times
-
Features:
-
High Energy Density
-
Warranty:
-
12 Months, 12 months
-
Certification:
-
CE
-
Weight:
-
About 1.8Kg
Quick Details
-
Model Number:
-
48V 20Ah
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTK
-
Battery type:
-
Lithium Ion Battery
-
Nominal Voltage:
-
48V
-
Nominal Capacity:
-
20Ah
-
BMS:
-
Built-in
-
Dimension:
-
240*58*66mm
-
Battery power:
-
800W
-
Charge mode:
-
CC/CV
-
Cycle life:
-
≥1000 Times
-
Features:
-
High Energy Density
-
Warranty:
-
12 Months, 12 months
-
Certification:
-
CE
-
Weight:
-
About 1.8Kg

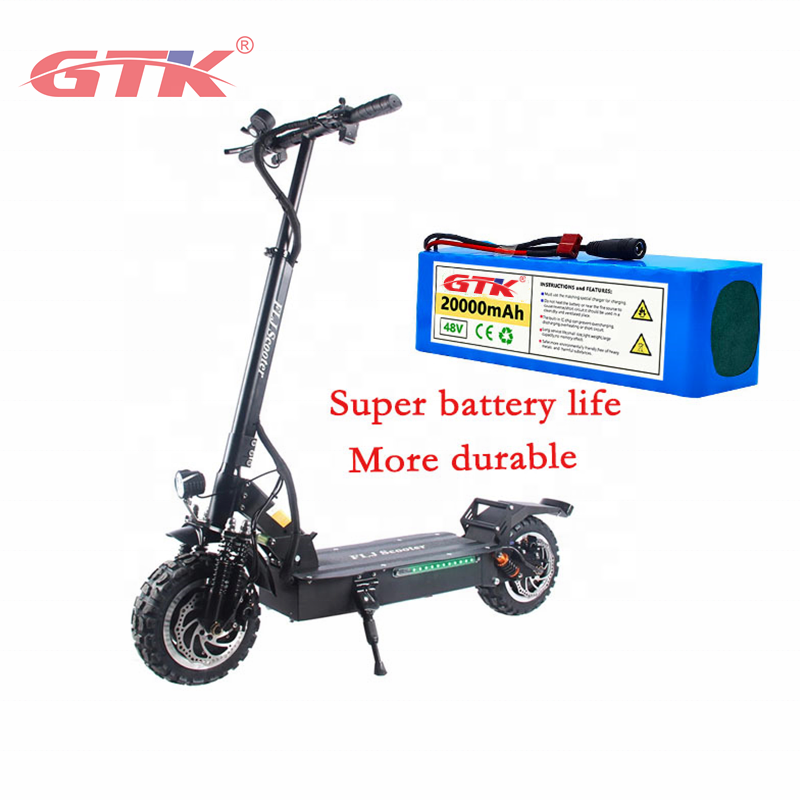

GTK 48V 20AH 18650 13S3P high power 800W electric bicycle battery electric bicycle battery 48V 20ah lithium battery with BMS
Specification
Battery specification: 48V/20Ah
Nominal voltage: 48V
Nominal capacity: 20Ah
Cell combination:13P3S
Discharge cut-off voltage:
36.4V (2.8 ± 0.06V)
Full-Charging voltage: 54.6V (4.2 ± 0.06V)
Source resistance:≤40mΩ
Standard charging
: constant current and constant voltage CC-CV
Charging temperature: 0~45 °C
Discharging temperature: -20~65°C
Cycle life: ≥1000 times
Dimension: 240*58*66mm
Weight: About 1.8Kg
Warranty: 12 months
Battery power:800W
Battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection
Products Description
If you need to be equipped with a charger, we provide a variety of plugs for your choice.
Applications
Suitable for less than 1000W all 48V DC equipment. E-bike, scooters, etc.
Features and advantages
①Excellent protection mechanism to keep you away from danger：BMS built inside to balance protect the battery.
②High working voltage platform.
③Good performance at high temperature and high temperature resistance.
④High energy density, small body, large capacity, easy to carry.
⑤Environmentally friendly batteries, will not burden the environment.
Packing and shipping
Our packaging is all waterproof and shock-absorbing packaging to protect your goods safely to home.
