Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Type:
-
Construction plastic formwork
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ADTO
-
Model Number:
-
Plastic column formwork
-
Name:
-
Precast plastic column mould concrete pillar mold for sale
-
Size:
-
Largest panel size is 1200*600mm, it can be customize
-
Thickness:
-
70mm, or according to customer drawing size
-
Color:
-
Black
-
Feature:
-
Adjustable size, reusable, quick assemble
-
Reuses times:
-
100 times
-
Permitted fresh concrete pressure:
-
up to 60KN/SQM
-
Storage:
-
It can be safely and conveniently stored in a damp and wet environment
-
Keywords:
-
plastic concrete formwork
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Others
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Type:
-
Construction plastic formwork
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ADTO
-
Model Number:
-
Plastic column formwork
-
Name:
-
Precast plastic column mould concrete pillar mold for sale
-
Size:
-
Largest panel size is 1200*600mm, it can be customize
-
Thickness:
-
70mm, or according to customer drawing size
-
Color:
-
Black
-
Feature:
-
Adjustable size, reusable, quick assemble
-
Reuses times:
-
100 times
-
Permitted fresh concrete pressure:
-
up to 60KN/SQM
-
Storage:
-
It can be safely and conveniently stored in a damp and wet environment
-
Keywords:
-
plastic concrete formwork
Product Description
ADTO plastic formwork is a new energy-saving and green building construction product for wall, column, door, windows, beam concrete forming.
Main Features & Advantages :
- Light Weigh : just 1 0 Kg , it can be handled quickly on site without having to use of cranes or other mechanical lifting devices.
- Fast : Light and easy to assemble, it can be installed by a single person.
- Modular : All elements are based on 60cm long and only the elements necessary for the pour are used.
- Reusable : ADTO Plasitc formwork is cost effective as it can be reused more than 100 times when properly used and maintained.
- Adjustable : Adjustable modular column size as you want.
- Dismantling : Concrete doesn't not stick to plastic; dismantling is extremely easy, the forms can be cleansed using just a little water, without any need of detergent.
- Storage : ADTO Plasitc formwork can be safely and conveniently stored in damp and wet environment.
| Module No. | Dimensions(mm) | Weight(KG) |
| ADTO03JMSM0001 | 1200*600*70mm | 10.150 |
| ADTO03JMSM0002 | 250*600*70mm | 2.530 |
| ADTO03JMSM0003 | 200*600*70mm | 2.110 |
| ADTO03JMSM0004 | 150*600* 70mm | 1.650 |
| ADTO03JMSM0005 | 100*600*70mm | 1.380 |
| ADTO03JMSM0009 | 600*200*200mm | 3.580 |
| ADTO03JMSM0010 | 250 200*200mm | 1.780 |
| ADTO03JMSM0011 | 200*200*200mm | 1.630 |
| ADTO03JMSM0013 | 600*100*50mm | 2.170 |
| ADTO03JMSM0017 | 600*70*10mm | 0.270 |
| ADTO03JMSM0018 | 600*70*20mm | 0.390 |
| ADTO03JMSM0019 | 750*730*70mm | 8.600 |

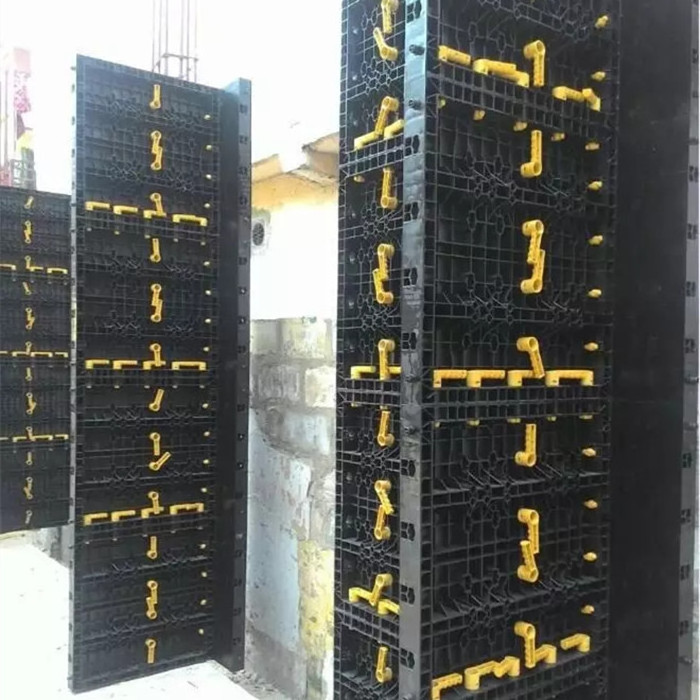

Project reference
Our plastic formwork is high quality, it can be widely used in many area, it is efficient, saving labor and material, safety and environmental protection.
