Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Input Voltage:
-
100-240VAC
-
Operation Frequency:
-
2.4
-
certification:
-
zigbee 3.0
-
Dimmer DIMENSIONS:
-
45.5x45x20.3mm
-
Compatible SYSTEM:
-
all zigbee 3.0 device
-
Control color:
-
single color
-
Manual buttons:
-
dim/zones
-
Product type:
-
leading or trialing edge
-
push:
-
push dim compatible
-
Voltage:
-
220V
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
n/a
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Input Voltage:
-
100-240VAC
-
Operation Frequency:
-
2.4
-
certification:
-
zigbee 3.0
-
Dimmer DIMENSIONS:
-
45.5x45x20.3mm
-
Compatible SYSTEM:
-
all zigbee 3.0 device
-
Control color:
-
single color
-
Manual buttons:
-
dim/zones
-
Product type:
-
leading or trialing edge
-
push:
-
push dim compatible
-
Voltage:
-
220V

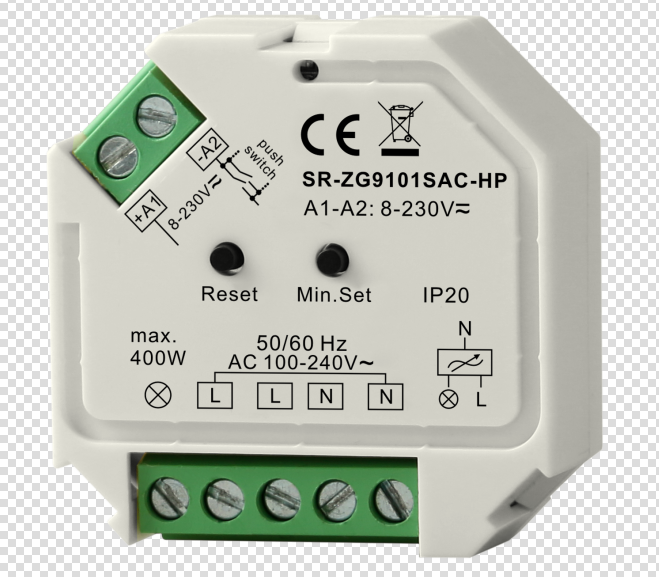

AC Phase Cut ZigBee Dimmer Zigbee 3.0 Triac Dimmer Switch 400W driver
-
ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads and capacitive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge version are available for choosing
• Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Can be controlled by universal 8-230V input single wire push switch
• Mini Size, Easy to be Installed into a standard 86*86mm wall box
• Radio Frequency : 2.4GHz
Zigbee 3.0 Triac Dimmer Switch 400W driver
