Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BestScope
-
Model Number:
-
BS-3025T-ST1
-
Eyepiece:
-
WF10X/ 20mm
-
Zoom objective:
-
0.7X-4.5X
-
Zoom Ratio:
-
1:6.3
-
Working Distance:
-
100mm
-
Head Mount:
-
76mm
-
Focusing Arm:
-
Coarse focusing, focusing range 50mm
-
Pillar Stand:
-
ST1 single arm universal stand
Quick Details
-
Warranty:
-
3 years
-
Theory:
-
Stereo Microscope
-
Drawtube:
-
Trinocular
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BestScope
-
Model Number:
-
BS-3025T-ST1
-
Eyepiece:
-
WF10X/ 20mm
-
Zoom objective:
-
0.7X-4.5X
-
Zoom Ratio:
-
1:6.3
-
Working Distance:
-
100mm
-
Head Mount:
-
76mm
-
Focusing Arm:
-
Coarse focusing, focusing range 50mm
-
Pillar Stand:
-
ST1 single arm universal stand

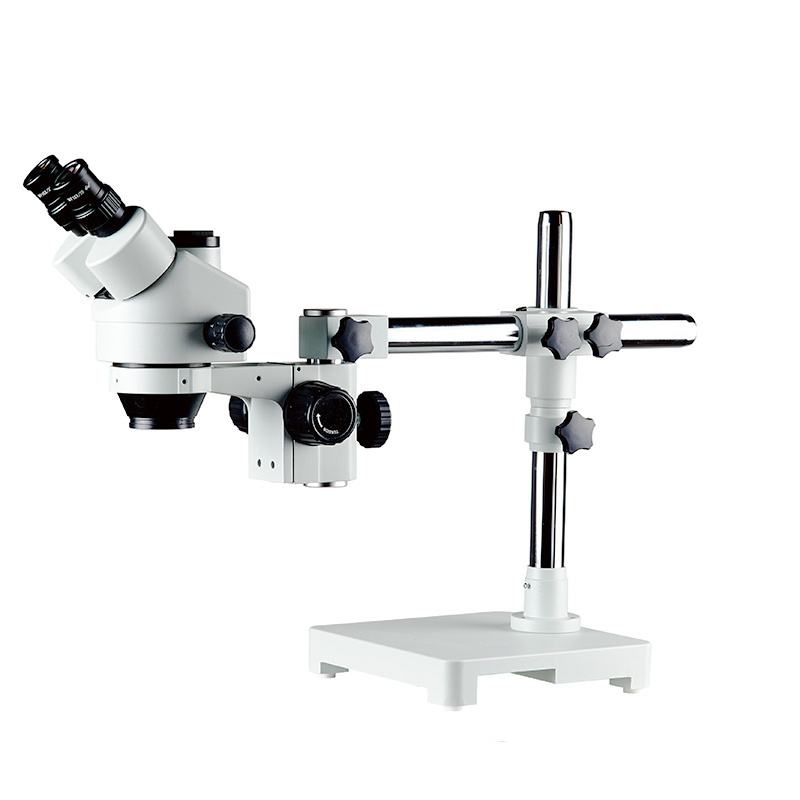

BS-3025 series Stereo Zoom Microscopes offer sharp 3D images which are very clear throughout the zoom range. These microscopes are very popular and cost effective. Optional eyepieces and auxiliary objectives can expand magnification range and working distances.Cold light and ring light can be chosen for this microscope.
1. 7×-45× zoom magnification power with sharp images, can be extended to 3.5×-270× with optional eyepiece and auxiliary objective.
2. High eyepoint WF10×/20mm eyepiece.
3. 100mm Long working distance.
4. Ergonomic design, sharp image, wide viewing field, high depth of field and easy to operate.
5. Ideal instrument in education, medical and industrial field.
2. High eyepoint WF10×/20mm eyepiece.
3. 100mm Long working distance.
4. Ergonomic design, sharp image, wide viewing field, high depth of field and easy to operate.
5. Ideal instrument in education, medical and industrial field.
BS-3025 series microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing,and in the medical, forensic science and veterinary industries. The microscopes also can be used for circuit board repair and inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, mobile phone repair and inspection of small parts.
|
Item
|
Specification
|
|
BS-3025 B-ST1
|
BS-3025T-ST1
|
BS-3025B-ST2
|
BS-3025 T-ST2
|
|
|
Viewing Head
|
Binocular head, inclined at 45°, Interpupillary Distance 54-76mm, diopter adjustment for both tubes, 30mm tube
|
|
●
|
|
●
|
|
|
|
|
Trinocular head, inclined at 45°, Interpupillary Distance, 54-76mm, 2:8, diopter adjustment for both tubes, 30mm tube
|
|
|
●
|
|
●
|
|
|
Eyepiece
|
WF10×/ 20mm eyepiece (micrometer is optional)
|
|
●
|
●
|
●
|
●
|
|
|
|
WF15×/15mm eyepiece (micrometer is optional)
|
|
○
|
○
|
○
|
○
|
|
|
|
WF20×/10mm eyepiece (micrometer is optional)
|
|
○
|
○
|
○
|
○
|
|
|
|
WF25×/9mm eyepiece
|
|
○
|
○
|
○
|
○
|
|
|
|
WF30×/8mm eyepiece
|
|
○
|
○
|
○
|
○
|
|
|
Objective
|
Zoom objective
|
0.7×-4.5×
|
●
|
●
|
●
|
●
|
|
|
|
Auxiliary objective
|
2×, W.D.: 30mm
|
○
|
○
|
○
|
○
|
|
|
|
|
1.5×, W.D.: 45mm
|
○
|
○
|
○
|
○
|
|
|
|
|
0.75×, W.D.: 116mm
|
○
|
○
|
○
|
○
|
|
|
|
|
0.7×, W.D.: 113mm
|
○
|
○
|
○
|
○
|
|
|
|
|
0.5×, W.D.: 165mm
|
○
|
○
|
○
|
○
|
|
|
|
|
0.3×, W.D.: 287mm
|
○
|
○
|
○
|
○
|
|
|
Zoom Ratio
|
1:6.3
|
|
●
|
●
|
●
|
●
|
|
|
Working Distance
|
100mm
|
|
●
|
●
|
●
|
●
|
|
|
Head Mount
|
76mm
|
|
●
|
●
|
●
|
●
|
|
|
Illumination
|
LED ring light(LED-56A, LED-64, LED-144A etc.)
|
|
○
|
○
|
○
|
○
|
|
|
|
Cold light source
|
|
○
|
○
|
○
|
○
|
|
|
Focusing Arm
|
Coarse focusing, focusing range 50mm
|
|
●
|
●
|
●
|
●
|
|
|
Pillar Stand
|
ST1 single arm universal stand, no illumination, can expand the operating range and observe objects in any direction.
Vertical column height: 380mm Column diameter: φ32mm Horizontal movement: 235mm Base: 230x230x40mm With FA1 coarse focusing arm(76mm mounting size) |
|
●
|
●
|
|
|
|
|
|
ST2 double arm universal stand, no illumination, can expand the operating range and observe objects in any direction.
Vertical column height: 380mm Column diameter: Ф32mm Horizontal movement: 235mm Base: 210x260x50mm With FA1 coarse focusing arm(76mm mounting size) |
|
|
|
●
|
●
|
|
|
C-Mount
|
0.35× C-mount
|
|
|
○
|
|
○
|
|
|
|
0.5× C-mount
|
|
|
○
|
|
○
|
|
|
|
1× C-mount
|
|
|
○
|
|
○
|
|
|
Package
|
1set/1carton, 49.5cm*48.5cm*29cm, Net/Gross Weight: 19/20kg
|
|
●
|
●
|
|
|
|
|
|
1set/1carton, 49.5cm*48.5cm*29cm, Net/Gross Weight: 24/25kg
|
|
|
|
●
|
●
|
|
Note: ● Standard Outfit, ○ Optional
